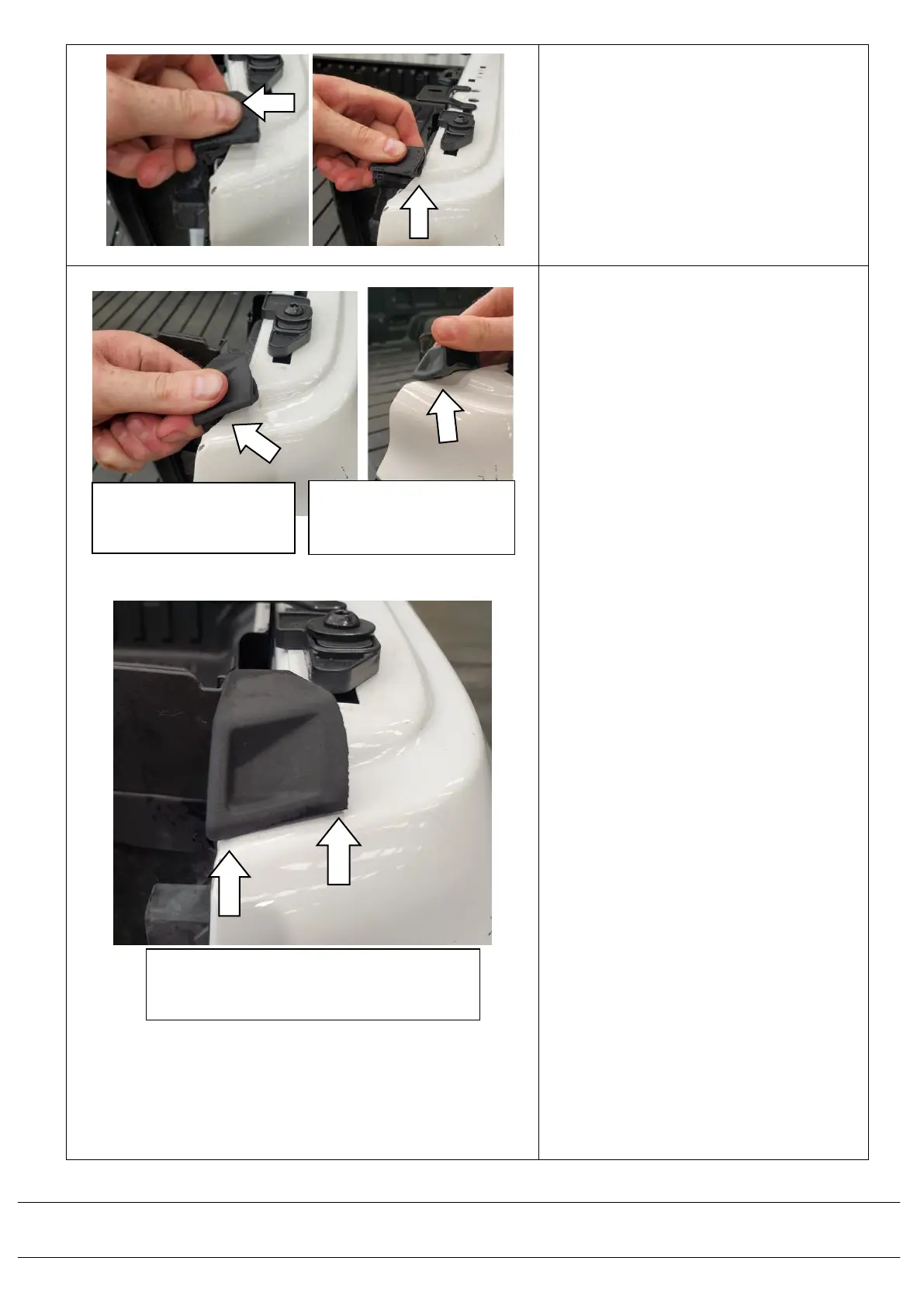

2.3) Angle back the corner of the
rubber clipping lip feature of
the rubber block into the hole
in the tub and slide the recess
over sheet metal edge.
2.4) Work the clipping lip of rubber
block under the tub sheet
metal top skin, by pushing the
block back and forwards and
pushing it inwards.
2.5) Check the clipping lip is fully
engaged in cavity by lifting the
block up and checking.
2.6) Make sure rubber block is
sitting neatly in cavity. Bottom
face of block should be sitting
flat on the tub lip.
Do both sides, using
668PE057L for the left-hand
side.
WORK RUBBER BLOCK
UNDER TUB SHEET
METAL
CHECK CLIPPING LIP IS
UNDER TUB SHEET
METAL
CHECK BLOCK IS SITTING FLAT AND
NEAT IN PLACE ON THE REAR TAILGATE
END OF THE SIDE TUB RAILS
