ARB ELEMENTS - Temporary Mounting Procedure

8

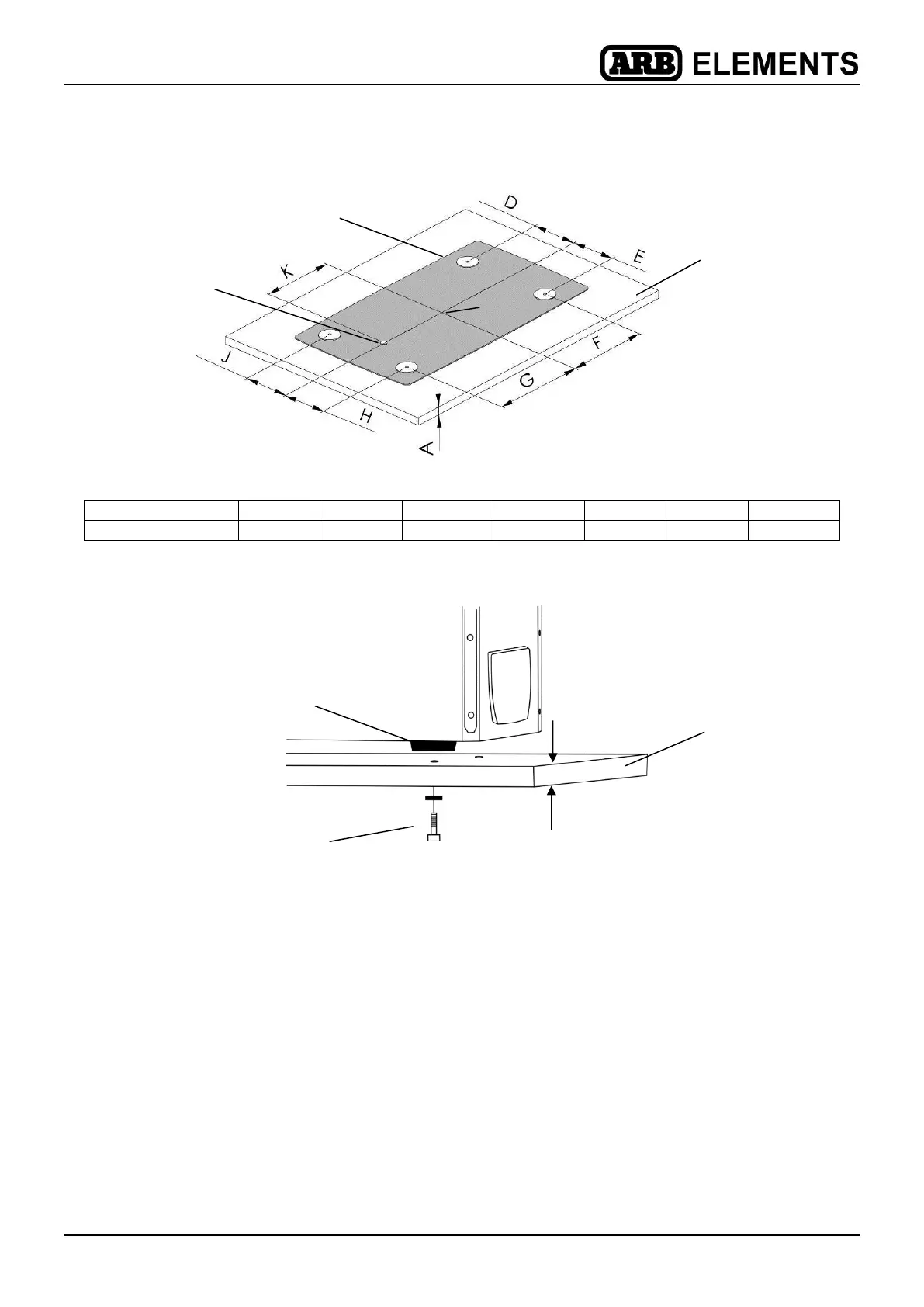

Figure 5a
Fridge Capacity
D
E
F
G
H
J
K
60/63qz (mm/in)
182/7.2
182/7.2
365/14.4
365/14.4
182/7.2
182 7.2
266/10.5
Figure 5b
5.2.2 Temporary mounting
ARB recommends that the ARB Tie Down Kit be used to mount the fridge to solid
anchorage points. This kit includes a quick release feature to allow the fridge to be
quickly and easily released from its mounting position.
Dimensions in mm
Drain plug
Base of fridge
Front of
fridge freezer
Mounting
surface
C
A = Thickness of mounting surface
Rubber mounting foot
Mounting surface
of thickness ‘A’ mm
Mounting bolt
A
