Arbortech AS175 - Dust Extraction; Specifications

5
Swing the guard to its groove at the front of the tool and
snap it into place. (See Fig.1)

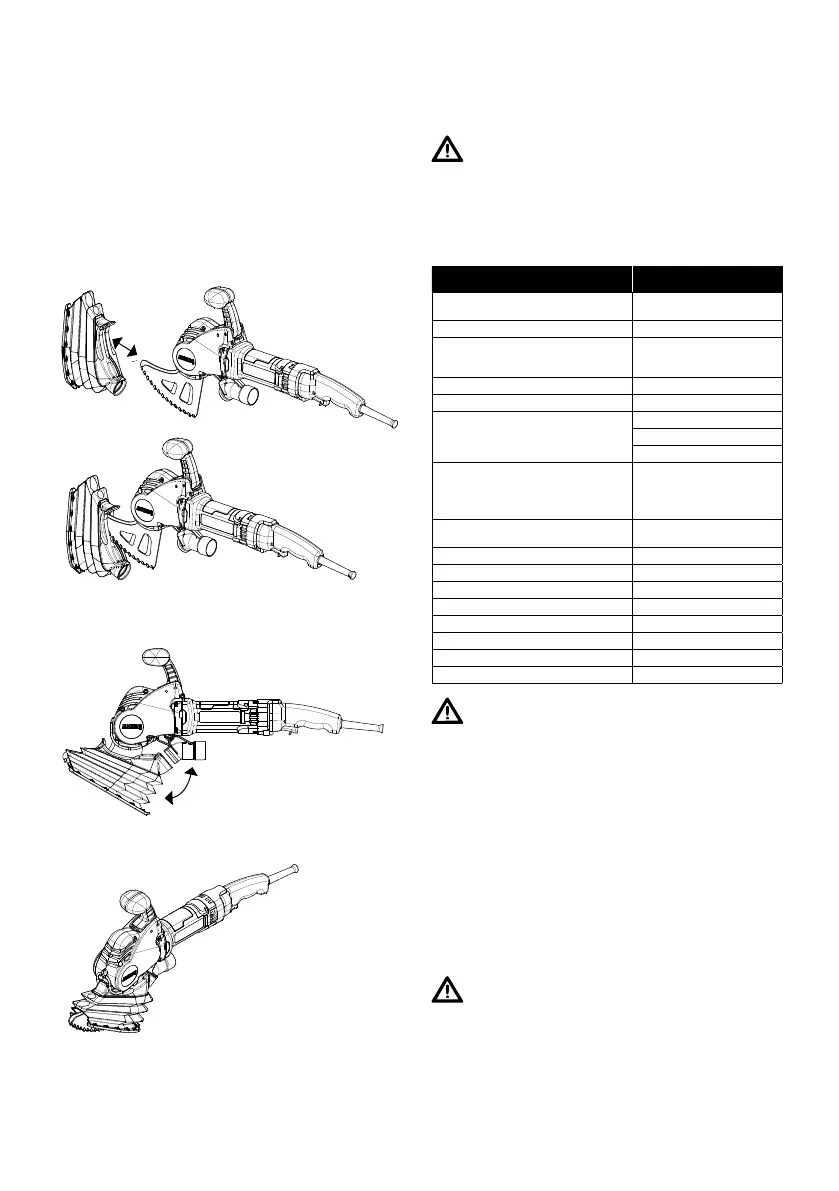

2) Dust Extraction
The AS175 should be fitted with a Dust Boot and
used with a dust extraction vacuum. The Dust Boot
significantly reduces airborne dust exposure to the
user and bystanders. The Dust Boot can be fitted and
removed from the AS175 without tools, and with the
blades mounted. To fit the Dust Boot:
1. Insert the mounted blades through the split opening
on the topside of the Dust Boot
SCALE 1:2
SCALE 1:2
2. Pivot the Dust Boot until it engages with the dust
extractionttingandachievesaseatedoverlap
SCALE 1:2
3. Pinch and fold the front tabs of Dust Boot and press
underneath the guard rail.
SCALE 1:2
The dust extraction fitting on the underside of the
AS175 is designed to accommodate standard dust
extraction vacuums including a 35mm (1 3/8”) diameter
tapered vacuum and a 38mm (1 1/2”) diameter vacuum
fitting. Use an appropriate dust extraction system or
vacuum intended for masonry dust.
NOTE: Failure to use the Dust Boot when cutting
masonry materials will cause excessive wear of
electrical components. Damage caused by dust will
lead to premature failure of the motor, which will affect
the warranty.
CAUTION:
Verify that the vacuum machine being
used has a filter system appropriate for the material
being cut. Incorrect filtration can result in inadequate
dust control and also possible damage to the vacuum
machine.
3) Specications
ITEM SPECIFICATION
Cutting depth/width
120mm (4 3/4”)/7.2mm (9/32”)
depending on blade
Weight, with cutting blades 4.3kg (9.5lb)
Dimensions without blades
610 mm (24”) L
75 mm (3”) W
342 mm (13.5”) H
No load speed N
0
5100 rpm
Power 1400W
Electrical rating, nominal
ALL.FG.175240.00 - 230V~, 50Hz
ALL.FG.175240.40 - 230V~, 50Hz
ALL.FG.175110.40 - 110V~, 50Hz
Dust extraction vacuum hose interface
Suits vacuum hose with 35mm
diameter internal taper fitting,
or 38mm diameter external
taper fitting.
Maximum mid-span belt deflection
2mm (1/16”) with 15 N (1.5
kg) (3.4 lb) deflection force
Blade mount bolt torque 18 Nm (1.8 kg-m), (13.2ft-lb),
Vibration emissions GP Blade (k=1.5) 7.7m/s2
Vibration emissions Plunge Blade (k=1.5) 5.9m/s2
Vibration emissions Switch Blade (k=1.5) 4.8m/s2
A- Weighted sound pressure level L
WA 92dB (A)
Uncertainty KpA 5dB(A)
A- Weighted sound power level L
WA 103 dB(A)
Uncertainty L
WA 5dB(A)
WARNING: The declared vibration emission level
is based on measurements representing the main
applications of the tool. However if the tool is used
for different applications, with different accessories or
poorly maintained, the vibration emission may differ.
This may significantly increase the exposure level over
the total working period. An estimation of the level of
exposure to vibration should also take into account the
times when the tool is switched off or when it is running
but not actually doing the job.
This may significantly reduce the exposure level
over the total working period. Identify additional
safety measures to protect the operator from the
effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of
work patterns.
WARNING: The values state here only indicates
the loudness emitted by this machine. Whether the
operator is required to wear hearing protection cannot
be determined here. This depends on how much noise
reaches the operator’s ear. Even though it may not be
explicitly required, it is in your own interest to always
wear hearing protection when operating this machine.
