7
Clearance
each end
Fig.12

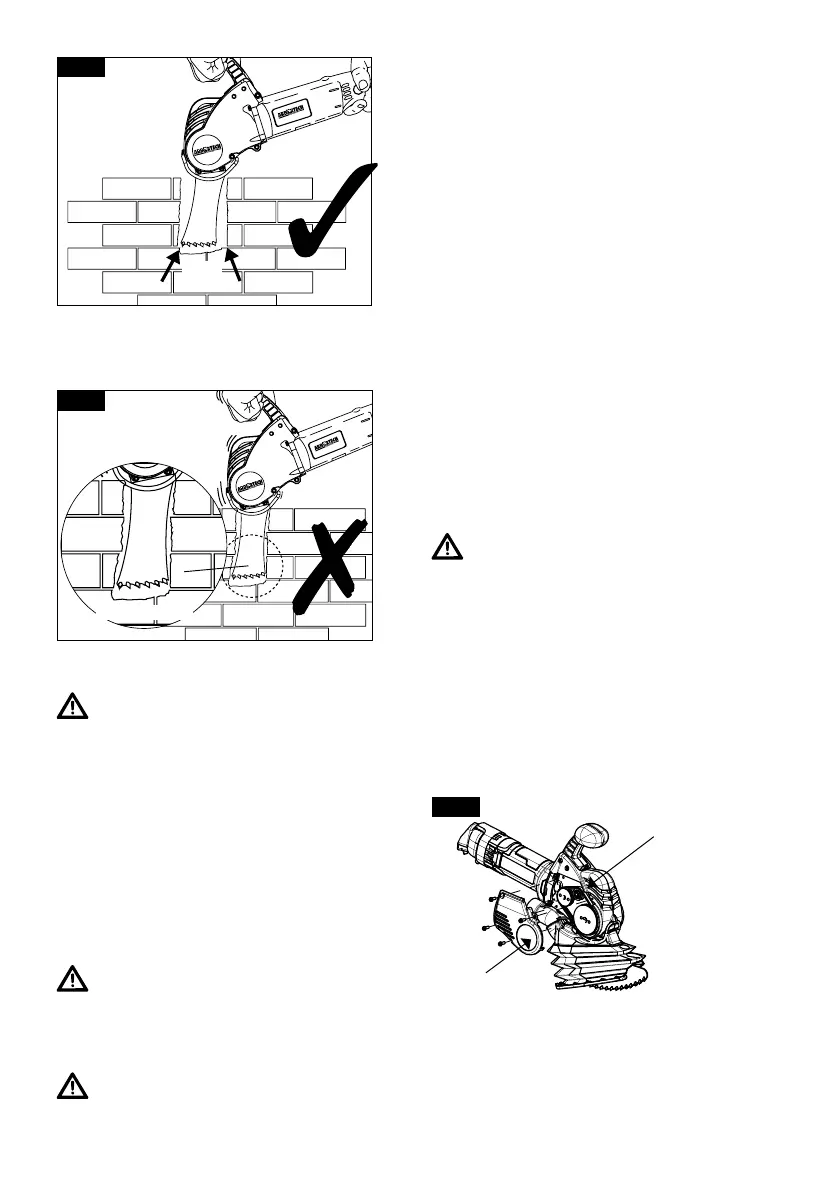

When using the Mortar Plunge blades, the cut should
have enough clearance on each end (shown in fig:12),
to ensure that no hammering of the blade ends occurs
(as shown in Fig.13).
“Hammering!”
Fig.13
6. MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn the tool off and disconnect tool from the
power source before making any adjustments or
removing/installing attachments or accessories.
Before reconnecting the tool, depress and release the
trigger switch to ensure that the tool is turned off.
To assure product SAFETY and RELIABILITY, repairs,
maintenance and adjustment (including brush
inspection and replacement) should be performed by
an ARBORTECH authorised service center. Always use
identical replacement parts.
1) Motor
Cleaning
CAUTION: Blow dust and grit out of the motor and
switch actuator using clean, dry compressed air is a
necessary regular maintenance procedure. Dust and
grit particles often accumulate on interior surfaces and
can cause premature failure. Not regularly cleaning the
AS175 will affect the tools warranty.
CAUTION: ALWAYS WEAR SAFETY GLASSES
when using or cleaning this tool.
Never use solvents or other harsh chemicals for
cleaning the non-metallic parts of the tool. Use a clean,
dry cloth only.
Lubrication
ARBORTECH tools are properly lubricated at the factory
and are ready for use.
Accessories
To reduce the risk of injury, only ARBORTECH,
accessories should be used with this product.
Recommended accessories for use with your tool
are available at extra cost from your local dealer or
authorised service centre.
Repairs
If you need any assistance in locating any accessory, or
general tool query please contact ARBORTECH.
www.arbortech.com.au
Brushes
The AS175 is fitted with Auto-cut off brushes. When the
brushes are worn below minimum length they stop tool
operation reducing internal motor damage. Contact
your local dealer or authorised service center for brush
replacement.
2) Belt and Pulleys
CAUTION: The belt tension should be checked if
belt slip occurs during use. Continuing to operate the
tool with a loose belt may result in poor functionality or
damage to the pulleys. Replacement is required if the
belt cannot be sufficiently tensioned to prevent slipping.
To access these items, remove the 4 screws holding
the plastic cover on the right side of the tool (see
Fig.14). Inspect the belt for correct tension and signs
of damage. If tensioning is required, loosen the
tension idler nut (one turn only). Slide the tension idler
outward to increase the tension to the value noted in
the Specifications in Section 9. and re-tighten. If belt
replacement is required, loosen the tensioner idler,
replace the belt and re-tension the idler as specified.
Fig.14
TITLE:
ASSEMBLY NO.
DRAWING NO.
EST. MASS:
DRAWN BY:
DATE:
CHECKED:
APPROVED:
SHEET:
ASSEMBLY NOTES:
CONFIDENTIAL
COPYRIGHT AND DESIGN
RIGHTS REMAIN THE SOLE
PROPERTY OF ARBORTECH
INDUSTRIES PTY LTD.
PROPRIETRY INFORMATION
DISCLOSURE OR
REPRODUCTION PROHIBITED
WITHOUT WRITTEN
APPROVAL FROM ARBORTECH
INDUSTRIES PTY LTD.
67 WESTCHESTER RD MALAGA
WESTERN AUSTRALIA 6062
PH. +618 9249 1944
12345678910111213
A
B
C
D
E
F
G
H
I
A
B
C
D
E
F
G
H
I
12345678910111213
A3
3 OF 3110079146.430 kg SCALE: 0.100BT
AS175-A001-00AS175-A001-01
ALL MATERIALS TO BE ROHS
COMPLIANT
15-Nov-18
AS175
AS180-A005-AA
UNSPECIFIED TOLERANCES
TO FOLLOW ISO-2768-F
DIMENSIONS IN MILLIMETRES
ARBORTECH INDUSTRIES PTY LTD
REV
DETAILS
APRVD DATE
A ISSUED FOR REVIEW
Tension
Pulley
Cover
During belt tensioning or replacement a visual
inspection of the pulleys should be completed, as
they will wear due to excessive belt slip. Replacement
may be required if the V profile grooves on the pulleys
appear worn or damaged. To replace either pulley
contact your ARBORTECH authorised service centre.
