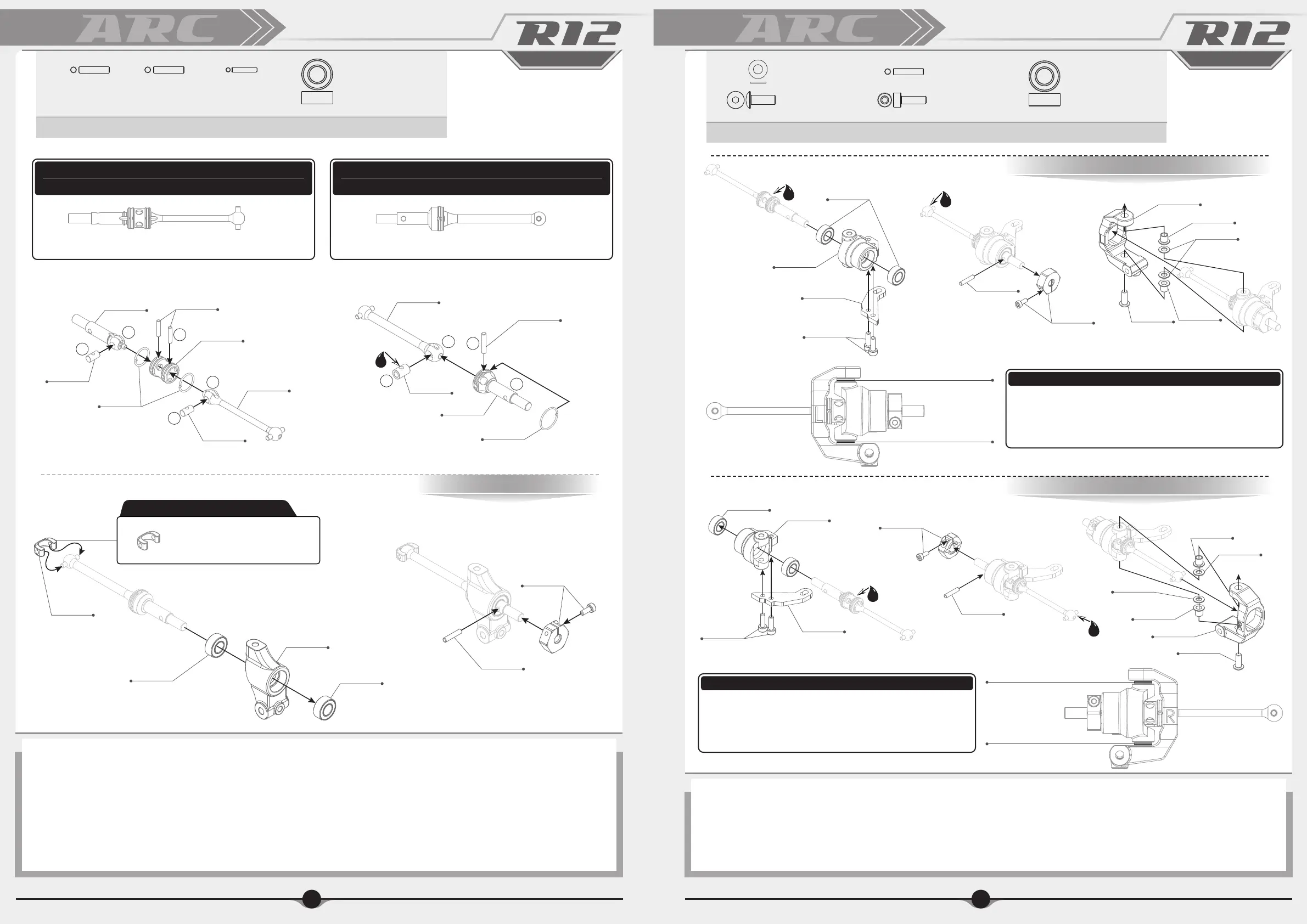

ARC R12 - Bag 04

BAG 01BAG 04
1817
BAG 04
2
2
3
1
1
2
3
4
1
GE
GE
GE
GE
GE
R101030 C Cap 3.5mm(16pcs)
R102005 Hex Wheel Hub Alu(2pcs)
R103002 Wheel Axle (2pcs)
R103005 CVD Insert(2pcs)
R103101 D.J CVD Wheel Shaft (1pcs)
R103103 D.J CVD Insert(2pcs)
R103104 D.J CVD Joint (1pcs)
R106012 Low Friction Ball Bearing 5x10x4 (4pcs)
R121040
C Cap-Strong (16pcs)
Option Parts (Not Included)
R106101 2x9.8mm Pin (10pcs)
R106102 2x10mm Pin (10pcs)
R106105 1.5x8mm Pin (10pcs)
R107001 CVD G-Clip(8pcs)
R107003 D.J CVD G-Clip(8pcs)
R111062 R11 Rear Upright
R112024 CVD Rear 42.5mm-Alu (2)
R113031 D.J CVD Shaft +1 (40mm) 2pcs
R101080 C-Hub 4 Right + Left
R102005 Hex Wheel Hub Alu(2pcs)
R102020 3x6x0.5mm Alu Shims(8pcs)
R103007 Steering Block Bushing(4pcs)
R105105 3x8 Round Screw (10)
R106012 Low Friction Ball Bearing 5x10x4 (4pcs)
R106101 2x9.8mm Pin (10pcs)
R111061 R11 Steering Block
R118041 R11 Steering Plate-Std (2)
R805300 2.5x8mm Cap Screw (10)
x2
x2
x2
x2
x2
x2
1:1 Scale
R106012
R102005
R106012
R107003
R103103
R103002
R107001
R118041
R111061
R805300
R103007
R101080
R102020
(0.5mm)
R105105
Rear Upright X2
Front Steering Block L
Front Steering Block R
Front 40 DJ CVD
Rear Aluminum 42.5 CVD
40
42.5
R106101
R106012
R111062
R106101
R112024
R103104
R103101
R106105
R113031
R103103
R106102
R103005
R101030
R106012
R111061
R118041
R105105
R102005
R101080
R103007
R103007
R102020
(0.5mm)
R103007
R102020
(0.5mm)
R106101
R106012
Low Friction Ball Bearing
5x10x4 (4)
R106105
Ø1.5x8.1 Pin (10)
R106101
Ø2x9.8 Pin (10)
R106102
Ø2x10 Pin (10)
R106012
Low Friction Ball Bearing
5x10x4 (4)
R106101
Ø2x9.8 Pin (10)
1:1 Scale
R105105
3x8 Round Screw (10)
R805300
R102005
R805300
2.5x8mm Cap Screw (10)
0.5mm shims are used between the steering block and
C hub. Axle height can be varied by moving these
shims. Generally, higher axle height will increase
steering response - good for smaller/technical layouts.
NOTICE
0.5mm shims are used between the steering block and
C hub. Axle height can be varied by moving these
shims. Generally, higher axle height will increase
steering response - good for smaller/technical layouts.
NOTICE
1mm/0.5mm/0mm
0mm/0.5mm/1mm
1mm / 0.5mm / 0mm
0mm / 0.5mm / 1mm
R102020
3x6x0.5mm Alu Shims (8)
NOTICE
R109009
NOTICE
R119017
