ARC R12 - OPTION PARTS R129004 R12 ATS SYSTEM (Not Included); R12 ATS SETUP INSTRUCTION; R12 ATS DEFAULT SETUP

BAG 01
2221

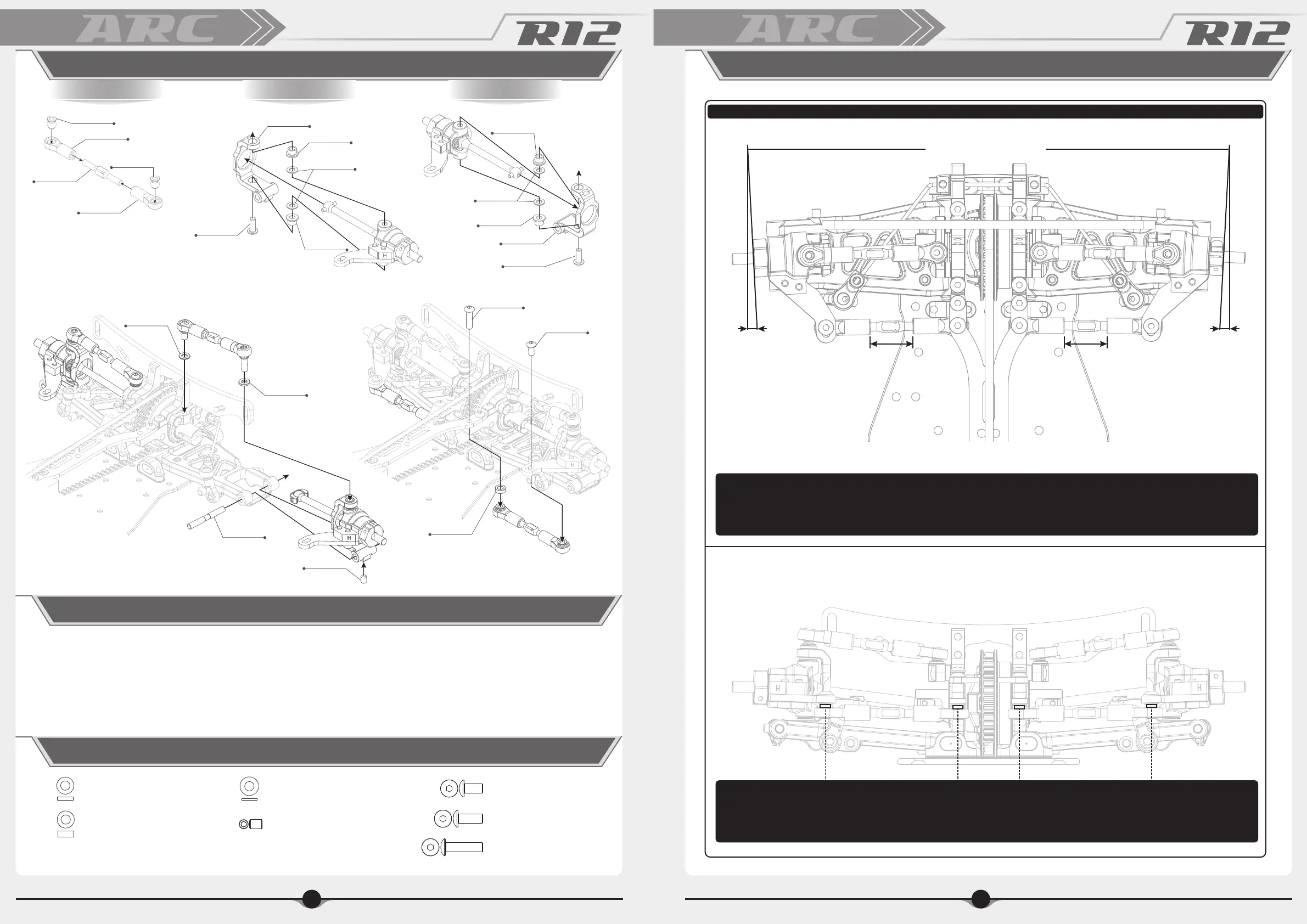

OPTION PARTS R129004 R12 ATS SYSTEM (Not Included) R12 ATS SETUP INSTRUCTION
1:1 SCALE
R129004 R12 ATS SYSTEM PARTS LIST
R10107A
R103016
R103007
R102020
(0.5mm)
R103007
R102014
(1mm)
R803016
R102043
R105107
R105104
R10107A
R105402
R102014
(1mm)
R105105
R103007
R102020
(0.5mm)
R103007
R105105
R803016
R102813
R102015
(2mm)
R102043
R102014
3x5.5x1mm Alu Shims (8)
R102020
3x6x0.5mm Alu Shims (8)
R105402
3x4mm Set Screw (10)
R12 ATS DEFAULT SETUP
0 0-3 -3
15.3mm
15.3mm
R102015
3x5.5x2mm Alu Shims (8)
R105104
3x6 Round Screw (10)
R105107
3x12 Round Screw (10)
R105105
3x8 Round Screw (10)
The default rear toe setup for the R12 is -3.0 degrees. When installing ATS, please setup toe linkage at
15.3mm to achieve -3.0 degrees. The rear toe can be changed by adjusting the rear toe linkage length or
suspension block inserts - with a longer link resulting in less rear toe.
There are 4 locations where shims can be added/removed to setup the amount of toe angle change during
cornering. The default setup is 2mm inside and 0mm outside. The angle of the ATS linkage will affect the
amount of toe angle change - the flatter the linkage angle, the lower the amount of toe angle change.
Rear Toe -3.0 Degree
R103016 Pivot Pin Rear-Out(2pcs)
R105104 3x6 Round Screw (10)
R105105 3x8 Round Screw (10)
R105107 3x12 Round Screw (10)
R105402 3x4mm Set Screw (10)
R803016 Ball Head 4.9mm (4)
R10107A Ball Joint 4.9mm Open (6pcs)
R102014 3x5.5x1mm Alu Shims(8pcs)
R102015 3x5.5x2mm Alu Shims(8pcs)
R102020 3x6x0.5mm Alu Shims(8pcs)
R102043 ATS C-Hub (Alu) 2pcs
R102813 Turnbuckle 3x28mm ALU-7075 (2pcs)
R103007 Steering Block Bushing(4pcs)
x2
ATS Link Left Side Right Side
