ARC R12 - Table of Contents

BAG 01
BAG 02
BAG 02
BAG 02
0605
BAG 02
R122016
R128010
R122015
R112200
R122021
R103050
R105104
R106001
R113010
(0.3mm)
R113011
(0.5mm)
R805010
R805010
R805010
R805010
R105203
R105203
R105203
R802050
R105104
R128013
R112200
R113010
(0.3mm)
R113011
(0.5mm)
R122016
R122015

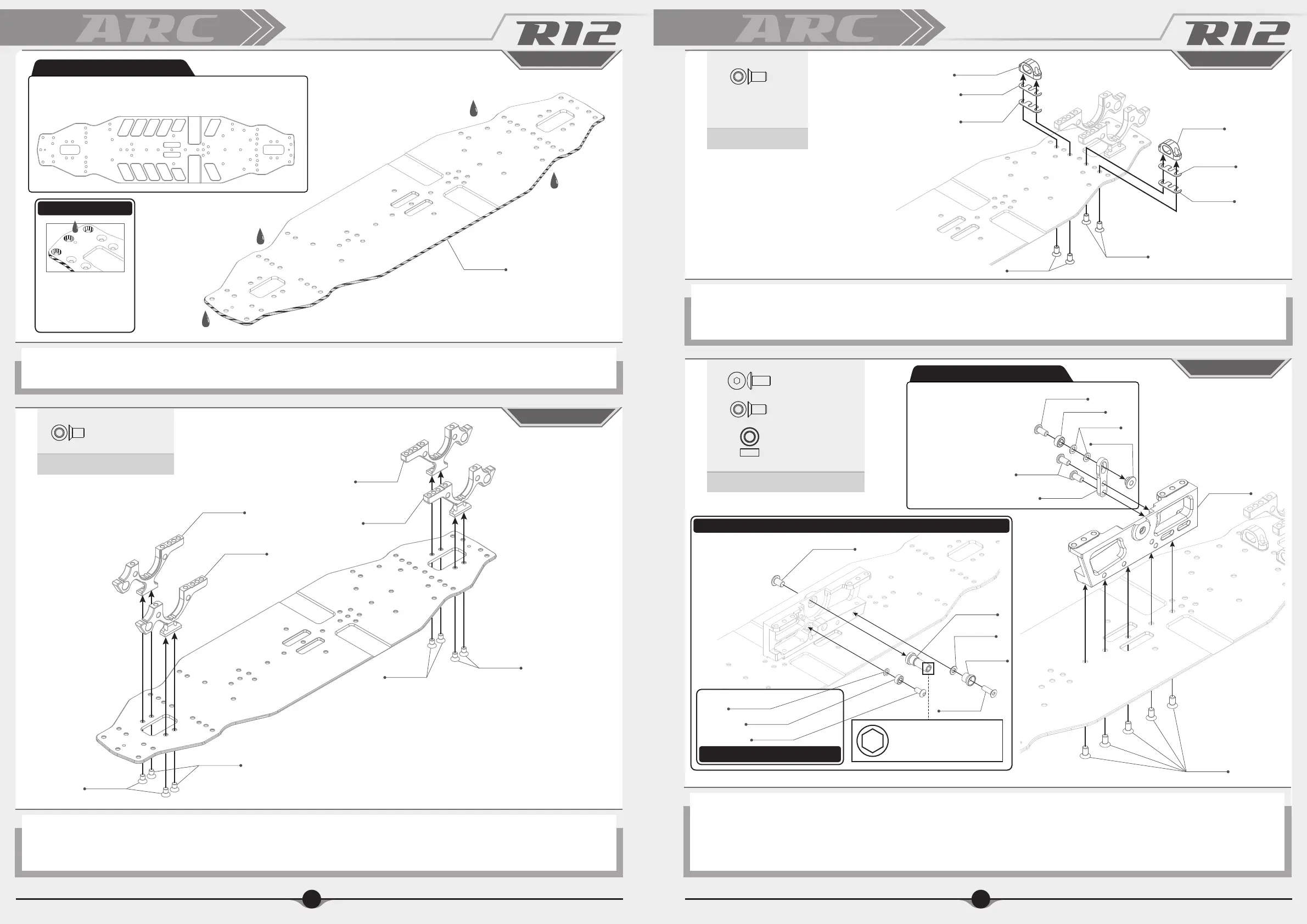

R128010 R12 Carbon Chassis 2.25mm Rxxxxxx
R105203 3x6mm Flat Screw (10)
R112200 R11 Suspension Block RF (2)
R113010 R11 Roll Center Shims-Narrow 0.3mm (4)
R113011 R11 Roll Center Shims-Narrow 0.5mm (4)
R122021 R12 Motor Bulkhead
R128013 R12 Belt Tensioner Plate
R802050 Belt Tensioner Shaft
R103050 3x5x0.3mm Shims (10)
R105104 3x6 Round Screw (10)
R105203 3x6mm Flat Screw (10)
R106001 3x6x2.5mm Ball Bearing (2)
R122015 R12 Bulkhead-FL/RR
R122016 R12 Bulkhead-FR/RL
R805010 3x5mm Flat Screw (10)
1:1 Scale
1:1 Scale
1:1 Scale
R105203
3x6mm Flat Screw (10)
R105104
3x6 Round Screw (10)
R129001
R12 Belt Tensioner set
Option Parts (Not Included)
R122024
R12 Aluminum Chassis 2.0mm
Option Parts (Not Included)
Apply CA Glue to the
chassis edges and
front bumper screws
as highlighted.
NOTICE
R105203
3x6mm Flat Screw (10)
R805010
3x5mm Flat Screw (10)
R106001
3x6x2.5mm Ball Bearing (2)
R102020
R123001
R805101
R121030
R105104
R105205
R106001
R103051
NOTICE
Option Parts (Not Included)
2.5mm Hex hole inside
for tight the axle
