ARC R12 - R12 Bag 02 Parts Exploded View; R12 Bag 02 Parts List; Option Parts Exploded View; Option Parts List

1009
1:1 SCALE
R12 BAG 02 PARTS LIST
OPTION PARTS LIST

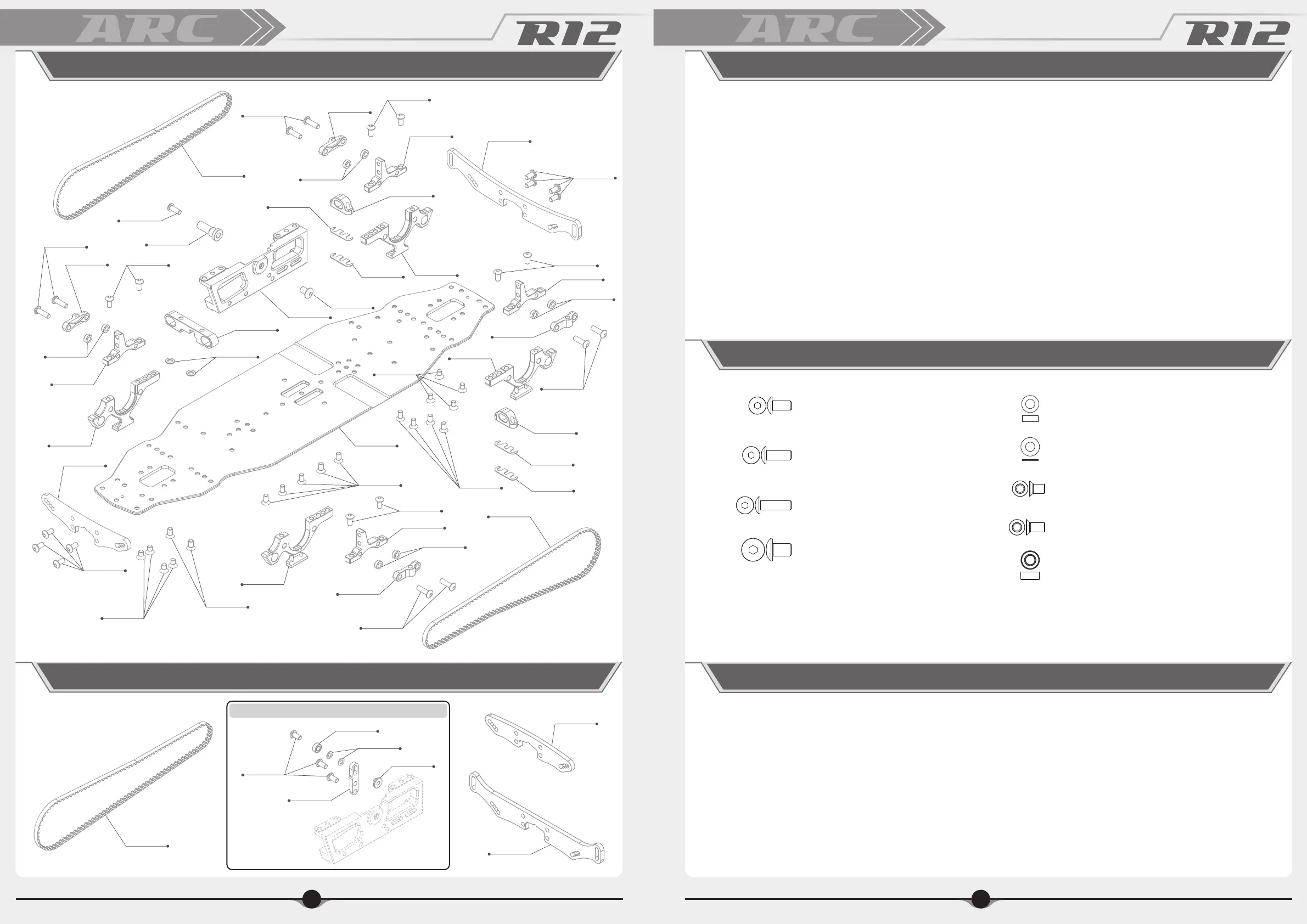

R12 BAG 02 PARTS EXPLODED VIEW
OPTION PARTS EXPLODED VIEW
R129001
R122015
R112200
R112200
R113010
(0.3mm)
R113011
(0.5mm)
R113011
(0.5mm)
R805101
R802050
R103050
R106001
R128012
R122021
R122011
R105106
R122023
R105104
R102020
(0.5mm)
R105203
R105203
R105104
R128002
R105203
R105104
R122022
R102015
(2mm)
R128010
R105104
R123001
R105105
R128013
R128011
R122016
R122022
R102015
(2mm)
R122023
R114022
R114023
R122022
R128001
R105104
R102015
(2mm)
R113010
(0.3mm)
R105106
R122016
R105106
R805010
R122015
R122023
R105106
R114022
R105104
R105104
R122022
R102015
(2mm)
R122023
R805010
R122015 R12 Bulkhead-FL/RR
R122016 R12 Bulkhead-FR/RL
R122021 R12 Motor Bulkhead
R122022 R12 Upper Bulkhead
R122023 R12 Upper Link Base
R123001 R12 Spur Shaft
R128001 R12 Rear Shock Tower
R128002 R12 Front Shock Tower
R128010 R12 Carbon Chassis 2.25mm
R805010 3x5mm Flat Screw (10)
R805101 4x6 Round Screw (10)
R102015 3x5.5x2mm Alu Shims(8pcs)
R102020 3x6x0.5mm Alu Shims(8pcs)
R105104 3x6 Round Screw (10)
R105105 3x8 Round Screw (10)
R105106 3x10 Round Screw (10)
R105203 3x6mm Flat Screw (10)
R112200 R11 Suspension Block RF (2)
R113010 R11 Roll Center Shims-Narrow 0.3mm (4)
R113011 R11 Roll Center Shims-Narrow 0.5mm (4)
R114022 S3M-351-3mm Belt
R122011 R12 Suspension Block-FR
R128011 R12 Rear Shock Tower -3mm
R128012 R12 Front Shock Tower -3mm
R128013 R12 Belt Tensioner Plate
R802050 Belt Tensioner Shaft
R103050 3x5x0.3mm Shims (10)
R105104 3x6 Round Screw (10)
R106001 3x6x2.5mm Ball Bearing (2)
R114023 S3M-351-3mm White Rubber Belt
R102015
3x5.5x2mm Alu Shims (8)
R102020
3x6x0.5mm Alu Shims (8)
R105104
3x6 Round Screw (10)
R105105
3x8 Round Screw (10)
R105106
3x10 Round Screw (10)
R105203
3x6mm Flat Screw (10)
R805010
3x5mm Flat Screw (10)
R106001
3x6x2.5mm Ball Bearing (2)
R805101
4x6 Round Screw (10)
