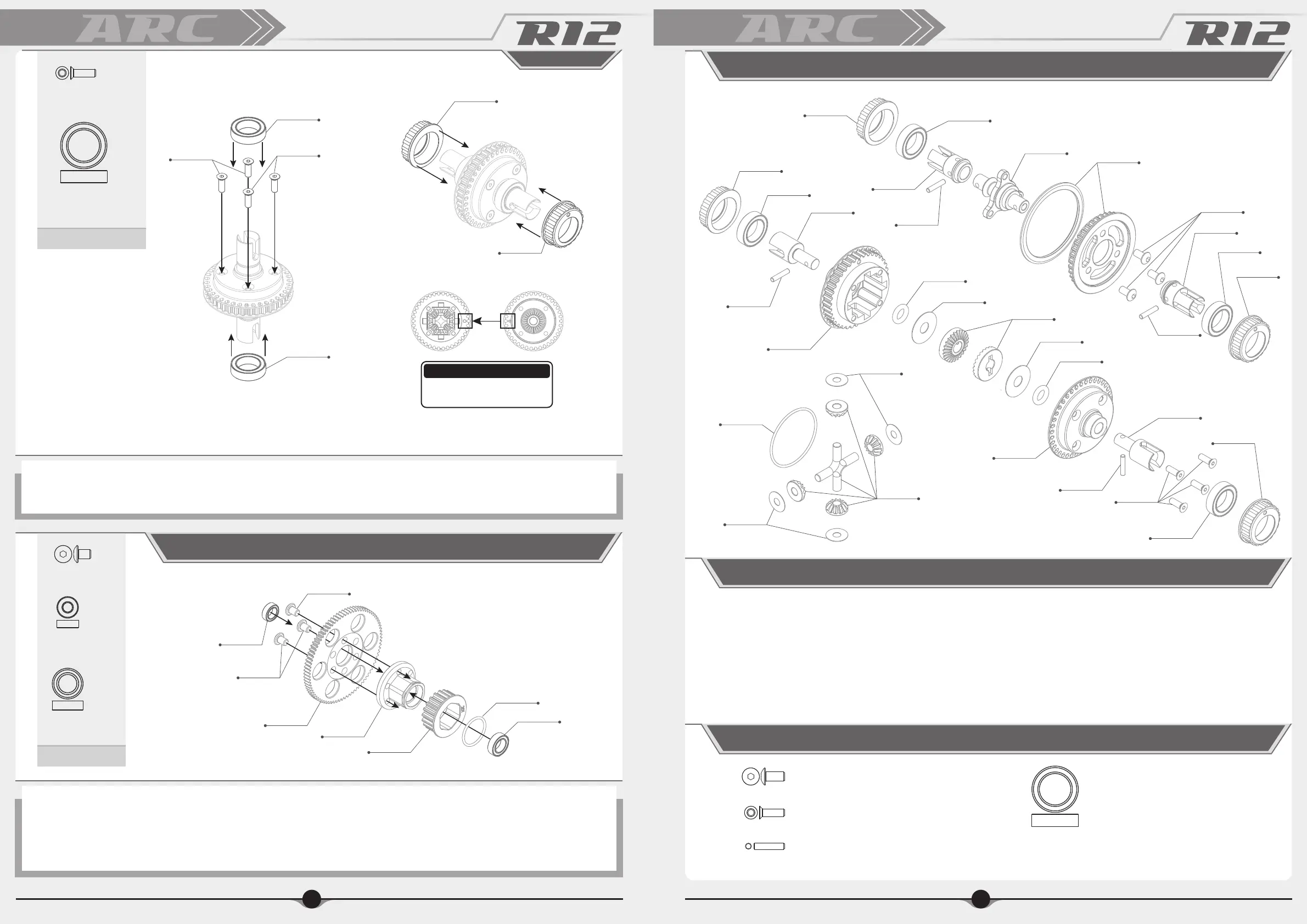

ARC R12 - ASSEMBLY & EXPLODED VIEW; R12 BAG 01 PARTS EXPLODED VIEW; R12 BAG 01 PARTS LIST

BAG 01
0403
BAG 01
1:1 SCALE
R12 BAG 01 PARTS EXPLODED VIEW
R12 BAG 01 PARTS LIST
ASSEMBLY & EXPLODED VIEW
R106021
NOTICE
Diff case direction needs
to match as per above.
R106021
R121030
R105103
R106013
R124001
R105201
R105201
R121030
R104101
R121025
R122101
R105103
R106002
R105201 2.5x8mm Flat Screw (10)
R106021 Low Friction Ball Bearing 10x15x4 (4pcs)
R121030 R12 Eccentric Hub (4)
R124001 10x1 O'ring (4)
R104101 CNC Spur 84T (48dp)
R105103 3x4 Round Screw (10)
R106002 5x8x2.5mm Ball Bearing /Metal Seal (4)
R106013 6x10x3 Ball Bearing (2)
R121025 R12 Center Pulley 20T
R122101 R12 Center Pulley Hub-Alu
1:1 Scale
R106021
Low Friction Ball Bearing
10x15x4 (4)
1:1 Scale
R105103
3x4 Round Screw (10)
R103024
R106101
R103023
R101110
R104006
R102001
R106021
R121030
R106101
R103023
R121024
R104005
R103024
R101110
R104006
R102001
R106101
R121030
R106021
R105201
R121024
R122020
R106021
R106021
R121030
R103001
R121026
R105104
R121030
R103001
R106101
R105201 2.5x8mm Flat Screw (10)
R106021 Low Friction Ball Bearing 10x15x4 (4pcs)
R106101 2x9.8mm Pin (10pcs)
R121024 R12 Diff Case
R121026 R12 Front Pulley 38T
R121030 R12 Eccentric Hub (4)
R122020 R12 Spool Axle-Alu
R101110 Diff Gears (with Axle)
R102001 Gear Diff Outdrive Alu(2pcs)
R103001 Spool Outdrive(2pcs)
R103023 Gear Diff Shim Small(8pcs)
R103024 Gear Diff Shim Big(4pcs)
R104005 O'Ring 26x1 For Diff Case(2pcs)
R104006 O'ring 5x2(4pcs)
R105104 3x6 Round Screw (10)
R105104
3x6 Round Screw (10)
R105201
2.5x8mm Flat Screw (10)
R106101
Ø2x9.8 Pin (10)
R106021
Low Friction Ball Bearing
10x15x4
R105201
2.5x8mm Flat Screw (10)
R106013
6x10x3 Ball Bearing (2)
R106002
5x8x2.5mm Ball Bearing
/ Metal Seal (4)
