BAG 01BAG 05
BAG 05
2423
BAG 05
2
1
x4
x4
R104015
R111050
(Short)
R112035
R111050
R104016
R107043
R112036
R104018
R104013
R112036
R102104
R102104
R101130
R119023
R112037
R104002
R112030
R104002 O'ring 3x2(4pcs)
R104013 O'ring 13x1 (2pcs)
R104015 Shock Shaft Shim (4pcs)
R104018 Shock Piston Big Bore 1.1mm x4 (4pcs)
R111050 Shock Ball End Set-Ultra Short (2)
R112030 R11 Shock Low Cap-Black (2)
R112036 Shock Adj Nut-Ultra Short (2)
R112037 Shock Body Ultra Short-MC (2)
R119023 Short Shock Shaft -Screw Type (4)

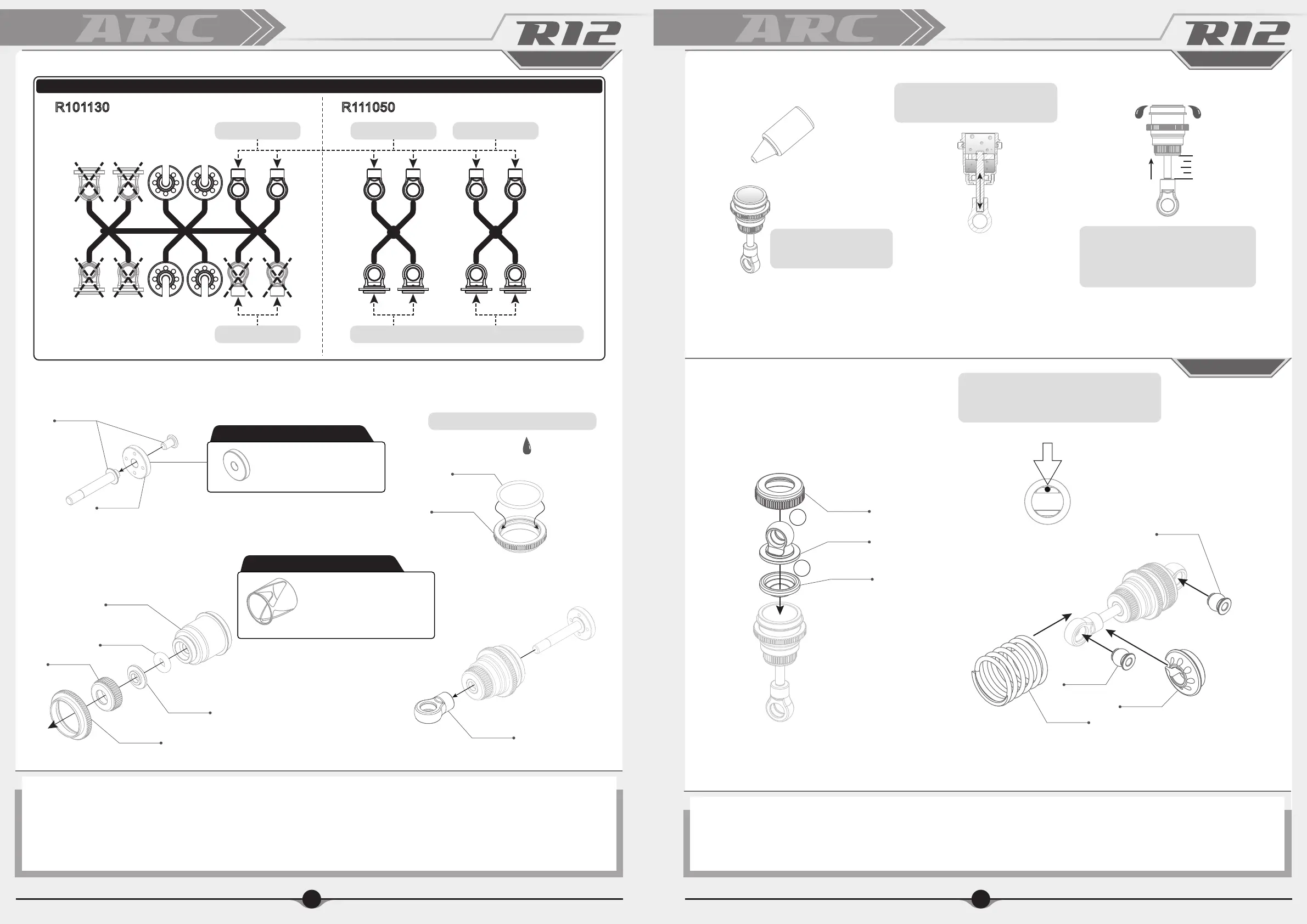

Apply shock oil before assembly
Using only R111050 ultra short upper ball end
Short Ball End Short Ball End Short Ball End
Long Ball End
NOTICE
R101130 Shock Ball Joint Set Big Bore R111050 Shock Ball End Set-Ultra Short (2)
x4
x4
x4
x4
Silicone Oil #500
25%
50%
75%
PUSH
Move the shaft up and down to
let the air escape from the oil
Fill the shock oil to the
top of the shock body
To adjust the rebound amount of
the shock, push the shock shaft
in to the required level to remove
excess oil during assembly.
Drill the shock cap here to help provide
zero rebound and softer dampening
(optional setting)
R114010
PDS Pistion (2)
Option Parts (Not Included)
R112038
PDS Cylinder-Ultra Short (2)
Option Parts (Not Included)
R107043 Shock Spring 0.28g Green (Short) (2pcs)
R111050 Shock Ball End Set-Ultra Short (2)
R112035 Shock Cap-Ultra Short (2)
R101130 Shock Ball Joint Set Big Bore
R102104 5.8mm Ball end Short type Alu (4pcs)
R104016 Shock Membrane Big Bore (4pcs)
To Next Page
