ARC R12 - Page 18

3433
1:1 SCALE
R12 BAG 06 PARTS LIST

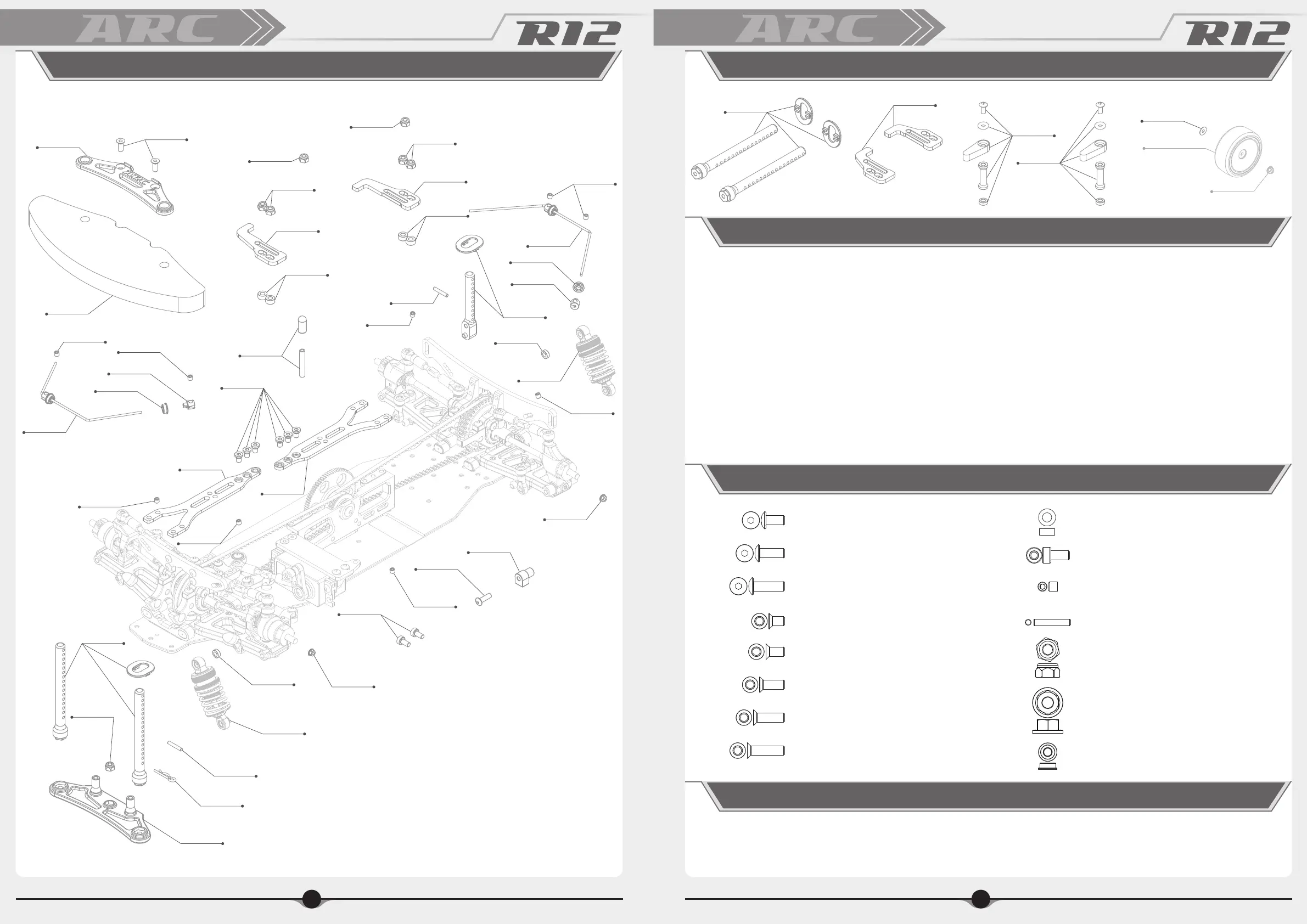

R12 OPTION PARTS EXPLODED VIEW
R12 BAG 06 OPTION PARTS LIST
R12 BAG 06 PARTS EXPLODED VIEW
R105401
R105204
R119018
R107002
R111030
R106104
R102015
(2mm)
R105151
R119020
R105401
R105401
R115001
R119026
R128015
R118038
R121015
(3mm)
R115001
R118038
R121015
(3mm)
R105401
R119018
R806001
R806001
R113001
R113001
R119018
R119026
R105401
R105401
R105150
R105401
R105401
R104150
R105106
R111064
R105151
R105300
R106104
R102015
(2mm)
R119020
R114011
R111030
R127002
R115001
R115001
R128005
R128005
R122025
R127010
R111030 R11 2019 Bumper Set
R111064 R11 Motor Fan Mount
R113001 Anti-Roll Bar Holder (2)
R114011 R11 2019 Foam Bumper-STD
R115001 3mm Nylon Nut-Black Alu (4)
R118038 R11 2019 Battery Guides-Carbon (2)
R119018 R11 Body Mount Set
R119020 R11 2019 Shock Set Ultra Short
R121015 Plastic Shims (1/2/3) mm
R122025 R12 Upper Deck Screw (4)
R127002 R12 Front Anti-Roll Bar 1.3mm
R127010 R12 Rear Anti-Roll Bar 1.3mm
R128005 R12 Upper Deck 2.0mm
R805010 3x5mm Flat Screw (10)
R806001 3x6x2.5 Flange Ball Bearing (2)
R102015 3x5.5x2mm Alu Shims(8pcs)
R104150 Antenna (1set)
R105104 3x6 Round Screw (10)
R105105 3x8 Round Screw (10)
R105106 3x10 Round Screw (10)
R105150 3mm Nylon Nut (10)
R105151 4mm Nylon Nut (4)
R105203 3x6mm Flat Screw (10)
R105204 3x8mm Flat Screw (10)
R105205 3x10mm Flat Screw (10)
R105206 3x12mm Flat Screw (10)
R105300 3x6mm Cap Screw (10)
R105401 3x3mm Set Screw (10)
R106104 2x11.8mm Pin (10pcs)
R107002 R-Clip(8pcs)
R119018 R11 Body Mount Set
R119026 R11F Battery Holder (2)
R128015 Slim Lipo Battery Holder (2)
R103028 4x11x0.25mm Shims (8)
R103029 4x11x0.5mm Shims (8)
R102015
3x5.5x2mm Alu Shims (8)
R105104
3x6 Round Screw (10)
R105105
3x8 Round Screw (10)
R105106
3x10 Round Screw (10)
R105151
R103028
R103029
Rubber tires
(Not Included)
R105150
3mm Nylon Nut (10)
R105151
4mm Nylon Nut (4)
R105203
3x6mm Flat Screw (10)
R105204
3x8mm Flat Screw (10)
R105205
3x10mm Flat Screw (10)
R105206
3x12mm Flat Screw (10)
R105300
3x6mm Cap Screw (10)
R105401
3x3mm Set Screw (10)
R106104
Ø2x11.8 Pin (10)
R806001
3x6x2.5mm Flange Ball Bearing (2)
R805010
3x5mm Flat Screw (10)
