7 Functional description
Valves from this series are usually used as actuators within the meaning
of DIN IEC 60050-351.
The valve serves to reduce the pressure and quantity of a flow of me-
dium through the plug.
The flow of medium through the seat (20) is regulated by the position of
the plug (26). The plug (26) is adjusted with the aid of an attached actu-
ator, which acts on the Stem (50) connected to the plug (26).
50
26
20

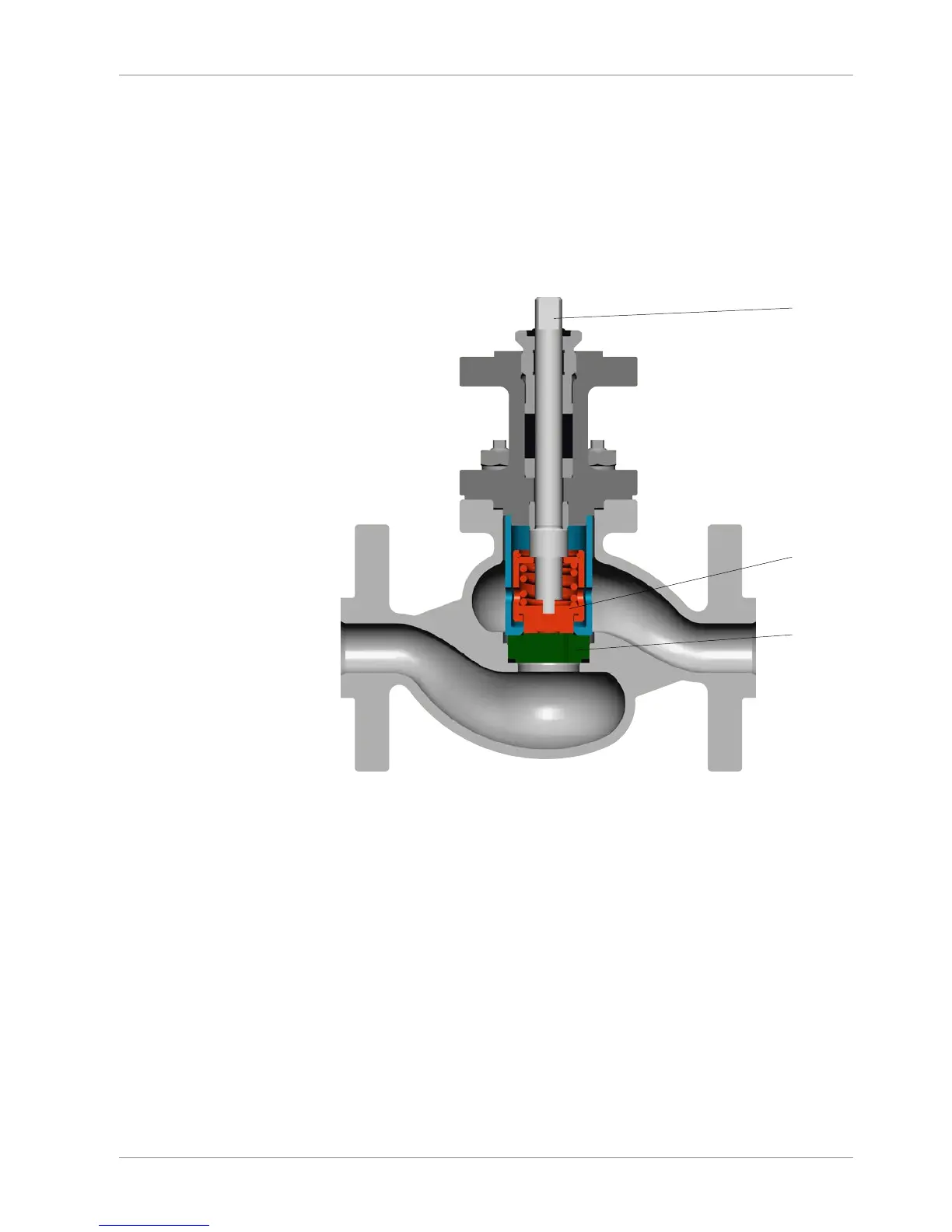

Illustration5: Sectional drawing
