Arcam AVR5 User Manual

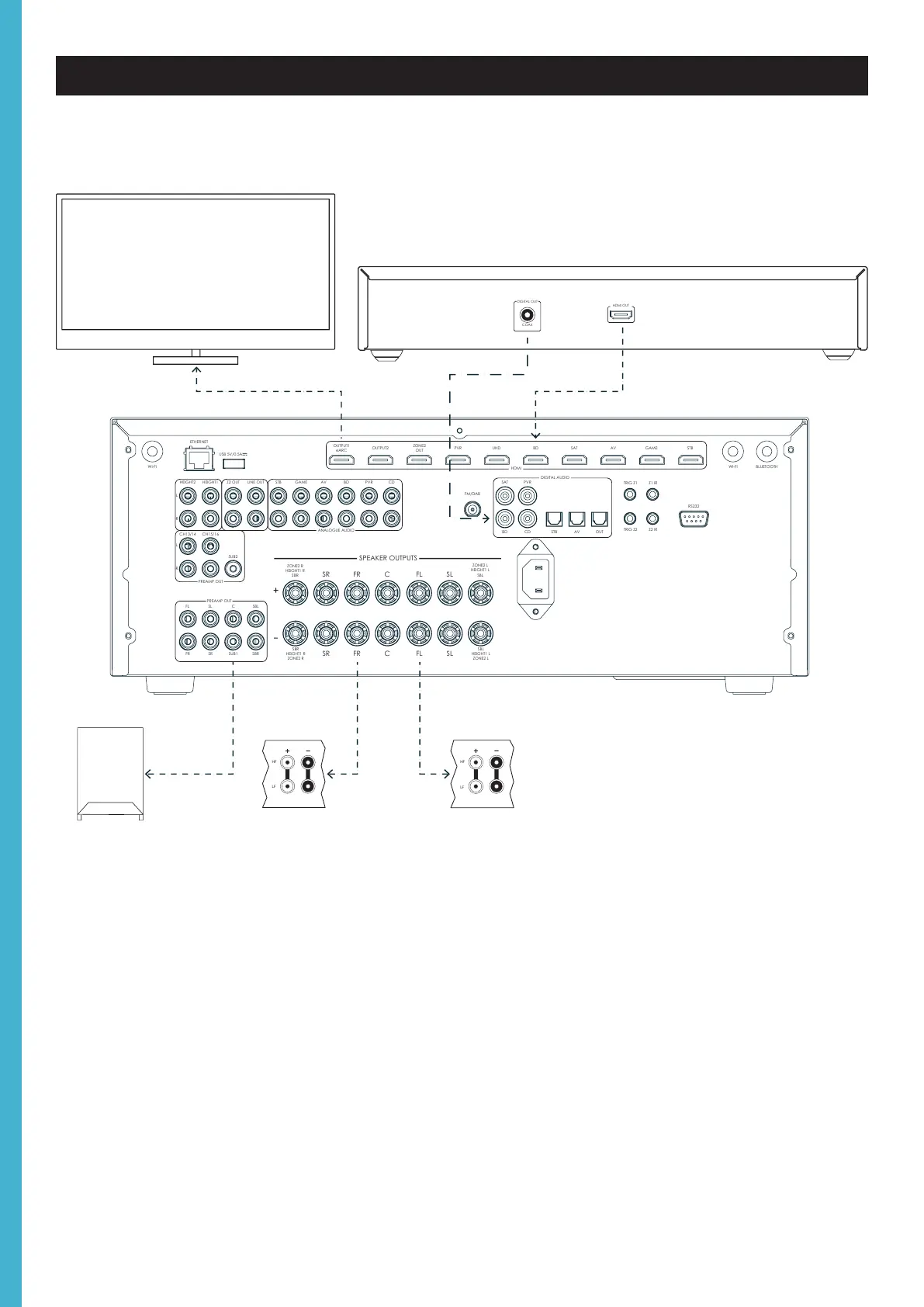

连接外部资源
1. 将AVR的扬声器输出连接到扬声器。
注意：为清晰起见，显示了2.1扬声器设置。
2. 将源组件连接到所需的输入，并将显示器连接到所需的HDMI输出。
注意：显示了带有可选数字音频连接的蓝光播放器。
3. 打开设备电源，等待一分钟以进行初始化。
4. 使用遥控器或前面板控件选择所需的输入。
DIGITAL AUDIO
RS232
BLUETOOTHWI-FI
TRIG Z1 Z1 IR
Z2 IRTRIG Z2
OUTAVSTBCDBD
SAT PVR
HDMI
FM/DAB
CD
PVR
BD
AV
GAME
STB
LINE OUT
ANALOGUE AUDIO
Z2 OUTHEIGHT1HEIGHT2
L
R
CH15/16CH13/14
SUB2
L
R
ETHERNET
USB 5V/0.5A
FL
FR
SL
SR
C
SUB1
SBL
SBR
PREAMP OUT
PREAMP OUT
ZONE2 R
HEIGHT1 R
SBR
SBR
HEIGHT1 R
ZONE2 R
ZONE2 L
HEIGHT1 L
SBL
SBL
HEIGHT1 L
ZONE2 L
SR
SR
FR
FR
C
C
FL
FL
SL
SL
SPEAKER OUTPUTS
WI-FI
STBGAMEAVSATBDUHDPVR
ZONE2
OUT
OUTPUT1
eARC
OUTPUT2
DIGITAL OUT
COAX
HDMI OUT
HF
LF
HF
LF

Arcam AVR5 Specifications

General

Type	AV Receiver
Amplification	Class AB
Frequency Response	20Hz - 20kHz
HDMI Inputs	7
HDMI Outputs	2
HDMI 2.1	Yes
eARC	Yes
HDMI Version	2.1
HDCP Version	2.3
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
Room Correction	Dirac Live
Streaming	Yes
Wi-Fi	Yes
Bluetooth	Yes
Ethernet	Yes
USB	Yes
Input Impedance	47k Ohms
Total Harmonic Distortion	0.2%
Signal-to-Noise Ratio	100dB
DAC	ESS 9026PRO
Dimensions (W x H x D)	433 x 171 x 425 mm
Amplifier Power Output	90W per channel (8 ohms, 20Hz - 20kHz, 0.2% THD)
Input Sensitivity	200mV
USB Port	Type-A (for audio playback)
