23425 AVR500/600 & AV888 — FAQ
Part 4 - CI
Remote input and trigger outputs

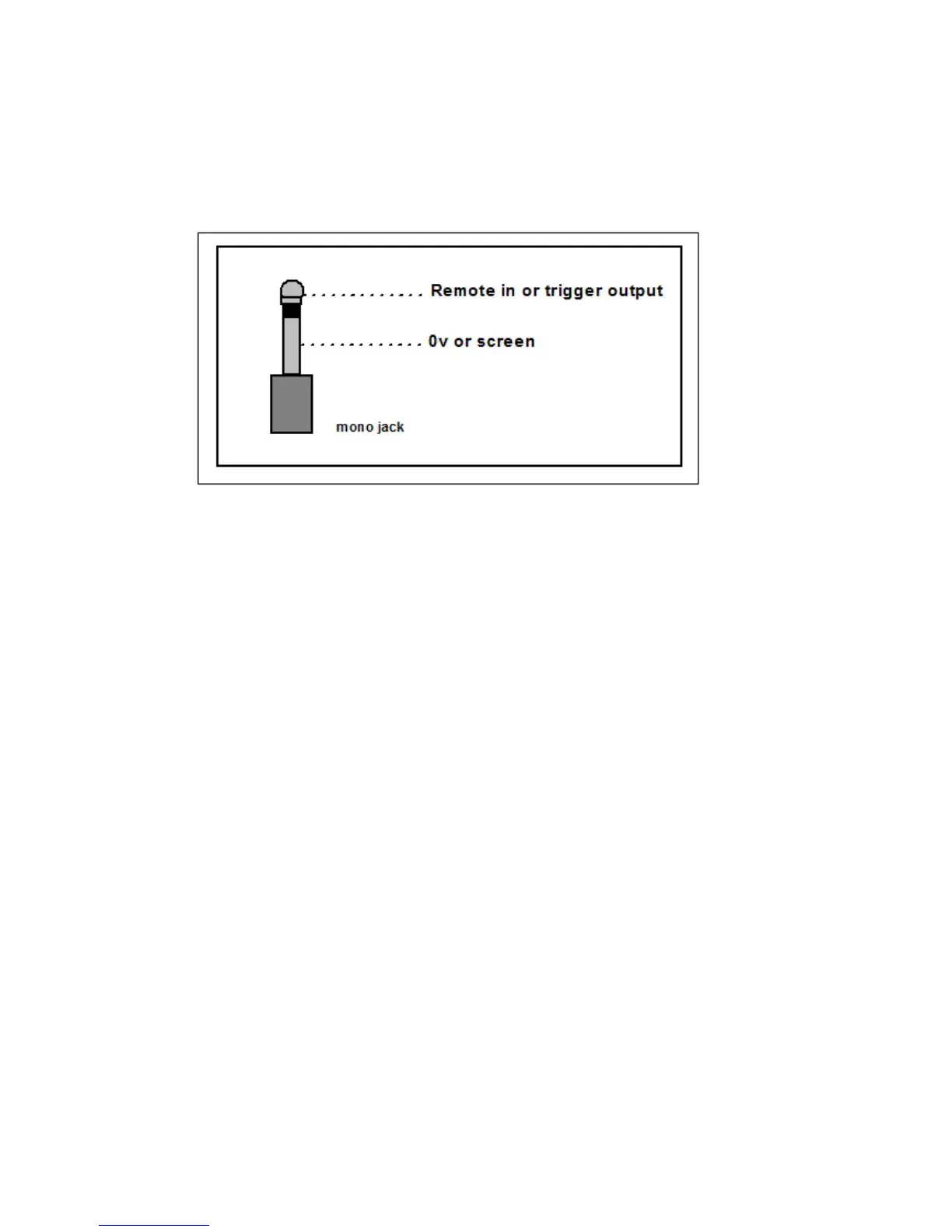

ese are for use with Mono jacks and should be wired as the below diagram indicates. Please note: as is typical of this type of remote input external remote eyes such
as a Xantech Dinky Link will require an external +12v regulated power supply as recommended by the supplier.
RS232 loss of control (intermittent)
From Soware version 2.6 onwards the AVR platform allows you to reassign the iPod RS232 interface as the RS232 control input / output port – this change has been
made due to a small number of reports that RS232 control is lost from Crestron/AMX systems – the iPod control interface has far greater immunity to spikes / glitches
and should be used when possible for Crestron / AMX interfaces..
Open Engineering menu (press and hold front panel menu button for +3 secs), scroll down to the option labeled RS232 control – now select iPod.
Soware update is available from http://www.arcam.co.uk/extranethome/tor

Arcam AVR600 Specifications

General

Audio output channels	7.1 channels
Power output per channel (1KHz@8 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	150 W
HDMI in	5
Composite video in	1
Digital audio coaxial in	3
Digital audio optical in	4
Number of HDMI outputs	2
12V trigger	Yes
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Wi-Fi	No
Supported radio bands	AM, DAB, FM
Preset stations quantity	50
Optical drive type	DVD player
Disc types supported	DVD
Display	VFD
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
Volume control	Digital
Apple docking compatibility	iPod
AC input voltage	230 V
Package weight	30000 g
Dimensions (WxDxH)	435 x 435 x 185 mm

Weight and Dimensions

Width	435 mm
Height	185 mm
Weight	25000 g
