Arcan ALFJ48 - Parts Drawing and Parts List

ALFJ48 and ALFJ60 4 09/04/19
Model ALFJ48 and ALFJ60
48" Farm Jack / 60" Farm Jack
For Technical Questions, Call: 1-800-879-7316

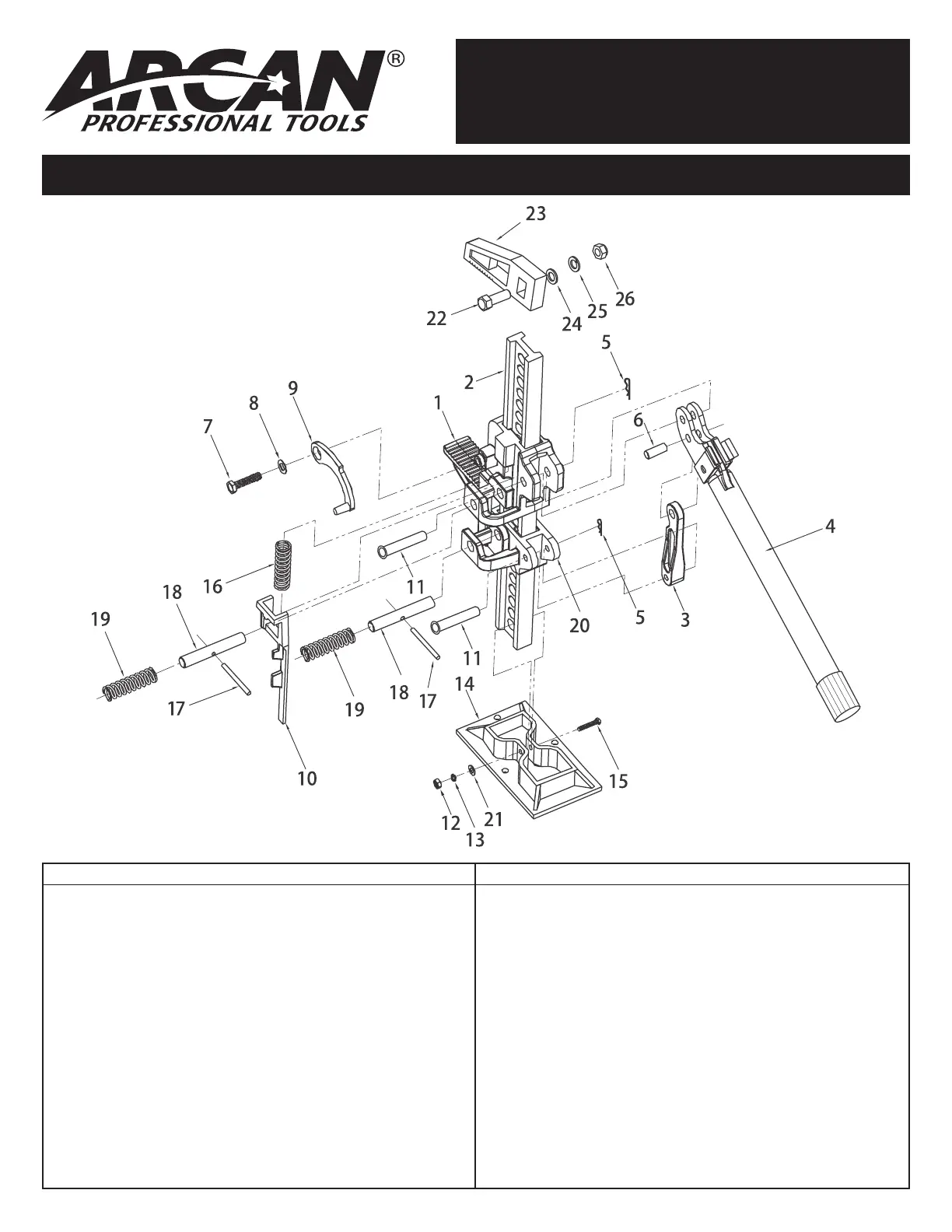

PARTS DRAWING AND PARTS LIST
Ref No. Part No. Description Qty
1 Lifting Arm 1
2 Steel Rail 1
3 Connecting Rod 1
4 Handle Assembly 1
5 RS48001 R-Clip 2
6 Pin 1
7 RS48003 Screw 1
8 RS48004 Washer 1
9 RS48005 Reversing Lever - Silver 1
10 RS48007 Reversing Latch - Silver 1
11 RS48008 Pin 2
12 Nut 1
13 Spring Washer 1
14 Base 1
15 Bolt 1
16 RS48009 Spring 1
17 RS48010 Reverse Rod Pin 2
Ref No. Part No. Description Qty
18 RS48011 Reverse Rod 2
19 RS48012 Spring 2
20 Small Runner 1
21 Flat Washer 1
22 Screw 1
23 Stop Block 1
24 Flat Washer 1
25 Spring Washer 1
26 Nut 1
Product Label Kit RSALFJ48PLK (ALFJ48) and RSALFJ60PLK (ALFJ60)
Only items identified by part number are available separately.
