ALJ3T © 2007 Arcan Tools 2 rev. 02/26/07

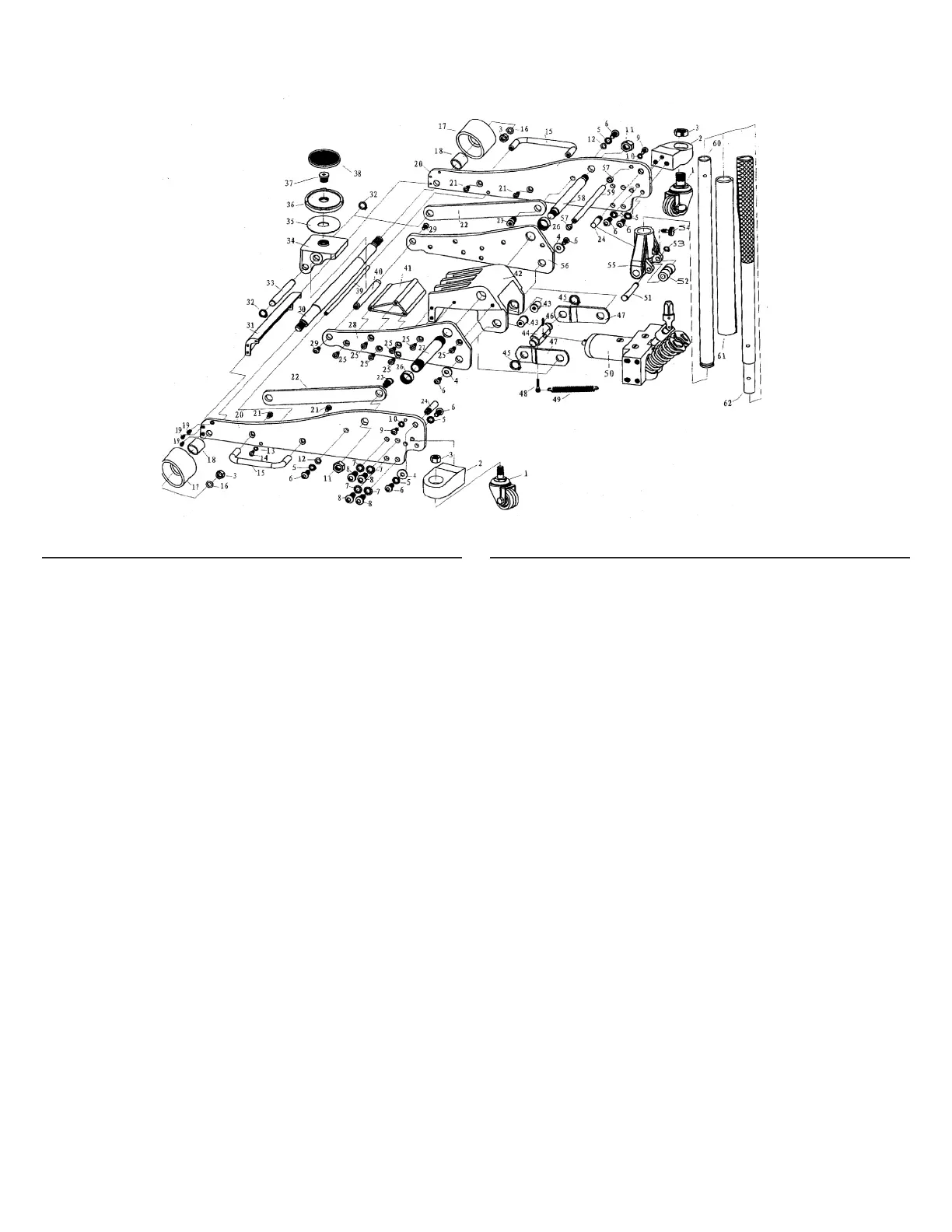

REPLACEMENT PARTS
REF # PART # DESCRIPTION QTY
1 ALJ3T01 rear caster 2
2 rear caster bracket 2
3 ALJ3T03 locking nut M12 4
4 washer 10 4
5 tooth washer 10 10
6 bolt M10x25 10
7 tooth washer 12 8
8 bolt M12x25 8
9 bolt M8x25 2
10 tooth washer 8 2
11 locking nut M18 2
12 washer 10 2
13 tooth washer 6 2
14 bolt M6x25 2
15 ALJ3T15 handle 2
16 washer 2
17 ALJ3T17 front wheel 2
18 bushing 2
19 bolt M6x20 6
20 side plate 2
21 ALJ3T21 bolt M8x25 4
22 radius linkage 2
23 radius linkage axle bolt 2
24 yoke axle 2
25 bolt M10x25 14
26 screw sleeve 2
27 axle sleeve 1
28 lift arm left side plate 1
29 bolt M10x16 2
30 front wheel axle 1
31 baffle 1
REF # PART # DESCRIPTION QTY
32 retaining ring 16 2
33 radius linkage axle 1
34 saddle base 1
35 gasket of saddle 1
36 ALJ3T36 saddle 1
37 saddle bolt 1
38 ALJ3T38 saddle pad 1
39 rod 1
40 saddle base axle 1
41 lift arm core 1
42 lift arm mounting plate 1
43 linkage pin 2
44 linkage block 1
45 retaining ring 22 2
46 pin 4x40 1
47 linkage 2
48 bolt M6x25 2
49 lift arm return spring 2
50 ALJ3T50 power unit assembly 1
51 pump roller axle 1
52 pump roller 1
53 retaining ring 12 1
54 ALJ3T54 handle set screw 1
55 ALJ3T55 handle yoke 1
56 lift arm right side plate 1
57 rubber guard 2
58 lift arm axle 1
59 rod 1
60 ALJ3T60 lower handle section 1
61 ALJ3T61 handle bumper 1
62 ALJ3T62 upper handle section 1
WARRANTY NOTICE
Warranty Policy — 1 Year
This service jack is covered under a 1 year warranty when
used as recommended. Only those items listed with a Part #
are available for purchase. For assistance with the operation
or the availability of replacement parts, contact our Parts
and Warranty Department at 1-800-879-7316. Please have
available a copy of your receipt, the model number of the
product, and specific details regarding
your question.
WARRANTY INFORMATION
We want to know if you have any concerns with our
products. If so, please call toll-free for immediate
assistance. Please do not call the store where you
purchased this product.
1-800-879-7316
Monday - Friday 9am to 5pm EST
P.O. Box 58, Travelers Rest, SC 29690
