Arcan ALTJ2T - Parts Drawing and Parts List

ALTJ2T 4 Rev: 04/14/2020

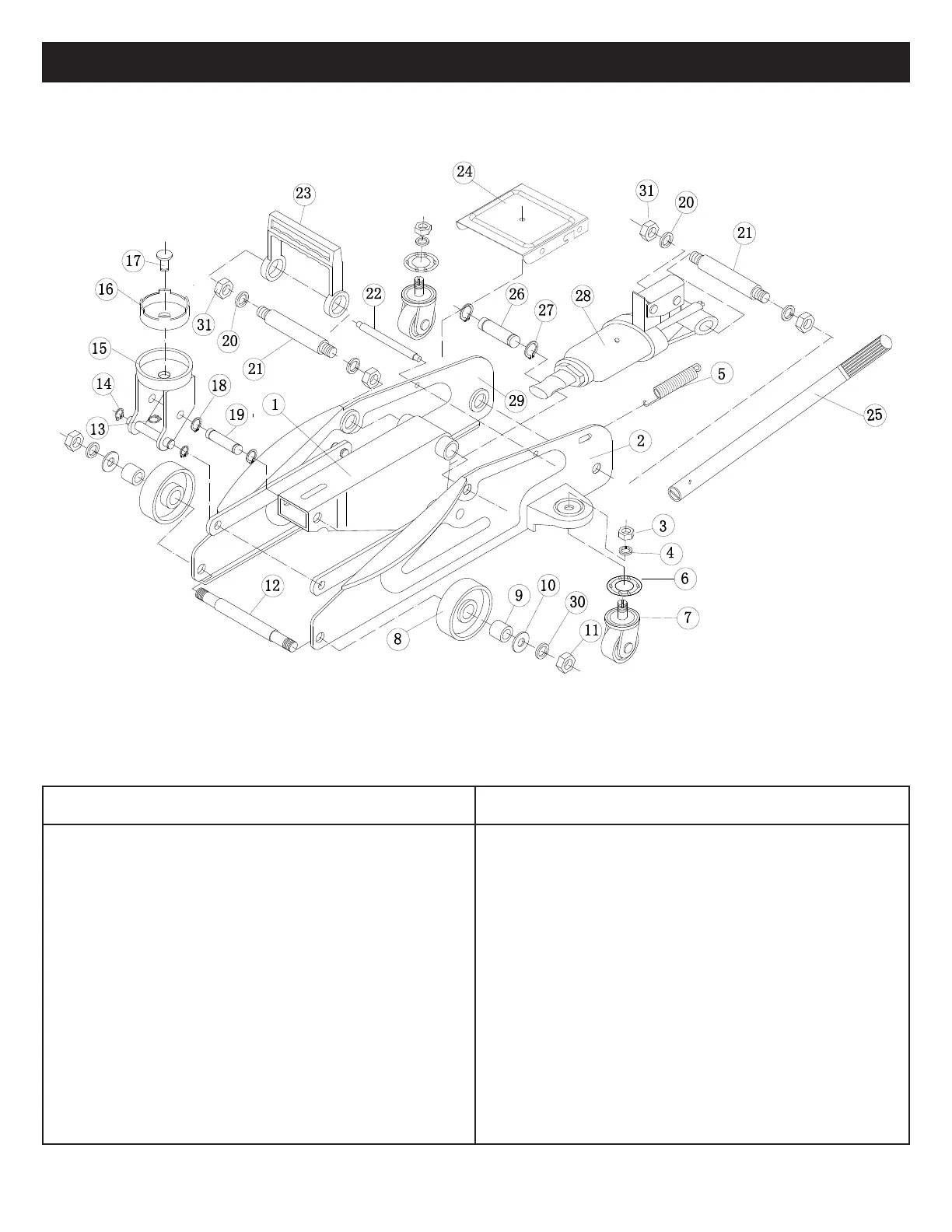

PARTS DRAWING AND PARTS LIST
ITEM
NO. DESCRIPTION PART NO. QTY
1 Lift arm 1
2 Left side plate 1
3 Nut M8 2
4 Spring washer 8 2
5 Return spring 1
6 Ball bearing 2
7 RS20045BK Caster Assembly – Black (incl #3, 4 & 6) 2
8 RS20033BK Front wheel - Black 2
9 Bushing 2
10 Washer 10 2
11 Nut 10 2
12 Front wheel axl 1
13 Spring washer 13 1
14 Spring washer 10 2
15 Saddle base 1
16 RS20037BK Saddle - Black 1
17 Saddle bolt 1
18 Spring washer 12 2
ITEM
NO. DESCRIPTION PART NO. QTY
19 Pin 1
20 Spring washer 12 4
21 Pivot pin 2
22 Cross bar 1
23 RS20040BK Carrying handle - Black 1
24 RS20043BK Cover plate - Black 1
25 RS20044BK Handle - Black 1
26 Connection pin 1
27 Spring washer 17 2
28 Power unit assembly 1
29 Right side plate 1
30 Spring washer 10 2
31 Nut 12 4
Product Label Kit RSALTJ2TPLK
Only items identified by part number are available separately.
