Arcan HJ3000 - Parts List and Diagram

HJ3000 5 rev. 05/08/2020

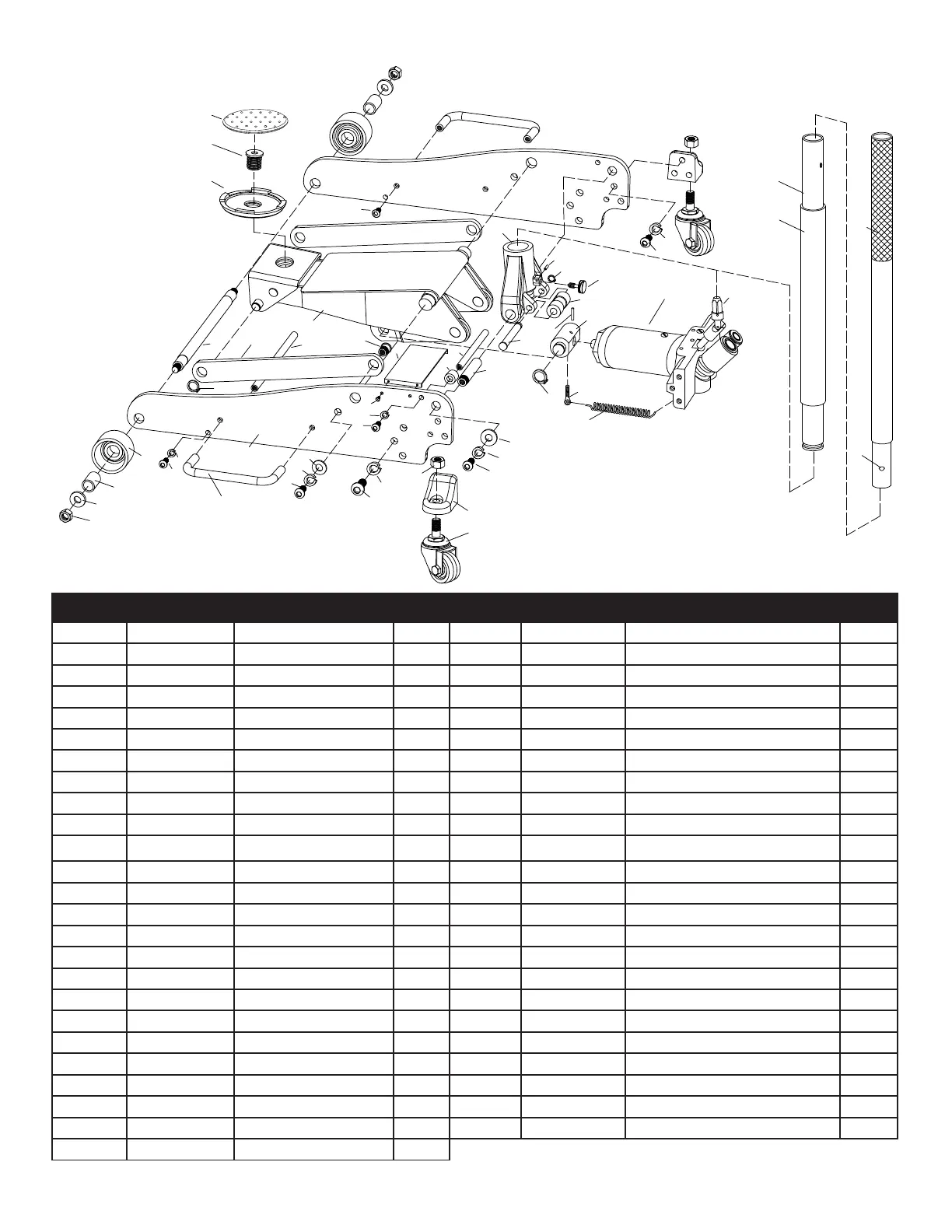

PARTS LIST AND DIAGRAM
ITEM NO PART NO DESCRIPTION QTY ITEM NO PART NO DESCRIPTION QTY
1 Locking Nut M12 4 26 RSHJ300026 Hydraulic Power Unit Assembly 1
2 Flat Washer 20 2 27 Retaining Ring 20 2
3 Front Wheel Bushing 2 28 Trunion 1
4 RS35T0SLV Front Wheel 2 29 Pin 4x40 1
5 Side Plate 2 30 Roller Bolt 1
6 Carrying Handle 2 31 Roller 1
7 Screw M8x25 4 32 RS35T13 Handle Yoke Screw 1
8 Washer 8 4 33 Retaining Ring 12 1
9 RS35T04 Retaining Ring 16 2 34 Spring Pin 3x14 1
10 Long Linkage 2 35 Screw M5x16 4
11 Front Wheel Axle 1 36 RS35T11SLV Handle Yoke 1
12 Covering plate 1 37 Handle Yoke Bolt 2
13 Spacer Bar 1 38 Stop Rod 1
14 Lift Arm Assembly 1 39 Rubber Guard 2
15 RS35T05ASLV Saddle 1 40 Screw 8x25 4
16 RS35T05ASLV Saddle screw 1 41 Linkage Bolt 2
17 Screw M10x20 4 42 Spring Washer 12 6
18 Tooth Washer 10 10 43 Screw M12x25 6
19 Flat Washer 10 2 44 RS35T05B Saddle Pad 1
20 Flat Washer 10 2 45 Trunion Screw 2
21 Rear Caster Bracket 2 46 RS35T19 Return Spring 2
22 RS35T22SLV Rear Caster Assembly 2 47 RS35T18 Release Valve Assembly 1
23 RS1300216 Spring Detent 1 48 RS35T20NL Handle Bumper 1
24 RS35T24SLV Lower Handle 1 49 Screw 10x25 6
25 RS35T25SLV Upper Handle 1
