Arcan XLS3000 - Parts List and Diagram

XLS3000 5 04/27/2023

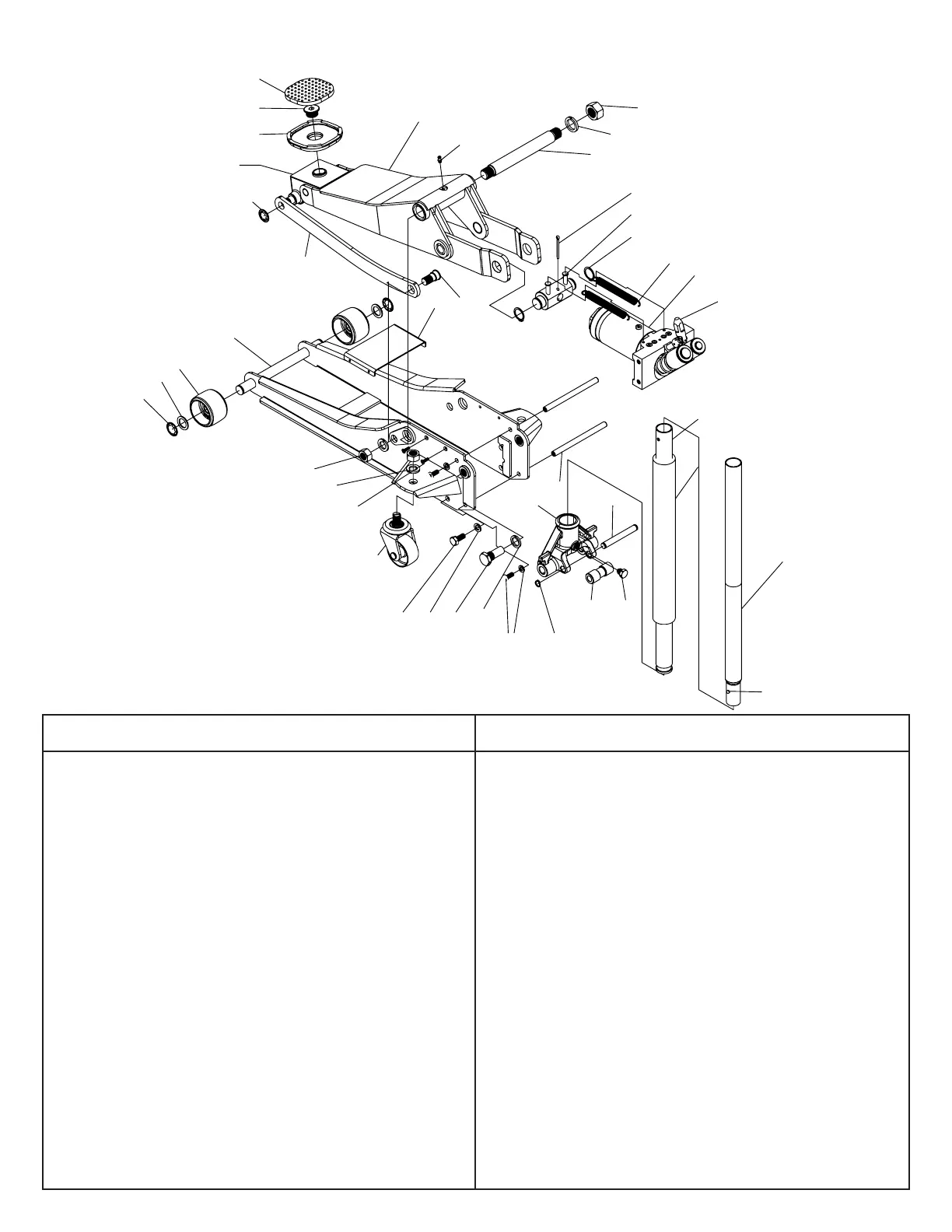

PARTS LIST AND DIAGRAM
1
2
3
4
5
6
7
9
8
10 11 12
13
14 15 16
21
22
23
26
27
28
29
30
31
33
43
32
38
41
40
39
37
36
34
35
17
19
20
18
25
24
42
ITEM
NO. PART NO. DESCRIPTION QTY
1 RS20000301 Push-On Retainer ring 20 2
2 RS20000302 Wheel Bushing 2
3 RS20000303 Front wheel 2
4 Chassis Assembly 1
5 Hex Nut 16mm 4
6 Lock Washer 16mm 4
7 Screw M5x0.8-16mm LG 4
8 Support Bar 2
9 RS20000309 Swivel Caster (incl. #5 & #6) 2
10 Hex Bolt M10x1.5-25mm LG 4
11 Lock Washer 10mm 4
12 Yoke Handle Bolt 2
13 Lock Washer 18mm 2
14 Hex Bolt M8x1.25-20mm LG 4
15 Lock Washer 8mm 2
16 Yoke Roller Pin 1
17 Retaining Ring 12mm 2
18 RS20000318 Yoke Handle Roller 1
19 Handle Yoke 1
20 RS20000320 Handle Set Screw 1
21 RS20000321 Upper Handle Assembly 1
22 RS20000322 Handle Bumper 1
ITEM
NO. PART NO. DESCRIPTION QTY
23 RS20000323 Lower Handle Assembly 1
24 RS20000324 Push Button 1
25 RS20000325 Release Assembly 1
26 RS20000326 HPU Assembly 1
27 RS20000327 Retraction Spring 2
28 Retainer Ring 25mm 2
29 Trunnion Assembly 1
30 Cotter Pin 4mm X 40mm LG 1
31 Pivot Pin 1
32 Grease fitting 1
33 Lock Washer 22mm 1
34 Guide Arm Bolt 2
35 Cover Plate 1
36 Guide Arm 2
37 Push-On Retaining
Ring 16mm 2
38 Lift Arm Assembly 1
39 RS20000339 Saddle 1
40 RS20000340 Saddle Screw 1
41 RS20000341 Rubber Saddle Pad 1
42 Saddle Base 1
43 Hex Nut 22mm 2
not shown RSA200003PLK Product Label Kit
