4.FUNCTION AND DESCRIPTION

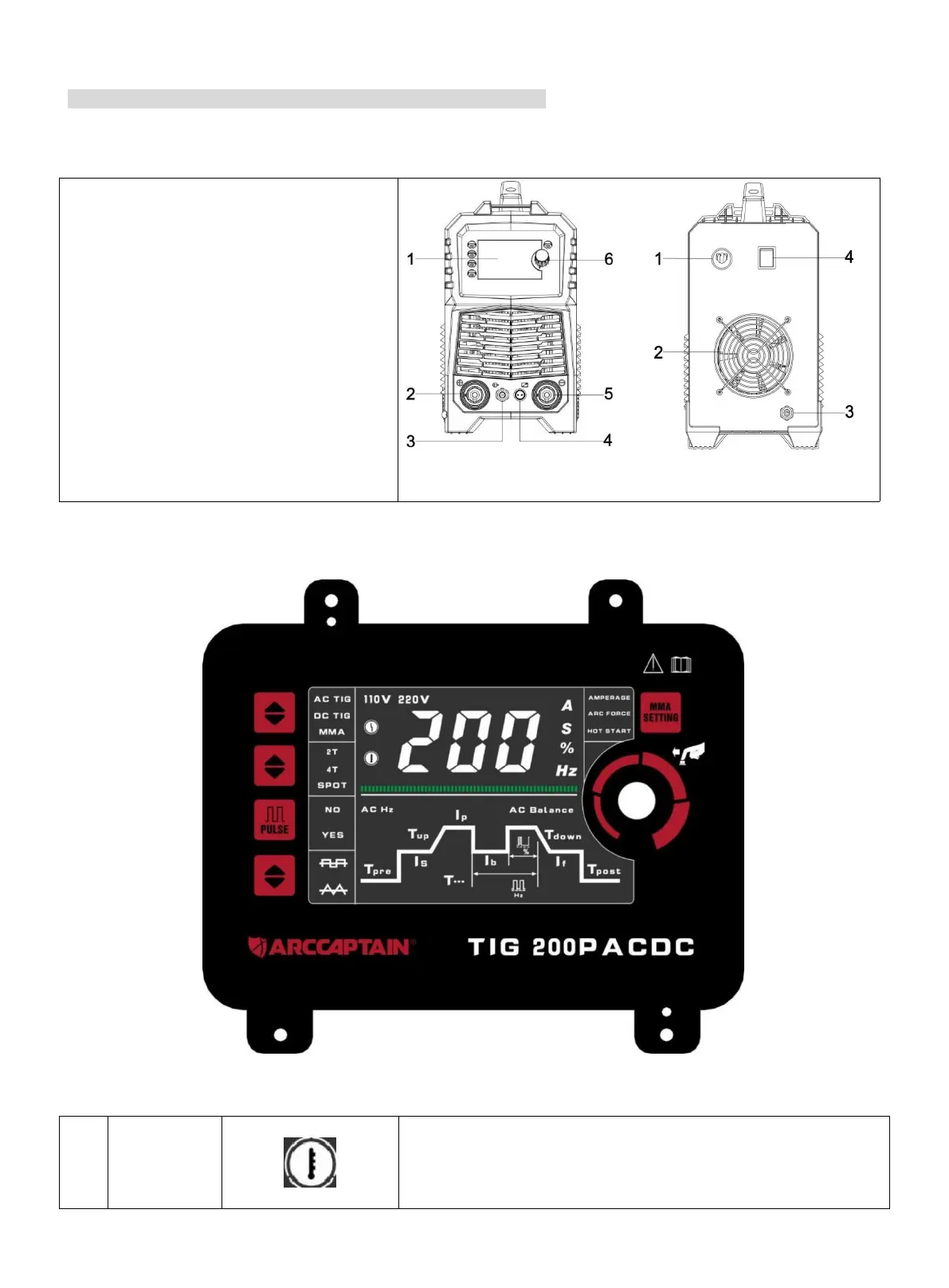

4.1 Panel Structure and Description
Pic1:
1. Digital plastic display panel
2.Positive output fast socket
3.TIG outlet interface
4.Gun control aviation socket
5. Negative output fast socket
6. Encoder
Pic2:
1. Input power cord
2.Cooling fan
3. TIG inlet nozzle
4.Power switch
Pic 1 Pic 2
4.2 TIG200PACDC Panel
Pic 3 Plastic display panel
Function table of plastic display panel
1 Protection
indicator
Overheat indicator, indicating that the temperature of internal
components is too high and the welder displays overheat
protection.
