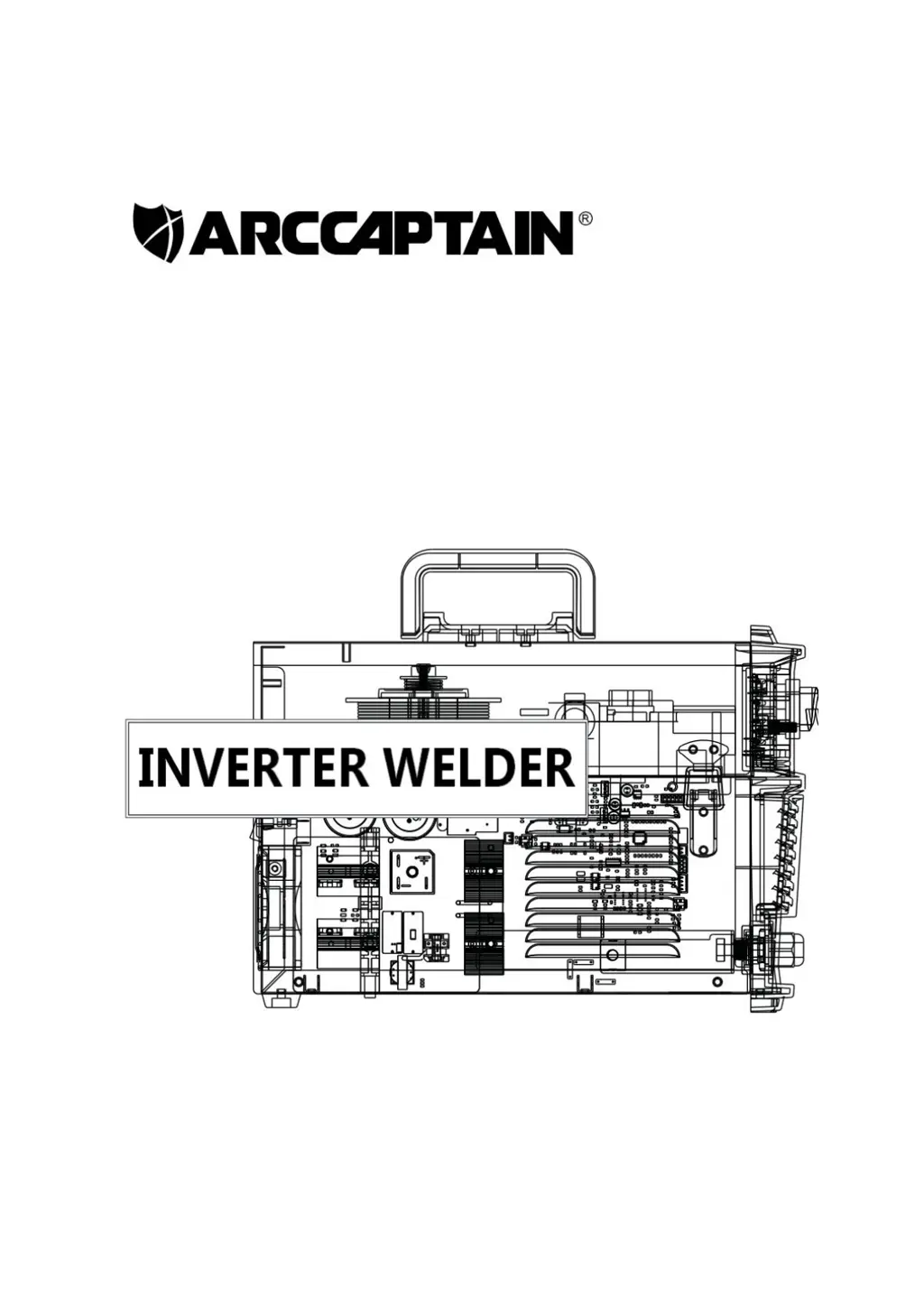

Inverter Welding Machine
MIG130
User Manual
www.arccaptain.com
Digital Welder Expert, Know You More
https://www.arccaptain.com

Table of Contents

Questions and Answers

  • M
    Melanie FrenchAug 17, 2025
    Why is the welding current unstable on my ARCCAPTAIN Welding System?
    • B
      Brandi PalmerAug 18, 2025
      If the welding current of your ARCCAPTAIN Welding System is unstable, several factors could be the cause. It may be due to a failing wire feeder that requires repair. Alternatively, the control PCB or wire feeding power PCB inside the machine might be faulty and need replacement. Ensure the pressure arm on the wire feeder is properly adjusted to achieve the correct pressure. Verify that the drive roll matches the wire size being used. Check the welding torch's contact tip and wire-feeding tube for wear and replace if necessary. Finally, ensure you are using a good quality electrode.
  • L
    lamjohnAug 20, 2025
    What to do if the wire sputters and sticks to the workpiece with ARCCAPTAIN MIG130?
    • C
      christian34Aug 20, 2025
      If the wire sputters and sticks to the workpiece when using your ARCCAPTAIN Welding System, it could be due to a couple of reasons. First, the wire might be damp; if so, switch to dry wire and ensure it's stored in a dry location. Another cause could be that the wire feed speed is too fast. In this case, simply reduce the wire feed speed.
  • A
    Alyssa KingAug 22, 2025
    How to fix a bead that is too thick on my ARCCAPTAIN MIG130?
    • M
      Mary WatsonAug 23, 2025
      If your ARCCAPTAIN Welding System's weld bead is too thick, it might be because your travel speed is too slow or inconsistent; try increasing and maintaining a constant travel speed. Another possibility is that the output heat range is too high; if this is the case, set the knob to low.
  • M
    Mindy LloydAug 26, 2025
    Why does the edge of weld have ragged depressions with ARCCAPTAIN MIG130?
    • P
      Paula PriceAug 26, 2025
      If the edge of your weld has ragged depressions when using your ARCCAPTAIN Welding System, it could be due to several factors. Your travel speed might be too fast, so try reducing it. The wire feed speed could also be too high; if so, reduce the wire feed speed. Finally, the output heat range may be too high; in that case, set the knob to low.
  • V
    Vanessa WebbAug 28, 2025
    What to do if the bead does not penetrate base metal with ARCCAPTAIN MIG130 Welding System?
    • M
      michelleyatesAug 28, 2025
      If the bead from your ARCCAPTAIN Welding System does not penetrate the base metal, it may be because your travel speed is inconsistent. Decrease and maintain a constant travel speed. Alternatively, the output heat range may be too low, so set the knob to high.
  • M
    Margaret LaneAug 30, 2025
    Why is there no current after turning on my ARCCAPTAIN MIG130?
    • T
      Tammy FoxAug 30, 2025
      If there is no current after turning on your ARCCAPTAIN Welding System, first check if the power cord is well connected and reconnect it if necessary. If the issue persists, the welding machine may have failed, and you should ask professionals to check it.
  • S
    susankirbySep 2, 2025
    What does it mean if the overheating indicator is on in ARCCAPTAIN Welding System?
    • J
      Joe MendezSep 2, 2025
      If the overheating indicator is on for your ARCCAPTAIN Welding System, it means the overheating protection circuit is active. The system can be recovered after the machine cools down.
  • D
    debra36Sep 5, 2025
    Why doesn't the fan work during welding on my ARCCAPTAIN MIG130 Welding System?
    • W
      William WhiteheadSep 5, 2025
      If the fan does not work during welding with your ARCCAPTAIN Welding System, it could be due to a couple of reasons. First, check if the power cord for the fan is properly connected and reconnect it if needed. If the issue continues, auxiliary power may have failed, and you should ask professionals to check it.
  • P
    Paul MartinezSep 8, 2025
    What to do if there is gas output but the wire feeder doesn't work on ARCCAPTAIN MIG130?
    • V
      Victoria RivasSep 8, 2025
      If there is output current when pushing the torch trigger to feed gas on your ARCCAPTAIN Welding System, but the wire feeder does not work, it indicates that the wire feeder is clogged. Unclog it to resolve the issue.
  • L
    Laura JohnsonSep 12, 2025
    What to do if there is no response when pushing the torch trigger on ARCCAPTAIN MIG130 Welding System?
    • K
      Kimberly CamposSep 12, 2025
      If there is no response when pushing the torch trigger and the alarm indicator does not illuminate on your ARCCAPTAIN Welding System, it suggests that the torch trigger has failed. You should repair or replace the welding torch.
