7
Code Requirements for Electrical Input Connections
This welding machine must be connected to a power source in accordance with applicable
electrical codes.
The National Electrical Code provides standards for amperage handling capability of supply
conductors based on duty cycle of the welding source.
If there is any question about the installation meeting applicable electrical code
requirements,consult a qualified electrician.
Do not remove the power cord ground prong.
3.3 Features

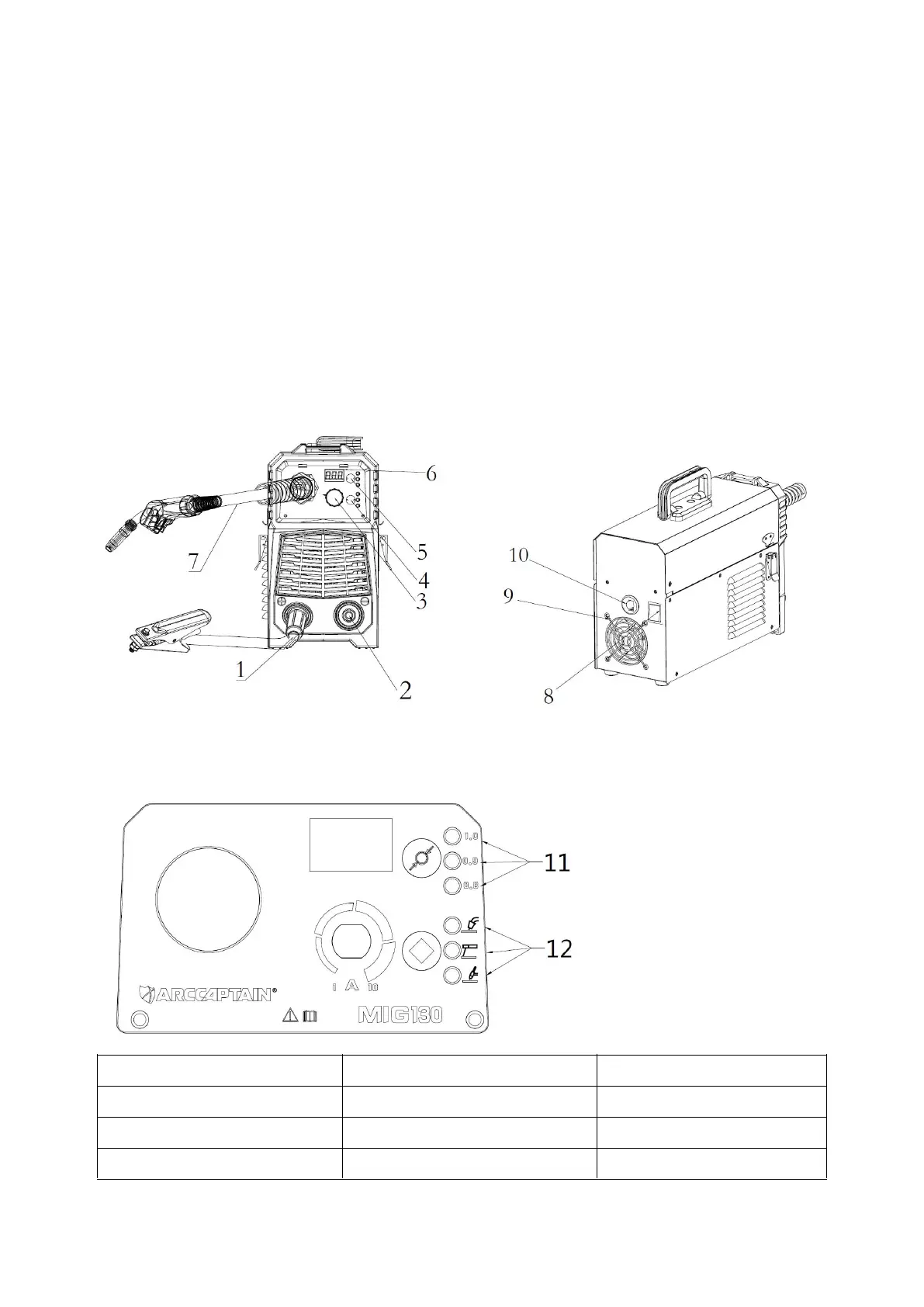

[1] Front Panel Layout Description [2]Back Panel Layout Description
[3]Operation interface Description
1.Positive Welding Terminal(+) 2.Negative Welding Terminal(-) 3. Synergic knob
4.Welding mode button 5.Wire selection button 6.Display Meter
7.MIG Torch 8.Power Switch 9. Cooling FAN
10. Power Input Cable 11.Welding mode MIG/MMA/TIG LED 12.Wire selection 0.8/0.9/1.0 LED
