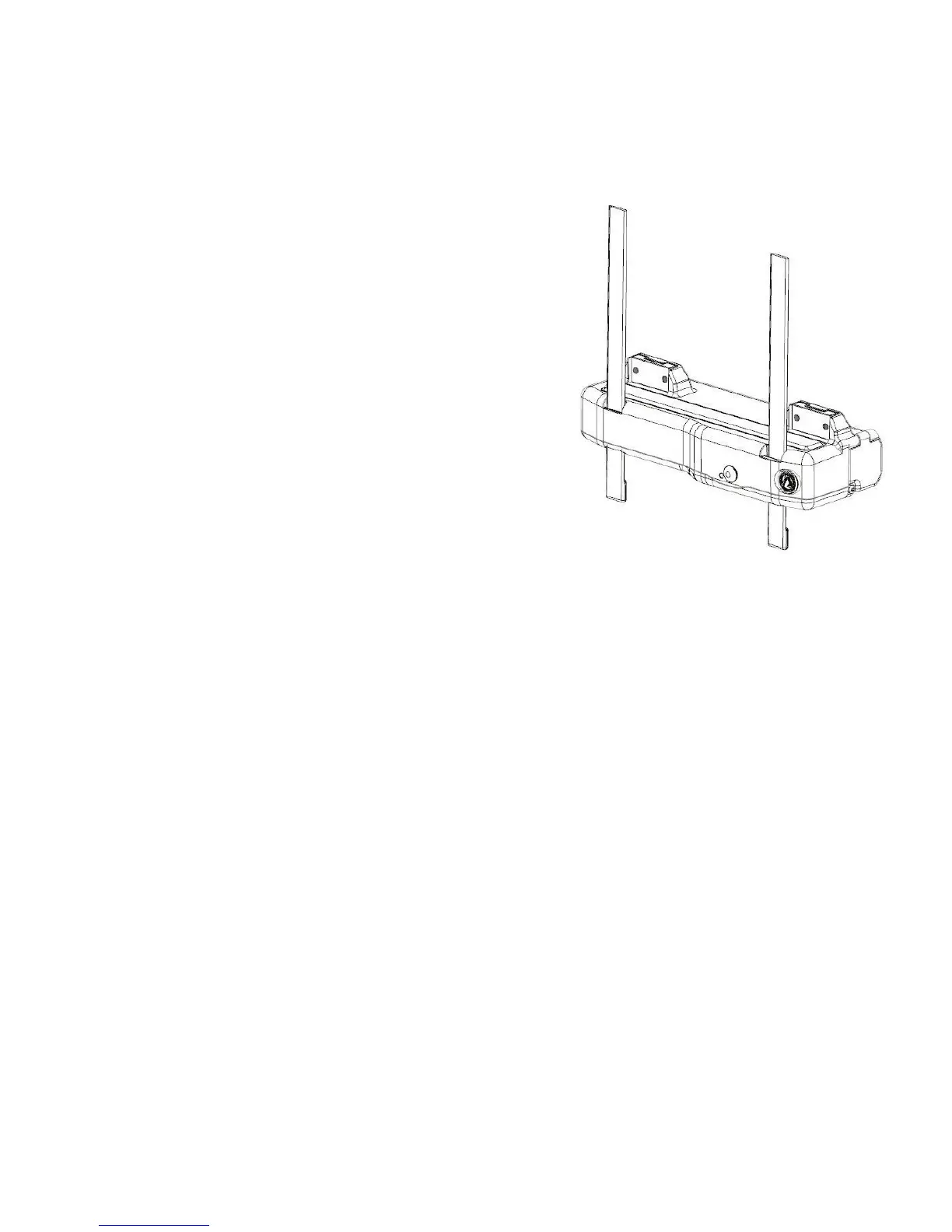

3. P-straps
• Insert the at end of each P-strap into
the front slot-holes and pull snug.
• Place the provided aluminum clamps in the
mounting bosses on the top of the shifter.
• Loosely thread screws through the mounting
bosses and into the aluminum clamps.
Step 4: Mount the Shifter
1. Bike Preparation
• If removing the rear wheel will make installation easier, do so.
• Disconnect the old shift cable, housing and ferrule from the rear derailleur.
• Remove the cable, housing, and old shifter pod from your handlebar.
2. Install
• Thread the provided shift cable through the derailleur path but DO NOT
TIGHTEN the shift cable on the derailleur at this point. Take care to seat the
end of the ferrule/bowden housing into the derailleur.
• Place the shifter on the bottom of the chainstay.
