GLASS DOOR REMOVAL
CAUTION: Do not operate this appliance with broken glass
Do not attempt to remove the glass door when the appliance is hot.
1. Remove the TOP louver by pulling the entire louver assembly towards you.
2. Open up the BOTTOM louver assembly to expose the control valve.
3. Locate the 2 buckle latches under the glass door frame (Fig.1) and pull down the lever on
the back of the latches to release them.
4. Unhook the latches from the bottom of the door and swing the bottom of the door towards
you then lift up on the whole door to unhook the top of the door. Carefully remove the
door and put it away at a safe location where it cannot be scratched or damaged.
Replacing the Glass Door
The reverse procedure of Removing the Glass Door.
IF YOUR GLASS BREAKS
WARNING:
Do not substitute glass components with other material types.
Do not abuse the glass doors such as striking or slamming shut.
Do not use abrasive glass cleaners.
Do not clean the glass when hot.

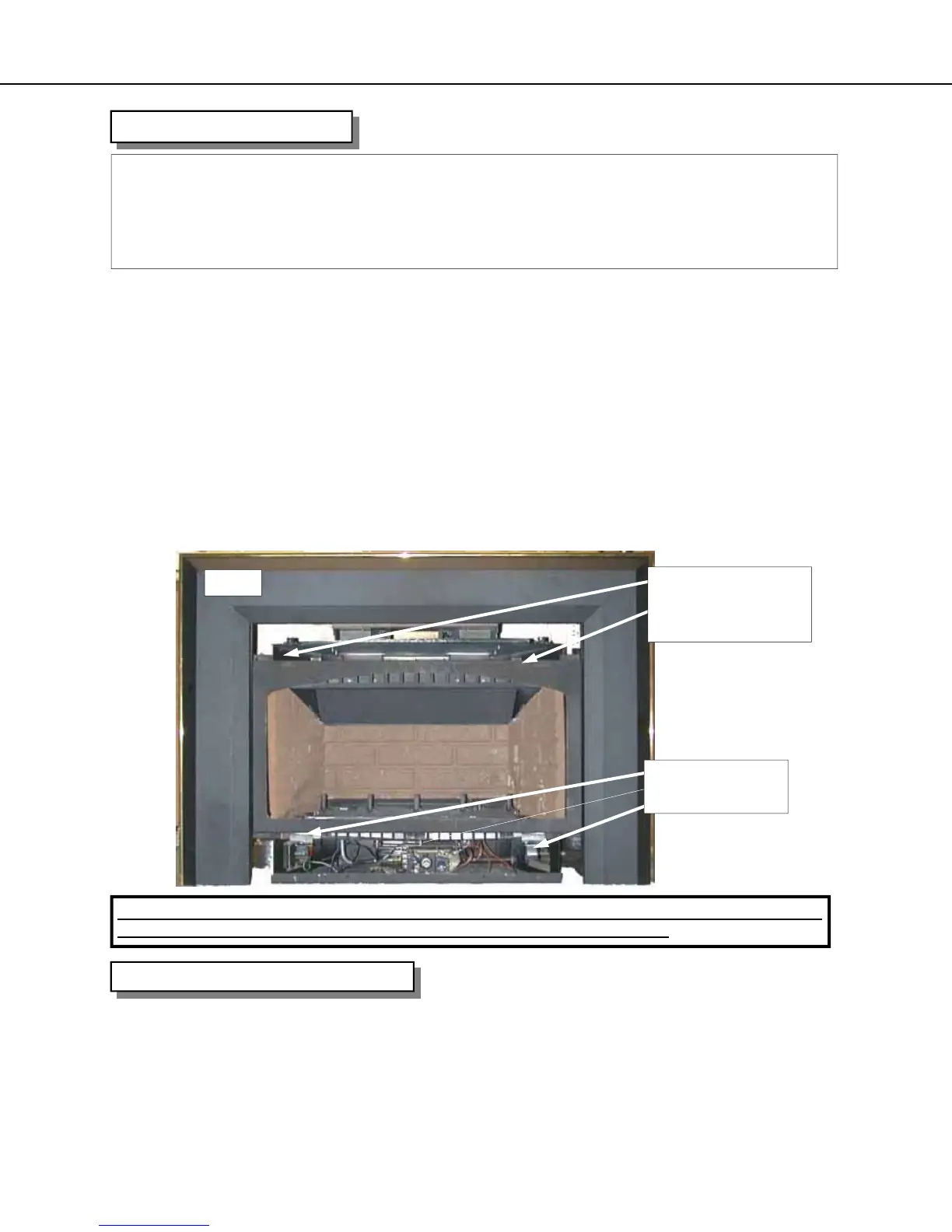

Fig. 1.
LOCATING TABS
(UPPER LOUVERS
REMOVED)
DOOR LATCHES
(SHOWN OPEN)
In the event your glass cracks or breaks, Archgard recommends that a new door assembly be
ordered to replace the original door.
• Remove door as per the instructions above.
• Replace with new door assemblies.
NOTE: the NEW door will omit some odor when the appliance is re-lit and the odor will dissipate
after the gasket material within the door has cured.
WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replace-
ment of the glass should be done by a licensed or qualified service person.
