Archgard Optima 40 - Appliance Dimensions and Minimum Requirements for Fireplace Dimensions

Optima 40 7

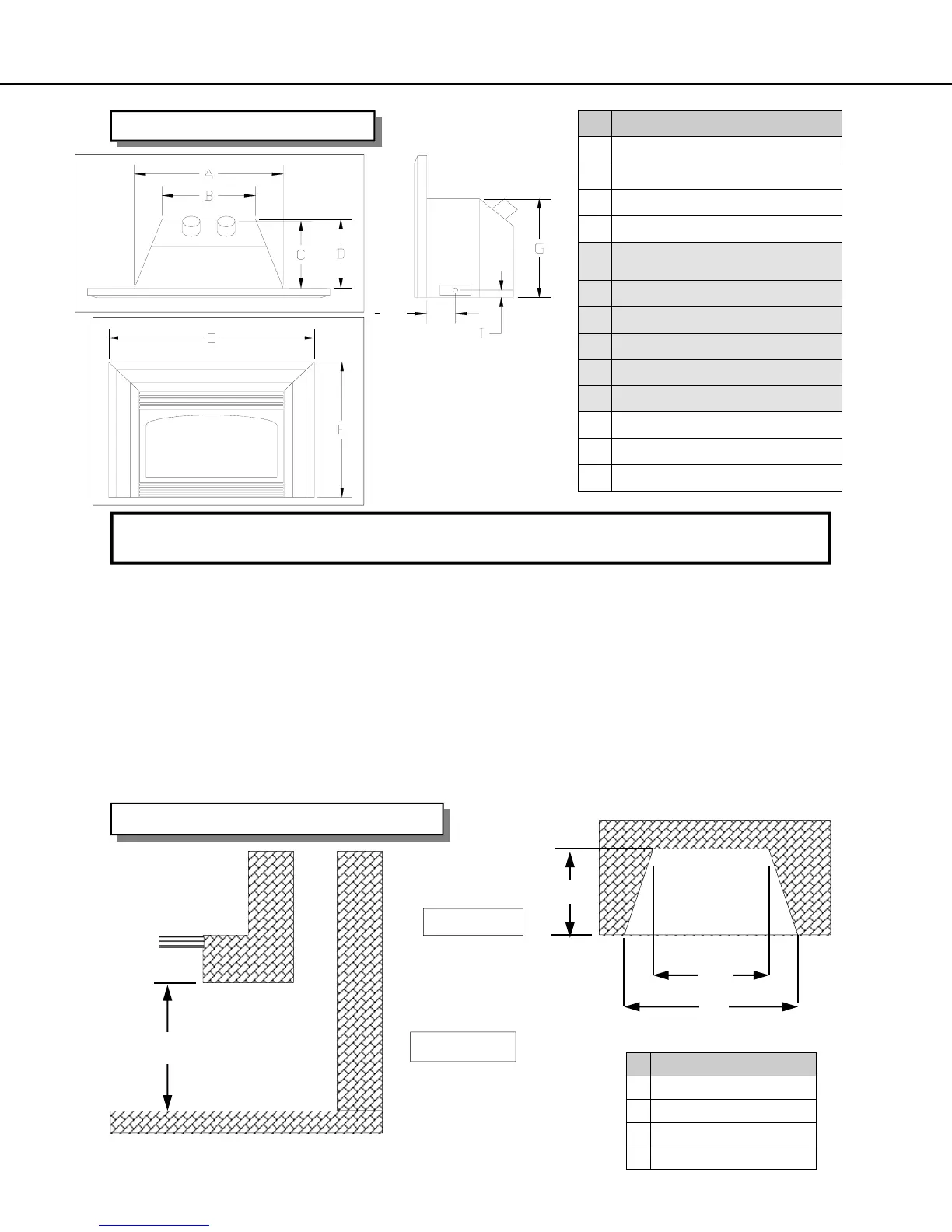

MINIMUM FIREPLACE DIMENSIONS
J
SIDE VIEW
TOP VIEW
L
M
K
APPLIANCE DIMENSIONS
H
DIMENSIONS
A 28” (711 mm)
B 18 ½” (470 mm)
C 14” (356 mm)
D 14 ⅛” (359 mm
DSK-40 or ESK-40
(STANDARD SURROUND)
E 44” (1118 mm)
F 29 ⅝” (752 mm)
LSK-40 (LARGE FLAT SURROUND)
E 47 ¼” (1200 mm)
F 31 ⅜” (797 mm)
G 22 ⅜” (568 mm)
H 3 ¾” (93 mm)
I 1 ¼” (32 mm)
DIMENSIONS
J 22 ½” (572 mm)
K 15 ¾” (400 mm)
L 19” (483 mm)
M 29 ⅝” (752 mm)
Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
The installer must mechanically attach the marking supplied with the gas fireplace insert to the inside of the firebox
of the fireplace into which the gas fireplace insert is installed.
Cutting of any sheet-metal parts of the fireplace, in which the gas fireplace insert is to be installed, is prohibited.
If the factory-built fireplace has no gas access hole (s) provided, an access hole of 1 1/2” (37.5 mm) or less may be
drilled through the lower sides or bottom of the firebox in a proper workmanship like manner. This access hole
must be plugged with non-combustible insulation after the gas supply line has been installed.
The fireplace flue damper can be fully blocked open or removed for installation of the gas fireplace insert.
The fireplace and fireplace chimney must be clean and in good working order and constructed of non-combustible
materials. The chimney cleanouts must fit properly.
Refractory, glass doors, screen rails, screen mesh and log grates can be removed from the fireplace before install-
ing the gas fireplace insert.
Smoke shelves, and baffles may be removed if attached by mechanical fasteners. Trim panels shall not seal venti-
lation openings in the fireplace.
