Arduino® Nano ESP32
6 / 20 Arduino® Nano ESP32 Modified: 17/07/2023
Functional Overview

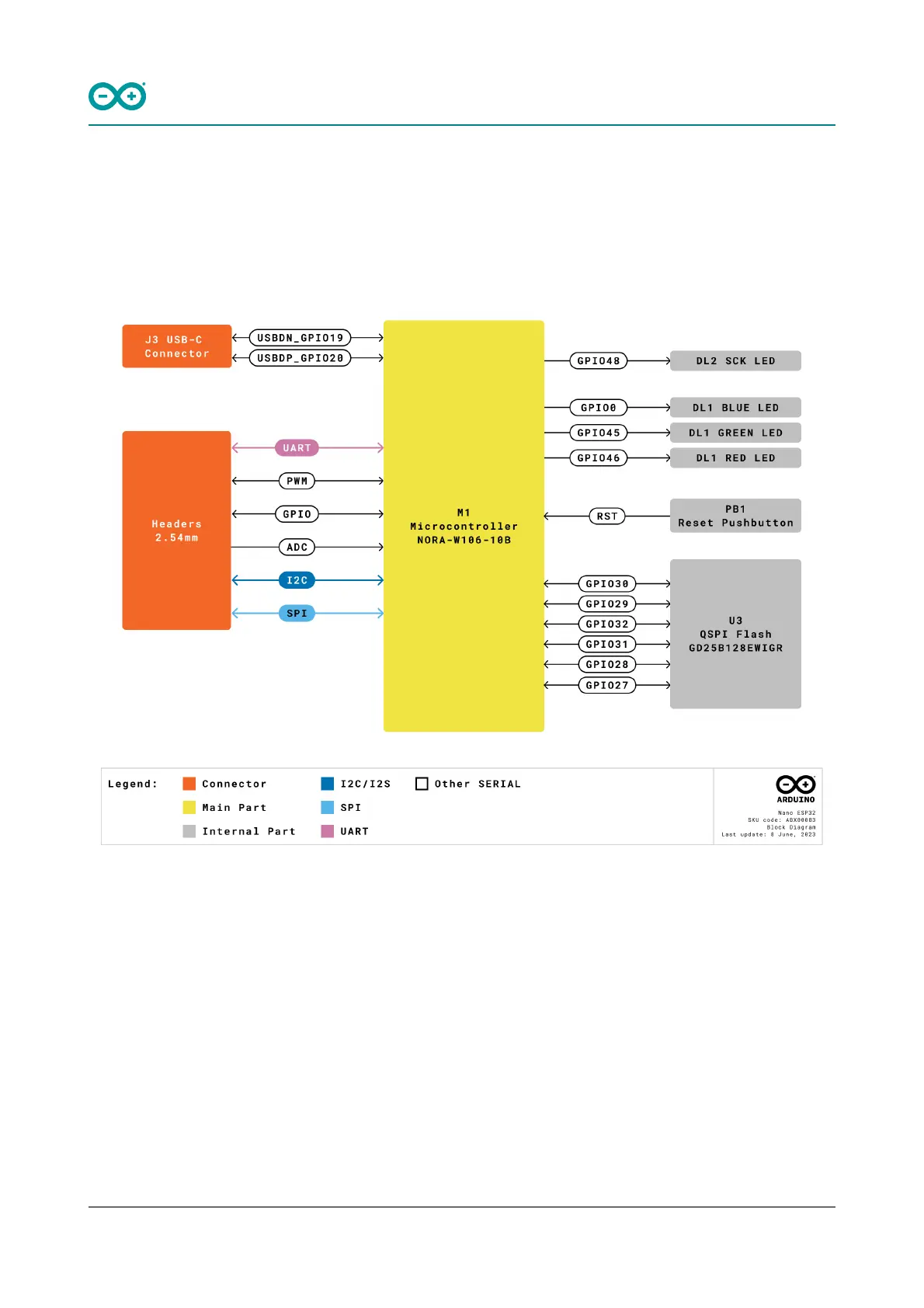

4 Block Diagram
Arduino Nano ESP32 Block Diagram

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Arduino Nano ESP32 and is the answer not in the manual?

Arduino Nano ESP32 Specifications

General IconGeneral
MicrocontrollerESP32-S3
Flash Memory16 MB
Digital I/O Pins14
Analog Input Pins8
Operating Voltage3.3 V
Input Voltage (VIN)6-21V
DC Current per I/O Pin40 mA
Dimensions18 x 45 mm
USBUSB-C
Wi-Fi802.11 b/g/n
Architecture32-bit
Clock Speed240 MHz
CommunicationUART, SPI, I2C
BluetoothBluetooth® LE
