Arduino® Nano ESP32
7 / 20 Arduino® Nano ESP32 Modified: 17/07/2023
5 Board Topology
5.1 Front View

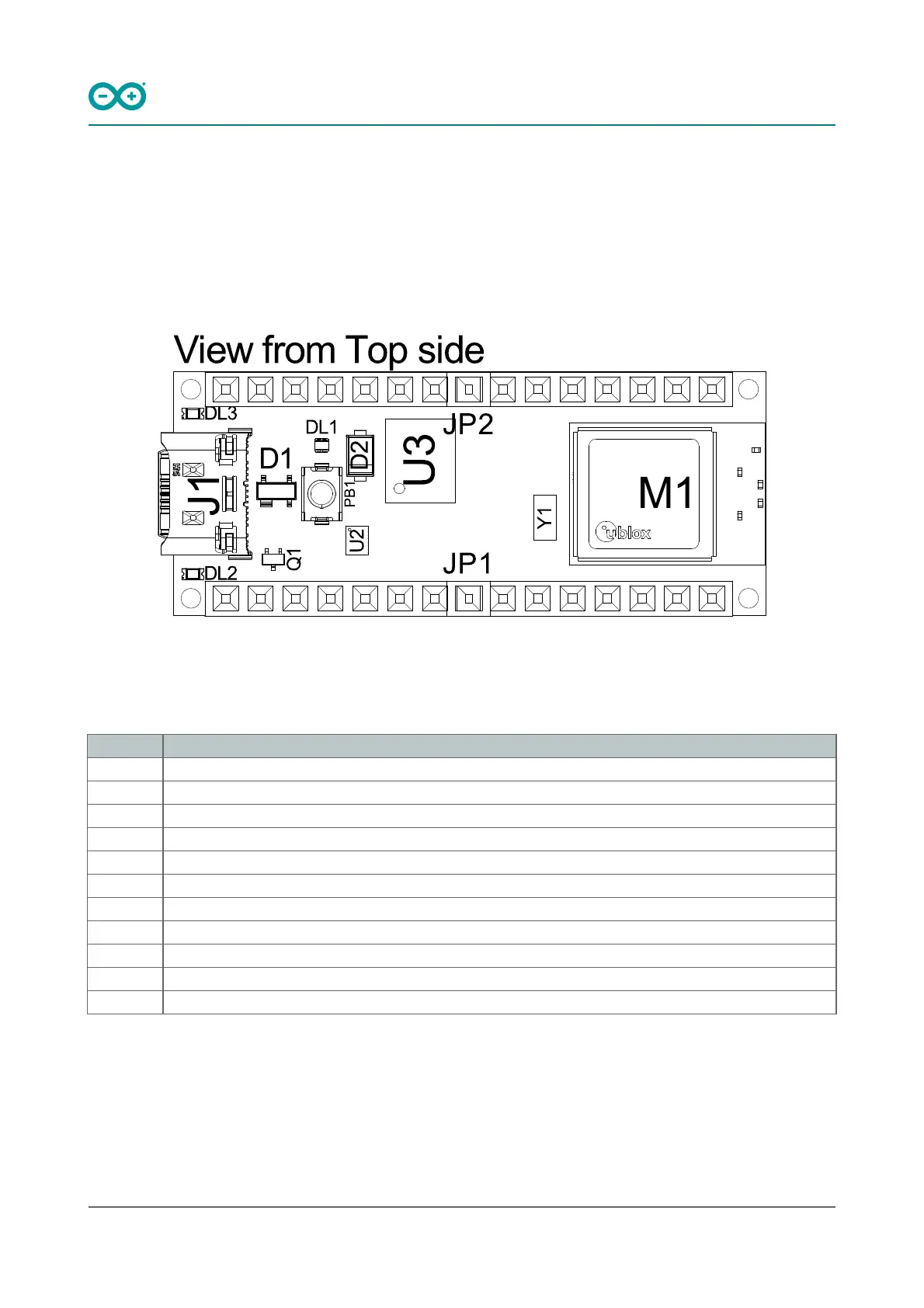

Top View of Arduino Nano ESP32
Ref. Description
M1 NORA-W106-10B (ESP32-S3 SoC)
J1 CX90B-16P USB-C® connector
JP1 1x15 analog header
JP2 1x15 digital header
U2 MP2322GQH step down converter
U3 GD25B128EWIGR 128 Mbit (16 MB) ext. flash memory
DL1 RGB LED
DL2 LED SCK (serial clock)
DL3 LED Power (green)
D2 PMEG6020AELRX Schottky Diode
D3 PRTR5V0U2X,215 ESD Protection

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Arduino Nano ESP32 and is the answer not in the manual?

Arduino Nano ESP32 Specifications

General IconGeneral
MicrocontrollerESP32-S3
Flash Memory16 MB
Digital I/O Pins14
Analog Input Pins8
Operating Voltage3.3 V
Input Voltage (VIN)6-21V
DC Current per I/O Pin40 mA
Dimensions18 x 45 mm
USBUSB-C
Wi-Fi802.11 b/g/n
Architecture32-bit
Clock Speed240 MHz
CommunicationUART, SPI, I2C
BluetoothBluetooth® LE
