Arduino® Portenta H7 Lite Connected
8 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022
Component Details
Programmable I/O voltage
Integrated Li-Po/Li-lon Battery
charger
2 Ratings
2.1 Recommended Operating Conditions
Symbol Description Min Max
Conservative thermal limits for the whole board: -40 °C (-40 °F) 85 °C (185 °F)
2.2 Power Consumption
Symbol Description Min Typ Max Unit
VINMax Maximum input voltage from VIN pad -0.3 - xx V
VUSBMax Maximum input voltage from USB connector -0.3 - xx V
PMax Maximum Power Consumption -xx - xx mW

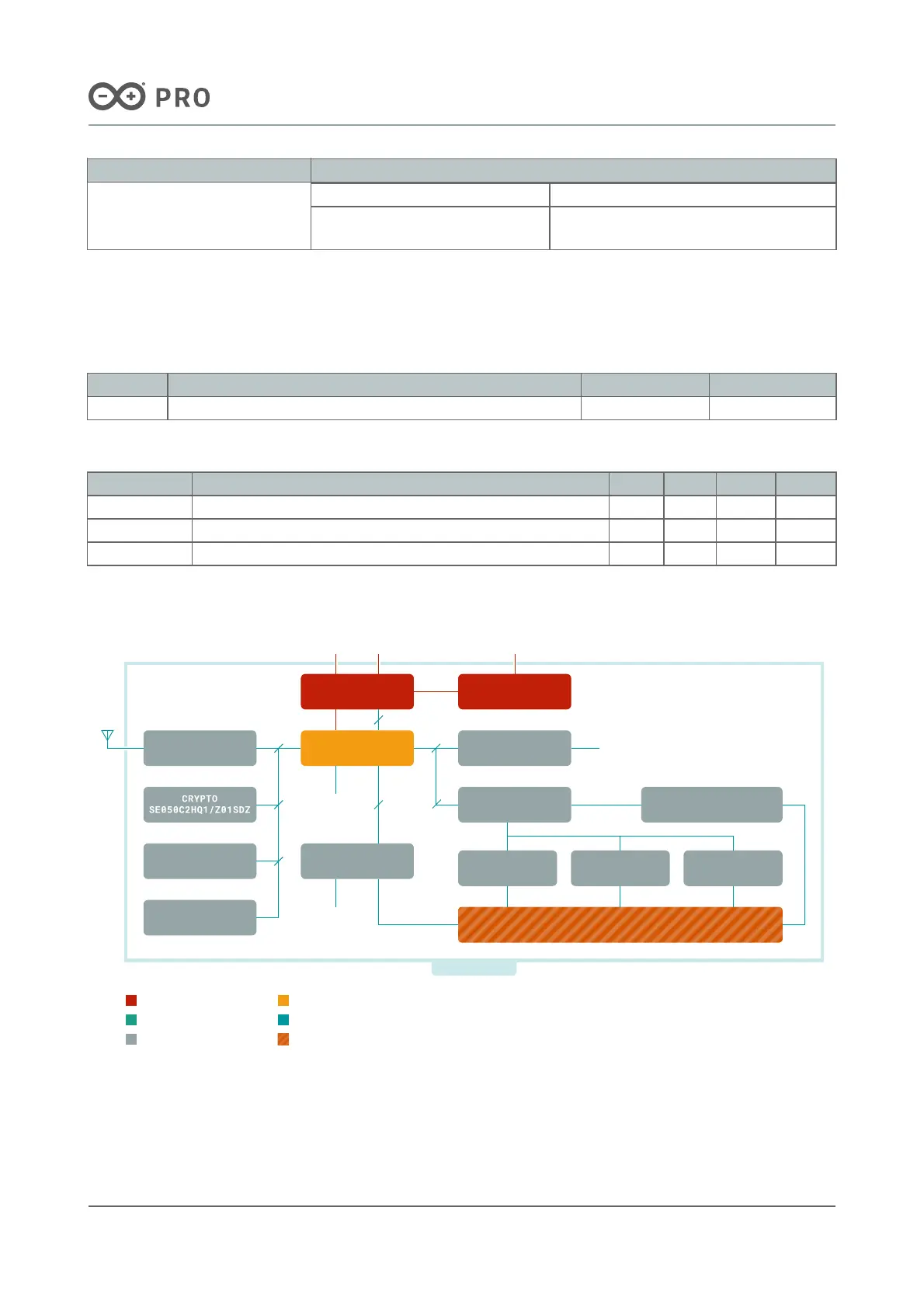

2.3 Block Diagram
Power
LED
Internal Parts
Microcontroller
Connectors
Data Communication
VBATVIN VUSB
27MHz
PMIC
MC34PF1550A0EP
Fuel Gauge Bat
MAX1726
Microcontroller
STM32H747XIH6
WiFi
LBEE5KL1DX-883
ATECC608A
FLASH
MX25L12833FZ2I
USB3320C
ETH
LAN8742AI
MIPI-DSI bridge
ANX7625
EMI Filter
PCMF2USB3B/CZ
EMI Filter
PCMF2USB3B/CZ
EMI Filter
PCMF2USB3B/CZ
PWR SWITCH
NX18P3001UKZ
32KHz
25MHz
J3 USB-C
Portenta H7
Block diagram
