Arduino Portenta H7 Series User Manual

Arduino® Portenta H7 Lite Connected
9 / 20 Arduino® Portenta H7 Lite Connected Modified: 11/05/2022
3 Connector Pinouts

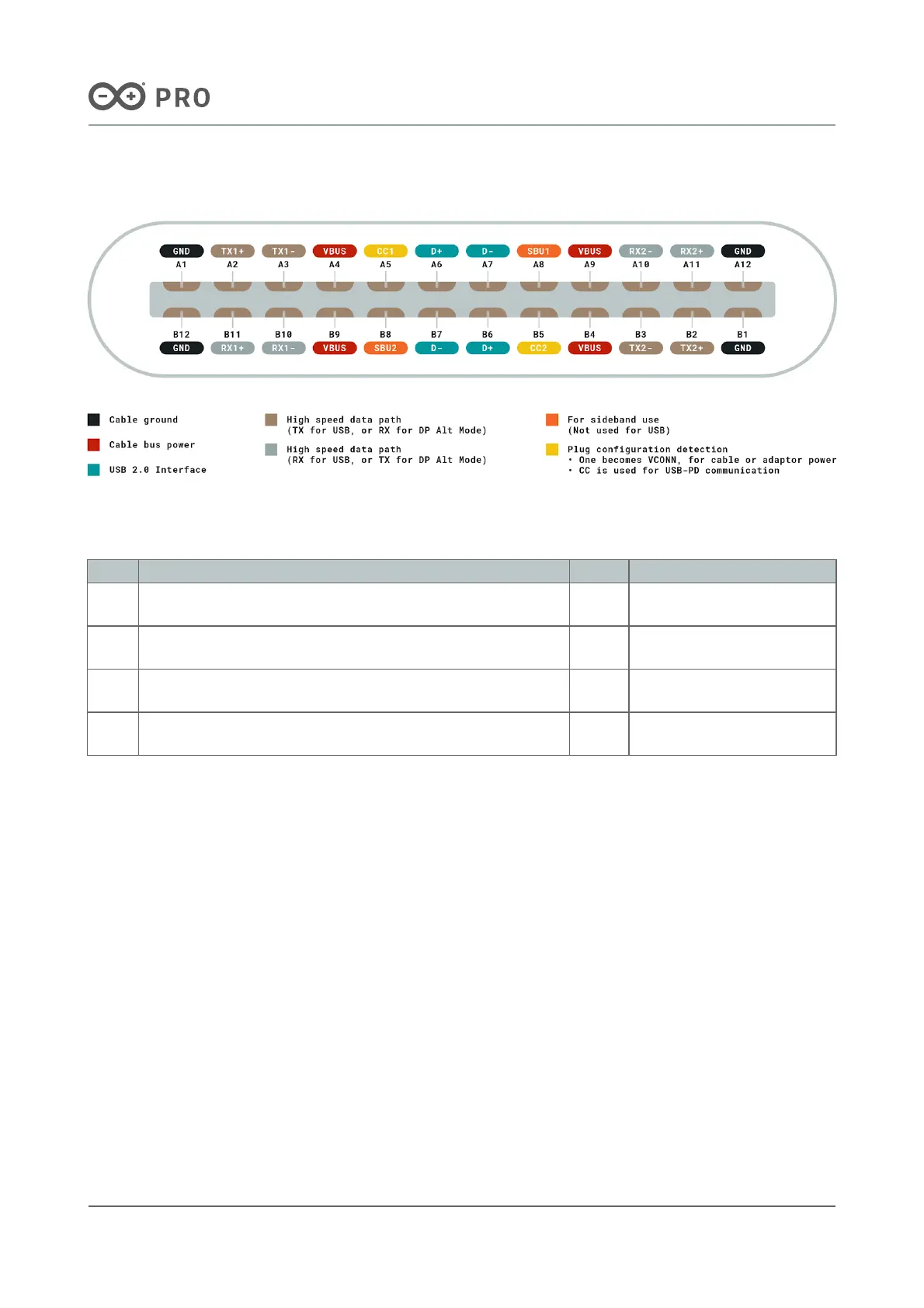

USB-C Pinout
3.1 USB-C
Pin Description Pin Description
GND Cable Ground
TX1 +/-
TX2 +/-
High speed data path (TX for
USB, or RX for DP Alt Mode)
VBUS Cable bus power
RX1 +/-
RX2 +/-
High speed data path (TX for
USB, or RX for DP Alt Mode)
D+/D- USB 2.0 Interface
SBU1
SBU2
For sideband use (Not used
for USB)
CC1
CC2
Plug configuration detection * One becomes VCONN for cable
or adaptor power * CC is used for USB-PD communication
3.2 High Density Connector

Arduino Portenta H7 Series Specifications

General

Processor	Dual-core Arm Cortex-M7 and Cortex-M4
Clock Speed	480 MHz (Cortex-M7), 240 MHz (Cortex-M4)
Flash Memory	2 MB
SRAM	1 MB
Operating Voltage	3.3V
Input Voltage (recommended)	5V
EEPROM	No
Operating Temperature	-40°C to +85°C
Dimensions	66.04 mm x 25.4 mm
RAM	8 MB SDRAM
Analog Output Pins	2
Connectivity	WiFi, Bluetooth, Ethernet
WiFi	802.11 b/g/n
Bluetooth	Bluetooth 5
USB	USB 2.0
Ethernet	10/100 Ethernet
Camera Interface	Parallel camera interface
CAN	Yes
SPI	Yes
I2C	Yes
UART	Yes
