4 Replacement of a panel within a switchgear system
GHA l Switchgear extension and replacement of a panel

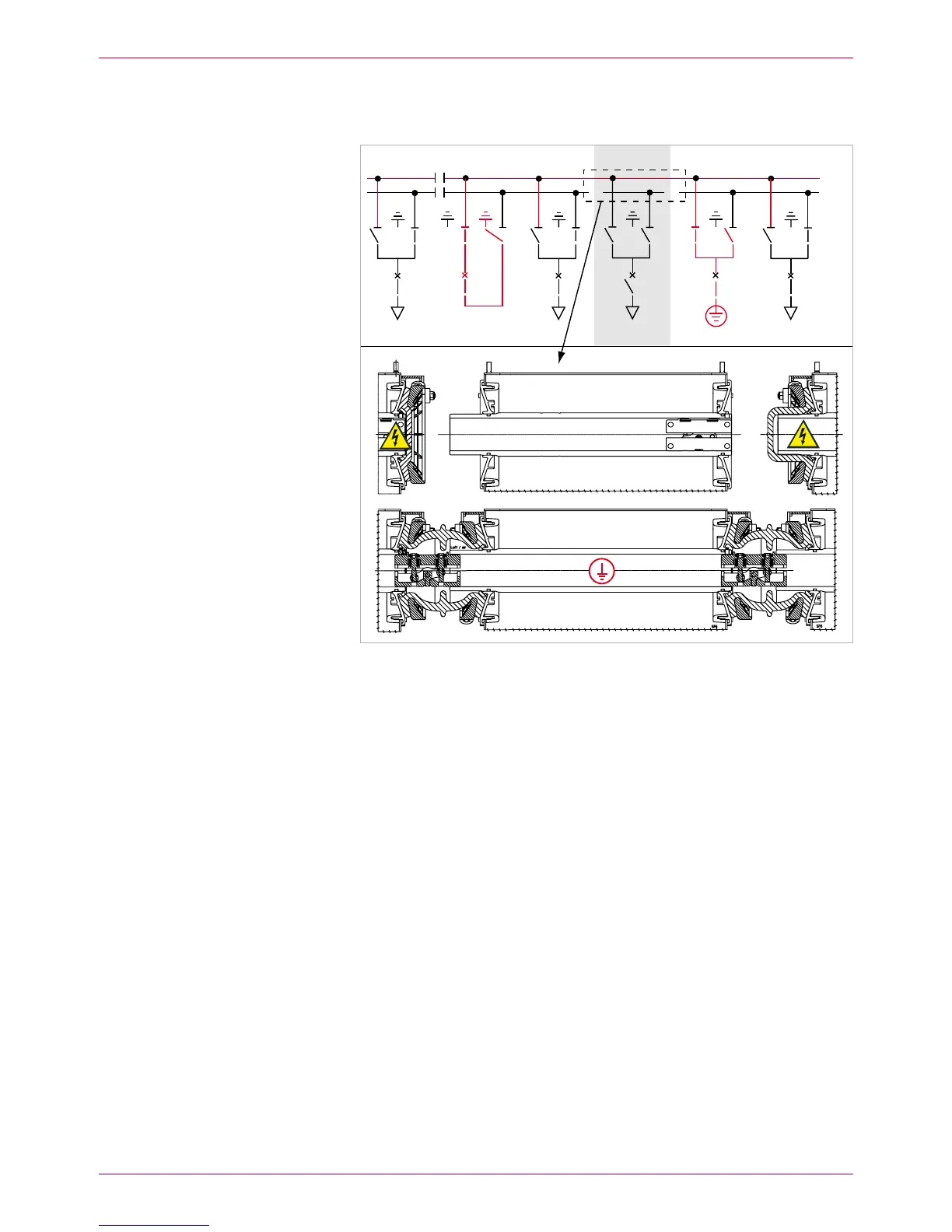

Re-establish all 19. BB1 connections to the adjacent panels (6 x) completely
(Fig. 23). Release the silicone sleeves and fasten them to the adjacent
panel (see Assembly Instructions).
SS2
SS1
1
56 7
8
9
BB2 (top)
BB1 (rear)
Fig. 23
Panel 7: busbar 1 with full continuity and ready to operate again, but still earthed.
Busbar 2 in operation.
BB1
BB2
