Section 4. CONNECTION

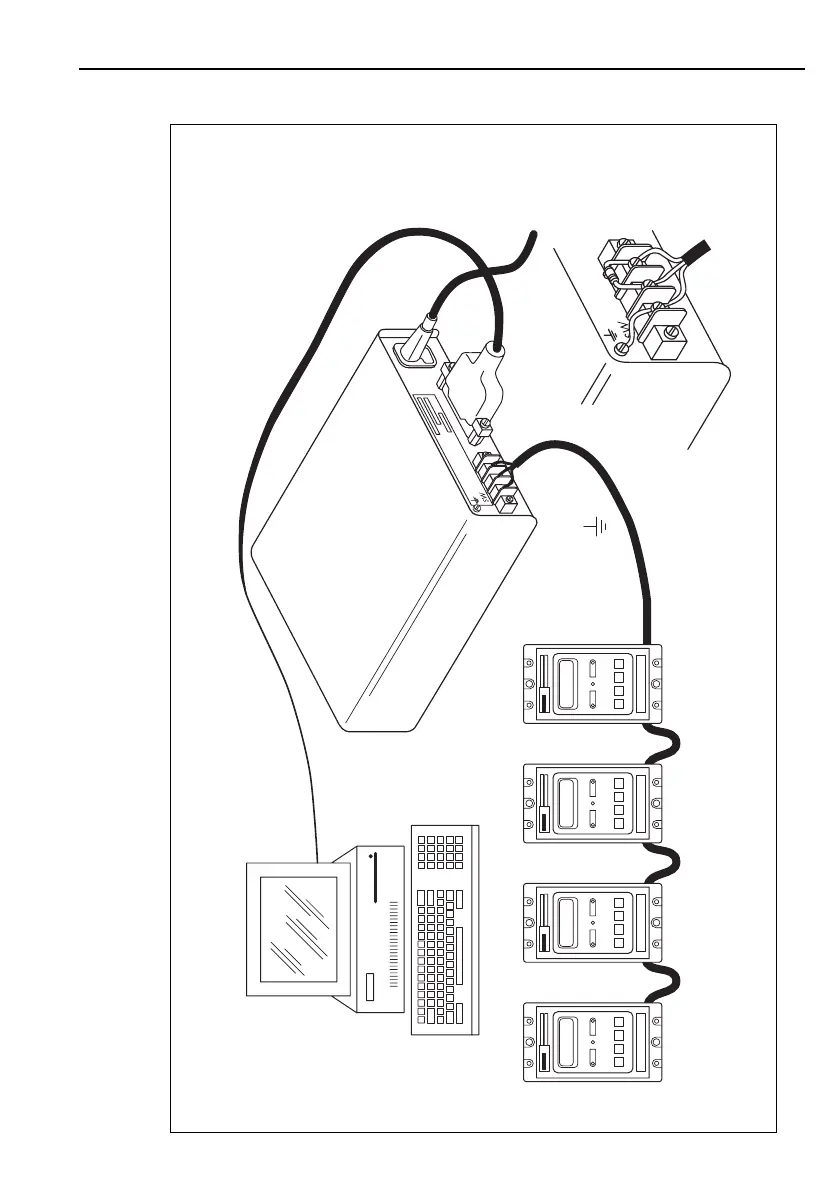

A typical application connection arrangement for the KITZ 101 is shown below:
Figure 1a: Typical application of KITZ 101 interface unit.
KBUS
1
2
KBUS
1
2
PC
K Range relays
K-Bus to IEC 870 interface (KITZ 101)
RS232 link
serial port
Mains cable
K-Bus
to terminals 1 & 2
screen to
Connection to K-Bus
Detail of earth link & external resistor when fitted
