Ducting & Exhaust Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
DE-12
2. Remove the tail pipe assembly by disconnecting the springs from the muffler at-
tached to the tail pipe.
3. The screen-type spark arrester assembly is located inside the tail pipe. It is fastened
with one (1) slotted washer-head hex screw. Find the screw on the side of the outlet
tube.
9. Return the screen assembly to the outlet tube and refasten it with the screw from
Step 4.
4. Remove the screw and save it for step 9.
5. Take off the screen-type spark arrester assembly.
6. Shake loose particles out of the screen assembly.
7. Clean the screen with a wire brush. (Soak it in oil solvent if necessary.)
8. If any breaks in the screen or weldments are discovered, replace the assembly.

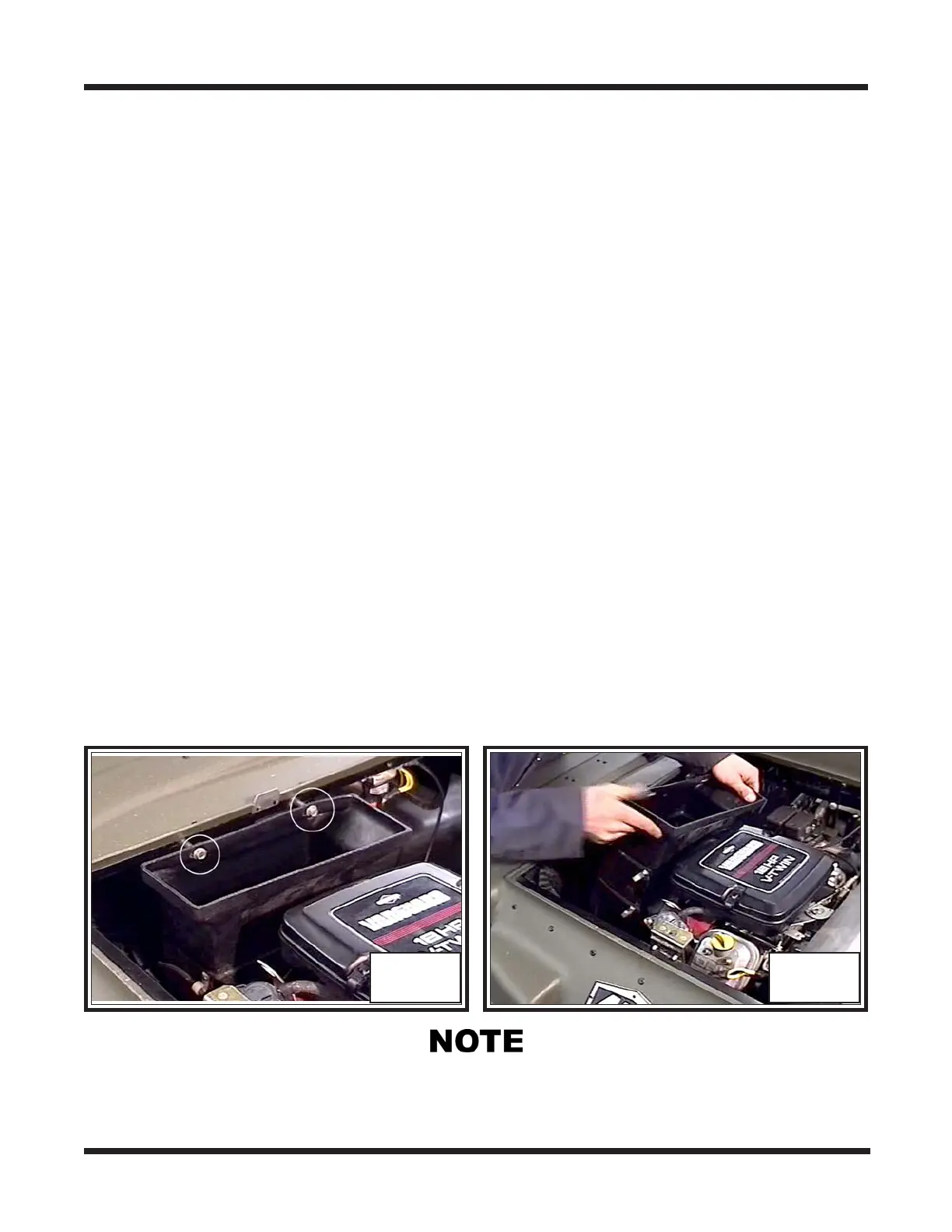

Removing the Intake Duct (Response, Bigfoot, Vanguard2 & Vanguard Models)
1. Locate the 2 fasteners securing the intake duct to the hood frame assembly and re-
move. There are 2 spacers assembled with the fasteners. Photo DE-29
3. Pull the ducting from the vehicle. Navigate it towards the front of the vehicle pulling
it up, and out. Photo DE-30
6x6 Vanguards manufactured prior to S8131 will have a spring attached at the rear of the
intake and connected to a small molly hook that is riveted to the lower body wheel well.
See the appropriate illustrated parts manual.
DE-29 DE-30
2. Undo the fuel line from the nylon clips securing it to the intake duct.
