Ducting & Exhaust Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
DE-8
2. Disconnect the 2 extension springs connecting the tailpipe to the muffler and remove
the tailpipe. Photo DE-22
3. Unfasten the muffler at the engine and remove.

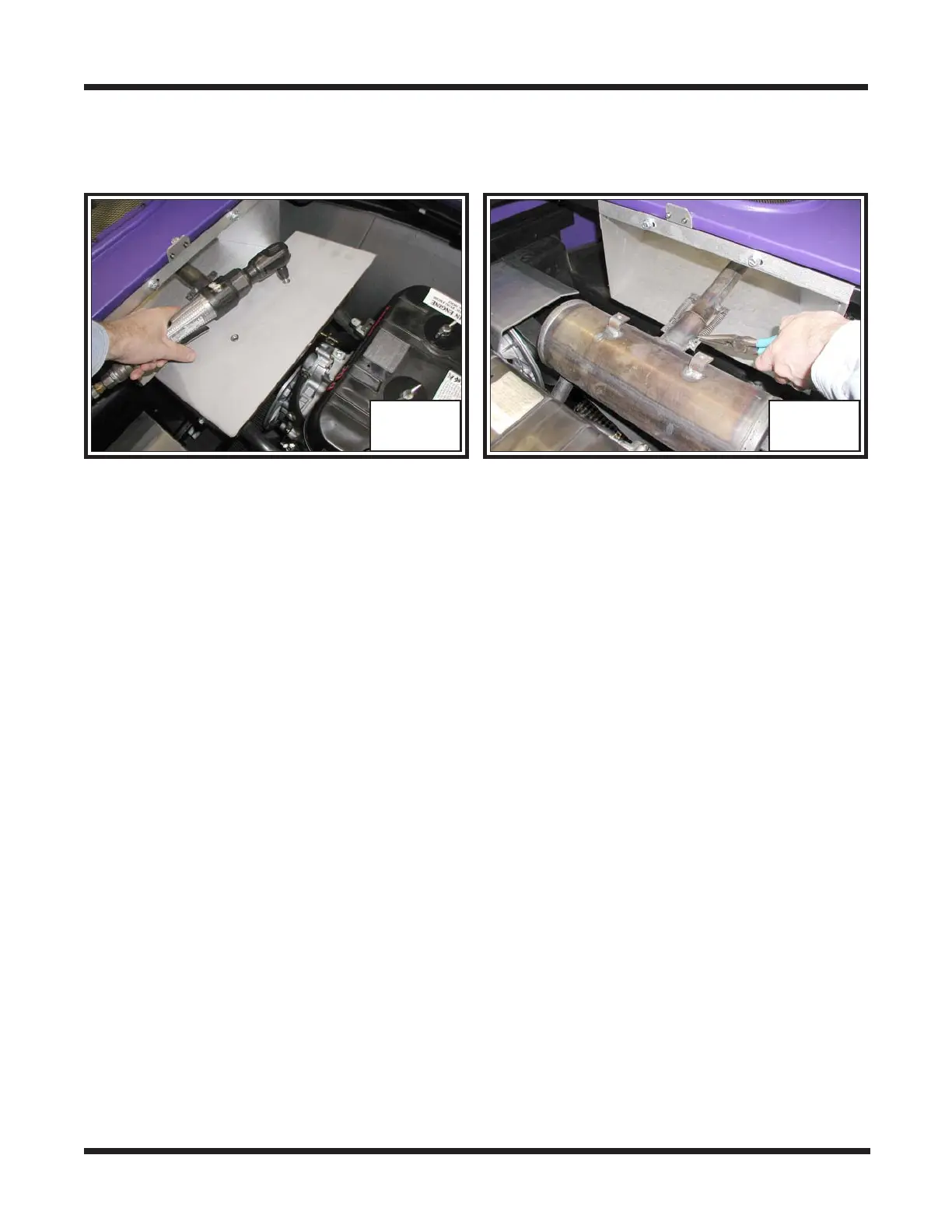

DE-21 DE-22
Installing the Muffler (Conquest Models )
1. Install the muffler to the engine exhaust manifold and torque to specifications.
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
New exhaust gaskets are recommended when ever servicing the muffler system.
2. Install the tailpipe/spark arrestor to the muffler, connecting with 2 extension springs.
3. Install the heat shield over the muffler, securing with 4 fasteners. Refer to the illus-
trated parts manual for correct hardware and orientation.
Removing the Muffler (Response, Vanguard2 & Vanguard Models)
i. Remove the 3 fasteners securing the exhaust duct cover and remove the cover. This
exhaust shroud system utilizes a duct below the muffler. See the appropriate illus-
trated parts manual for component structure on these earlier models.
On 6x6 Vanguards manufactured prior to S8131:
On vehicles manufactured from S8131, SN8138, RB12075 and prior to S13434,
N13436, R19647:
i. Remove the 3 fasteners that secure the exhaust duct cover and remove the cover.
Photo DE-23
1. Remove the exhaust duct cover.
On vehicles manufactured from S13434, N13436, and R19647:
i Remove the 4 fasteners that secure the exhaust duct cover and remove the cover.
