Argo Service Manual Ducting & Exhaust
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
DE-3
Removing the Muffler (Conquest Models)
On Conquests manufactured prior to C19672:

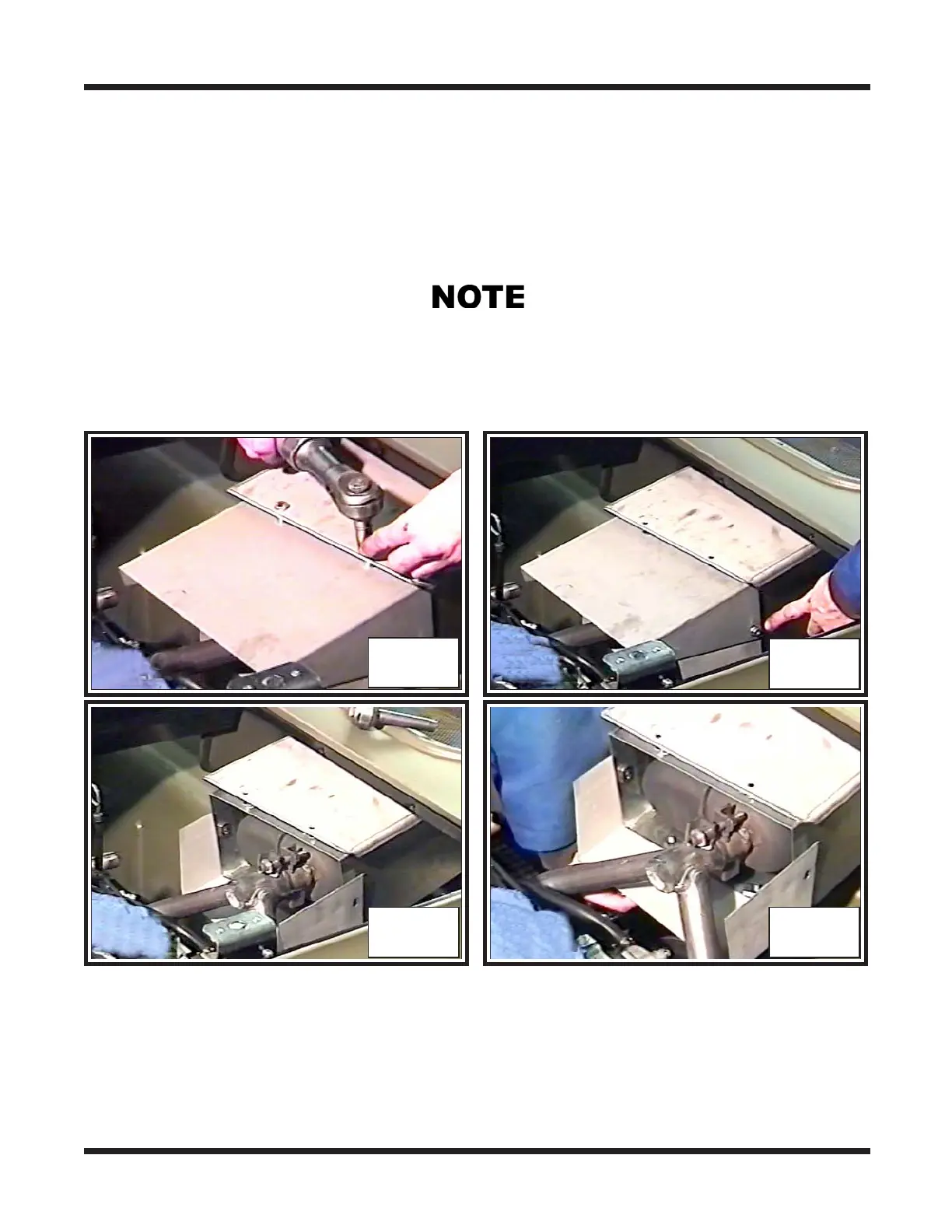

1. Remove the 2 fasteners in the top of the heat shield. Photo DE-1 Depending on the
age of the vehicle, a few earlier models utilized a fiberglass heat shield. This part is
no longer available but is fully exchangeable with the newer version.
2. Remove the 2 fasters securing the manifold cover to the muffler shield assembly and
remove the manifold cover. Photo DE-2 & 3
Collect the 2 spacers that are installed beneath each fastener
DE-1
DE-2
DE-3 DE-4
3. The lower shroud is secured by 2 more fasteners. Remove the 2 fasteners and lift the
lower shroud from the vehicle. Photo DE-4
4. Disconnect the muffler at the manifold. Photo DE-5 The muffler and exhaust mani-
fold are joined together with 2 bolts, 4 flatwashers, 2 compression springs and 2
locking style nuts. Refer to the illustration in the appropriate parts manual for a
breakdown and orientation of the hardware.
