Ducting & Exhaust Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
DE-4
DE-5 DE-6

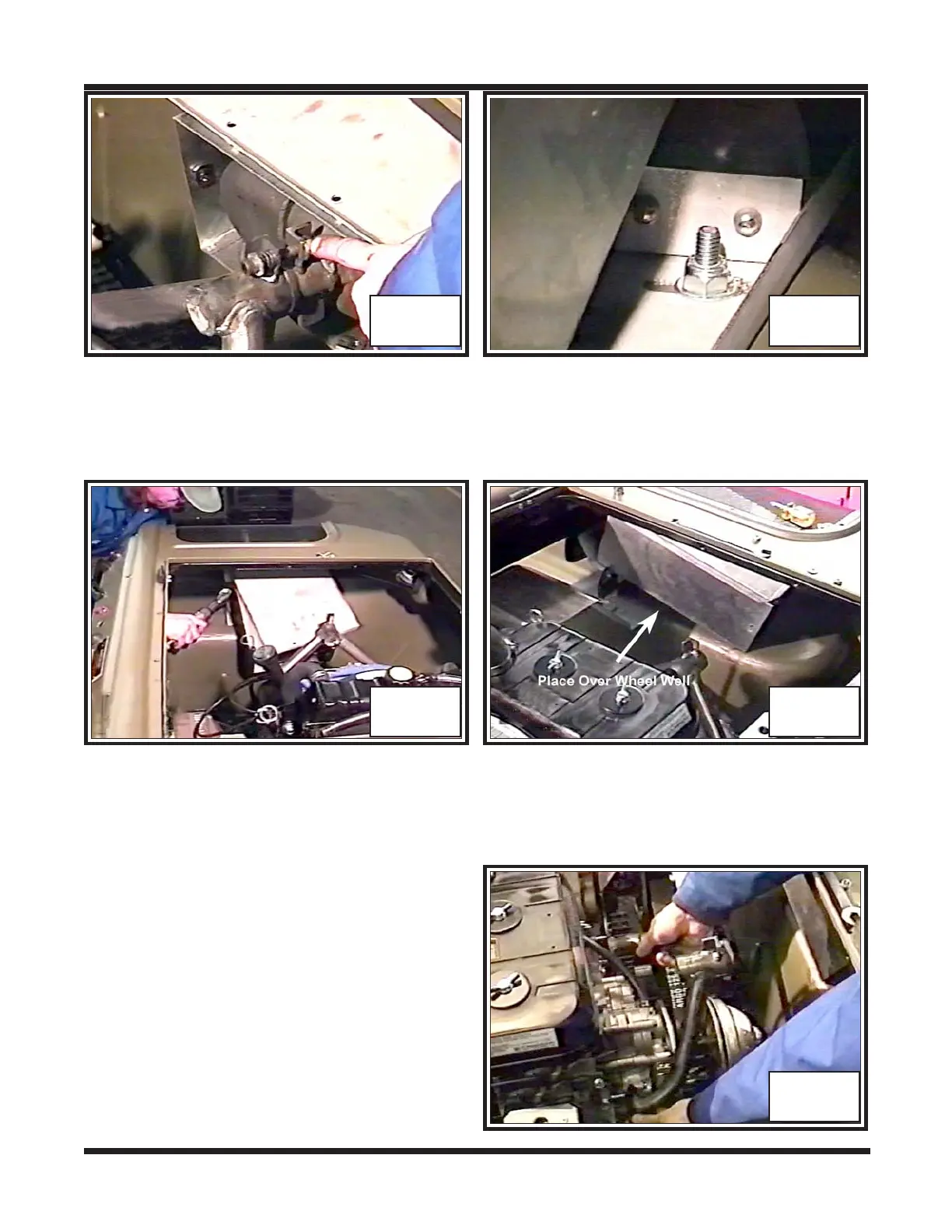

5. There are 2 fasteners securing the the entire muffler assembly to the lower body.
These are located at the lower body under the front wheel. It may prove easier to
remove the front wheel to access the fastener heads with a socket or wrench. Photo
DE-6 & 7
DE-7 DE-8
6. Pull the muffler and shroud assembly into the engine compartment area enough for
the tailpipe to clear the outside exhaust screen. Turn the assembly 90 degrees and
shove it back over the wheel well temporarly until the exhaust manifold has been
removed. Photo DE-8
7. Unbolt the exhaust manifold and re-
move it from the engine.
Photo DE-9
DE-9
8. Slide the muffler asssembly towards
the engine compartment and up and
out of the vehicle. Photo DE-10
Compress the rubber shock mounted
lower support to narrow the width of
the assembly while pulling up, and out
from the compartment.
