Argo IRO User Manual

V 01/19
30

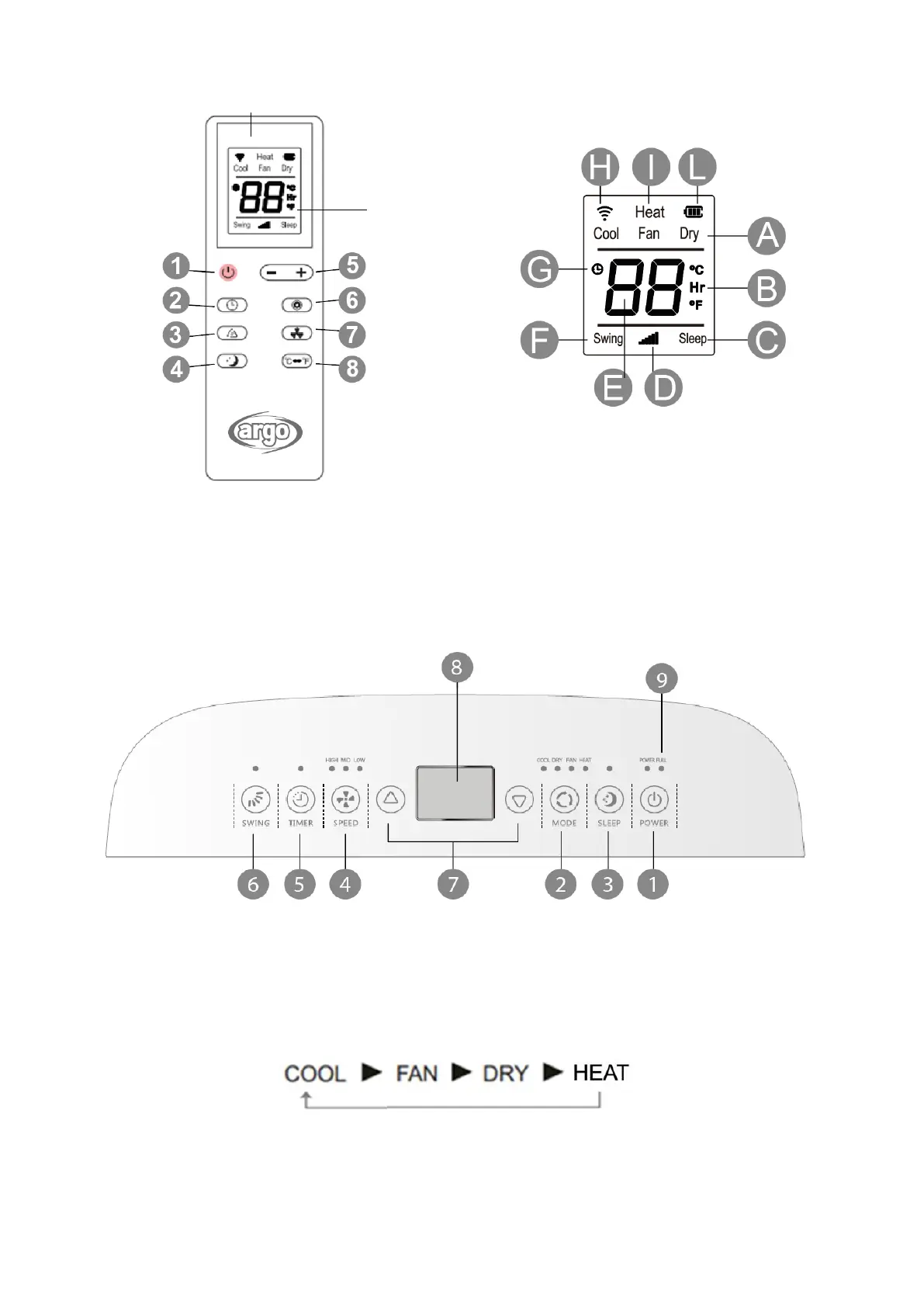

1. ON/OFF BUTTON
2. TIMER BUTTON
3. SWING BUTTON
4. SLEEP BUTTON
5. TEMPERATURE AND TIMER ADJUSTMENT
BUTTONS
6. MODE BUTTON
7. FAN BUTTON – VENTILATION SPEED
8. TASTO °C °F
A. Mode indicator: COOL, FAN, DRY
B. Temperature and time
C. Sleep on/off
D. Speed setting
E. Display timer and temperature
F. Swing on/off
G. Timer set
H. Signal transmission
I. Heating mode (available only on IRO
PLUS)
L. Battery level
(1) ON/OFFBUTTON
Press this button to switch the unit on or off.
When switched on, the appliance will start functioning based on its last settings (save function).
(2) MODE SELECTION BUTTON (MODE)
Press this button to select the various operating modes, according to the following sequence:
In the COOL mode the display lights up. In the DRY and FAN modes the display does not light up.
HEAT mode is available only on IRO PLUS model.
(3) SLEEP BUTTON (on both the remote control and portable unit)
SIGNAL
TRANSMITTER
DISPLAY

Argo IRO Specifications

General

Type	Monobloc mobile air conditioner
Cord length	1.5 m
Noise level	65 dB
Hose diameter	150 mm
Number of speeds	3
Remotely operated	Yes
Airflow (high speed)	24 m³/h
Cooling capacity (max)	10000 BTU/h
Air conditioner functions	Cooling
Cooling capacity in watts (nominal)	2720 W
Heating capacity in watts (nominal)	- W
Cooling energy efficiency (EER, W/W)	2.6
Display type	LED
Product color	White
AC input voltage	230 V
AC input frequency	50 Hz
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling)	A
Energy efficiency class (heating)	No
Hourly energy consumption (cooling)	1.1 kWh
Hourly energy consumption (heating)	- kWh

Weight and Dimensions

Depth	382 mm
Width	470 mm
Height	770 mm
Weight	28000 g
