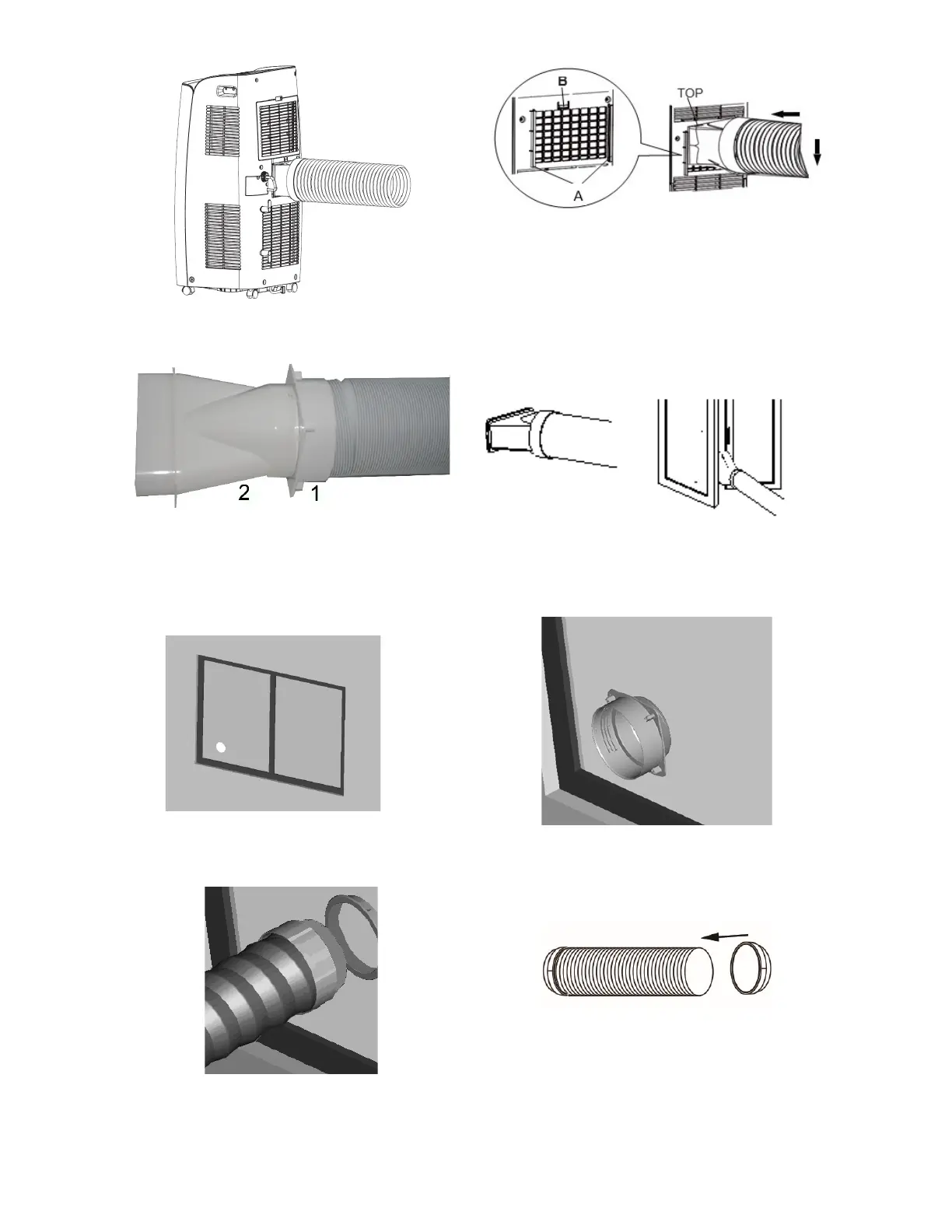

Connect the round window fitting (1) to the end of the hose
then the end fitting for the window (2), previously obtained by
joining parts A and B
Open the windows and lock one of the two leaves with the
handle.
Place the end fitting against the fixed leaf of the window,
and draw the other leaf towards it.
USE WITH WINDOW UNIT KIT
1. To make the hole in the glass it is advisable to take
the porthole kit accessory to the glazier.
2. Insert the window unit into the window.
3. Insert the round fitting into the retractable flexible pipe and
insert the latter with its round fitting into the window unit
without the plug..
4. Insert the round fitting onto the flexible pipe.
5.Insert the flat fitting onto the hose.
6. Slide the flat fitting downwards into the grooves (A) and
