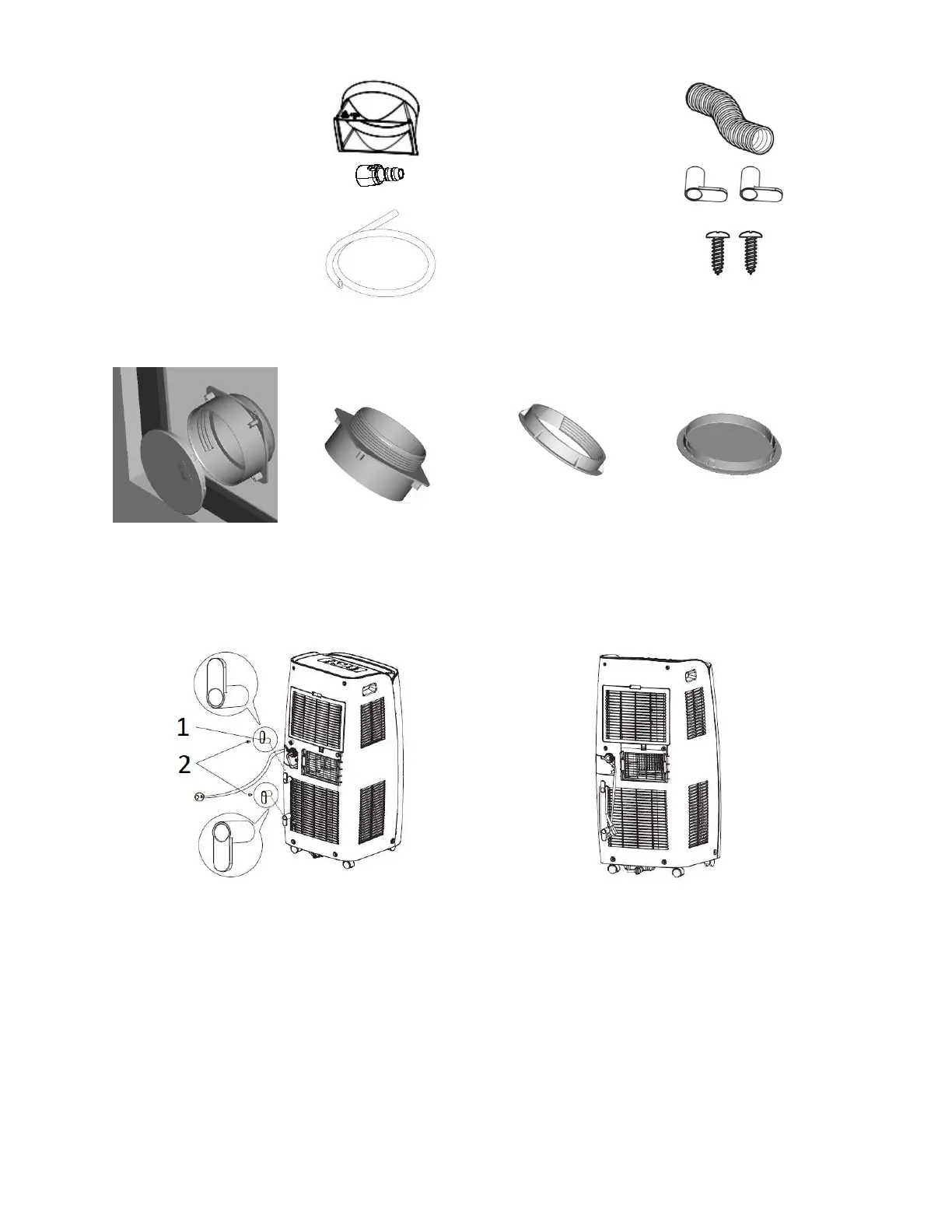

(A).
Flat fitting for positioning
between the air discharge
outlet and the hose
Hose
Drain hose
Cord winder
Drainage pipe
Screws
Window unit kit (3 pcs)
(A+B+C)
Round fitting for window unit, to be
positioned between the end of the
tube and the window unit (A)
Window unit (B) Cap (C)
Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from walls
or other nearby obstacles.
INSTALLATION OF CORD WINDER HOOKS
Install the cord winder hooks to the back of the unit using the
screws, as shown in the figure.
The hooks must be positioned facing upwards and
downwards.
When the appliance is not being used, wind the power
cord around the hooks.
Wind the cord around the hook.
USE WITH END FITTING FOR WINDOW
Connect the flat fitting to the hose, extend the hose as far as
necessary for reaching the outside and it connect to the back
of the air conditioner.
Next, slide the flat fitting downwards into the grooves (A)
and secure it with the hook (B).
The upward-facing side of the flat fitting is marked "TOP".
1. Hook
Screw
