INSTRUCTIONS TO REMOVE THE PACKAGING
1. Place the unit in the correct upright position before unpacking.
2. Cut the two packing straps.
3. Slide the carton upwards and it will release the base.
4. Grip the carry handles located on either sides of the unit and carefully lift it until it slides out of
the foam base.
5. Lift and lean the unit slightly to take out exhaust hose from unit’s bottom as in the picture.
6. Install the exhaust hose on the unit before operating the unit.

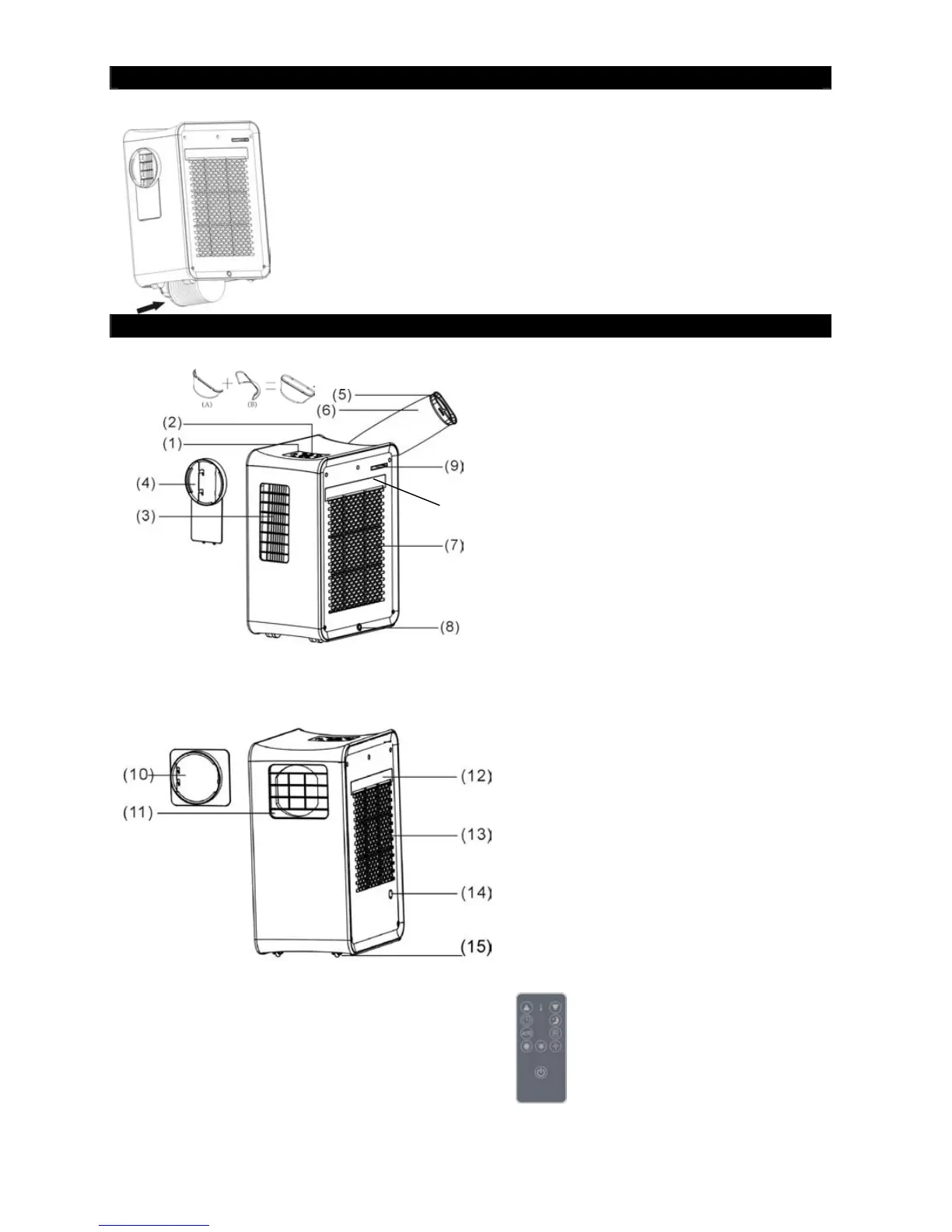

DESCRIPTION OF THE APPLIANCE
FRONT VIEW - SIDE FOR COOLING, DEHUMIDIFYING MODES
REAR VIEW - SIDE FOR HEATING MODE
Operation limits: min/max. (indoor temperature):
Cooling: 17°C D.B. - 13°C W.B./ 32°C D.B. – 23° W.B.
Heating: 10°C D.B./32 °C D.B.
Dehumidify: 10°C D.B./32°C D.B.
The heating efficiency will fall off when the outdoor temperature
is very low. If enough heating is not obtained with this air
conditioner, use another heating appliance in conjunction with
it.
1) CONTROL PANEL - FUNCTION BUTTONS
FOR OPERATION WITHOUT REMOTE
CONTROL
2) REMOTE CONTROL RECEIVER
3) COOL AIR OUTLET (COOLING OPERATION)
4) CONNECTOR FOR COLD AIR EXPULSION
HOSE (HEATING OPERATION)
5) TERMINAL CONNECTOR FOR FLEXIBLE
HOSE
6) AIR EXPULSION TUBE
7) SIDE GRILL
8) CONDENSATE DRAIN HOLE (COOLING AND
HEATING OPERATION)
9) REMOTE CONTROL COMPARTMENT
10) CONNECTOR FOR HOT AIR EXPULSION
HOSE (COOLING AND HEATING
OPERATION)
11) HOT AIR OUTLET (HEATING OPERATION)
12) AIR FILTERS
13) SIDE GRILLES
14) CONDENSATE DRAIN HOLE
(DEHUMIDIFICATION)
15) CONCEALED WHEELS
16) REMOTE CONTROL
