7
AUDIO INAUDIO IN
RR
LL

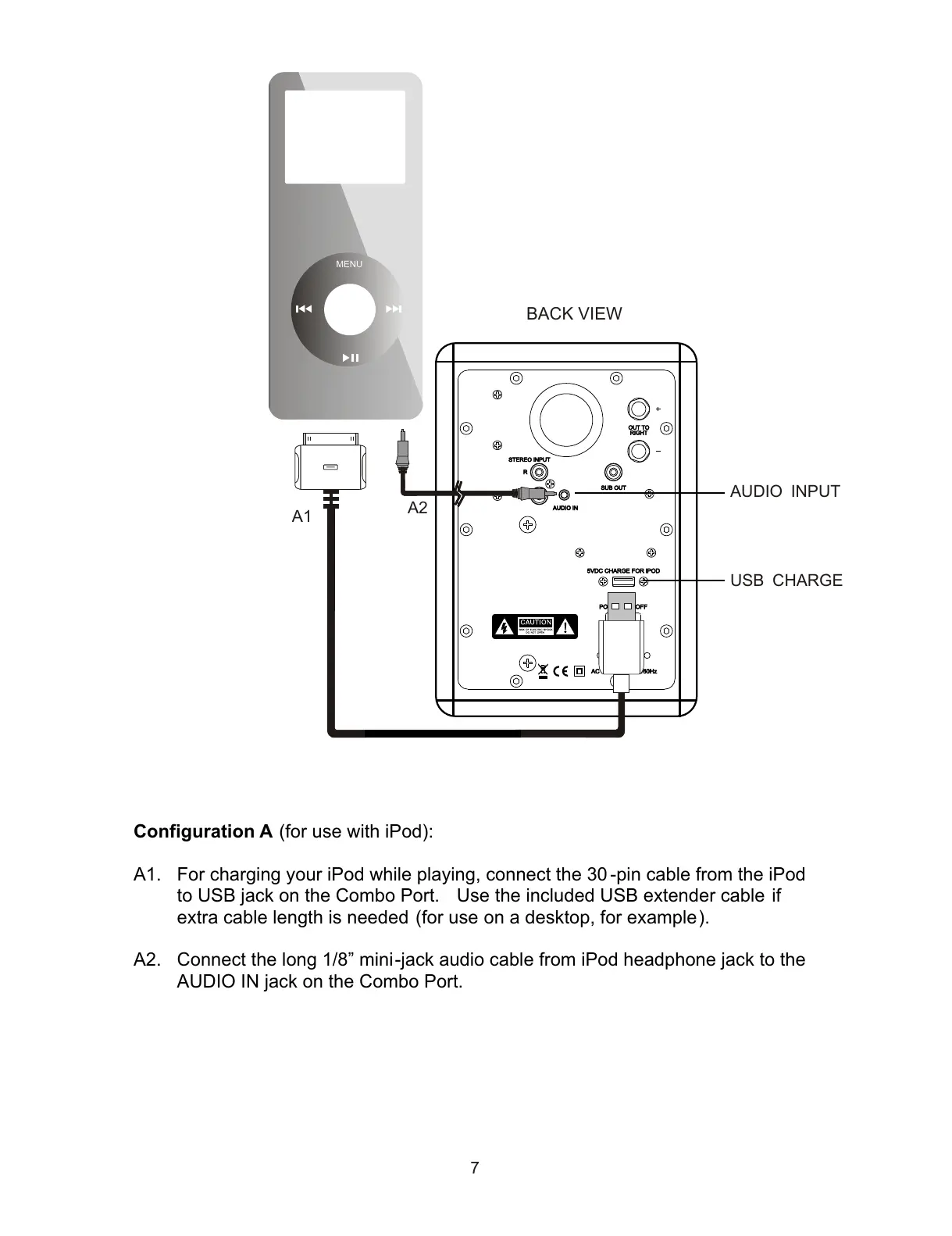

Configuration A (for use with iPod):
A1. For charging your iPod while playing, connect the 30 -pin cable from the iPod
to USB jack on the Combo Port. Use the included USB extender cable if
extra cable length is needed (for use on a desktop, for example).
A2. Connect the long 1/8” mini-jack audio cable from iPod headphone jack to the
AUDIO IN jack on the Combo Port.
MENUMENU
AUDIO INPUT
A1
A2
USB CHARGE
BACK VIEW
