F o r t e A 4 & A 5
2. Usage, controls and connections

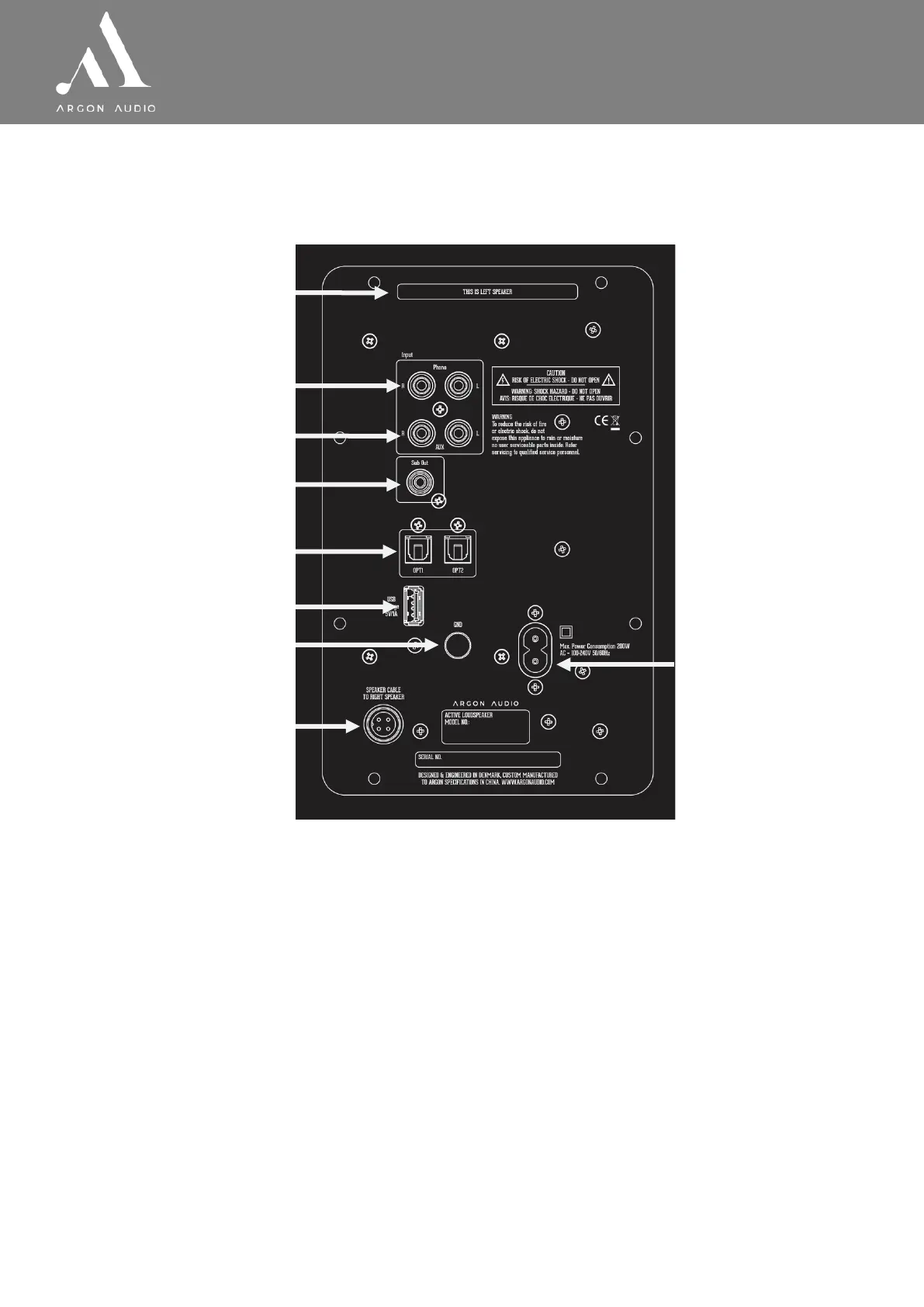

2.1 Overview of Back panel (inputs and connections)
1. Bass Reflex Port
◊ Do not cover this port and preferably keep it min. 15 cm from a wall
2. Phono (MM) for turntable only
◊ Connect a turntable, remember to connect “Ground” (⑦) as well
3. Line in for analogue sources (AUX)
◊ Connect any analogue audio source with Left Right cable
4. SUB OUT
◊ Connect a Subwoofer to this output
5. Optical/Digital 1 and 2
6. USB power
◊ Charge any 5V USB device or Connect power to a Chromecast device. (see
point 5 on page 8)
7. Ground (GND)
◊ Connection for turntable grounding
8. Speaker plug
◊ Connection cable to passive speaker
9. Power Plug
◊ Insert the power cable and connect to an electric outlet
①
②
③
④
⑦
⑥
⑤
⑧
⑨
