4.4. Screen shots
4.4.1. Tree motion logging in winds

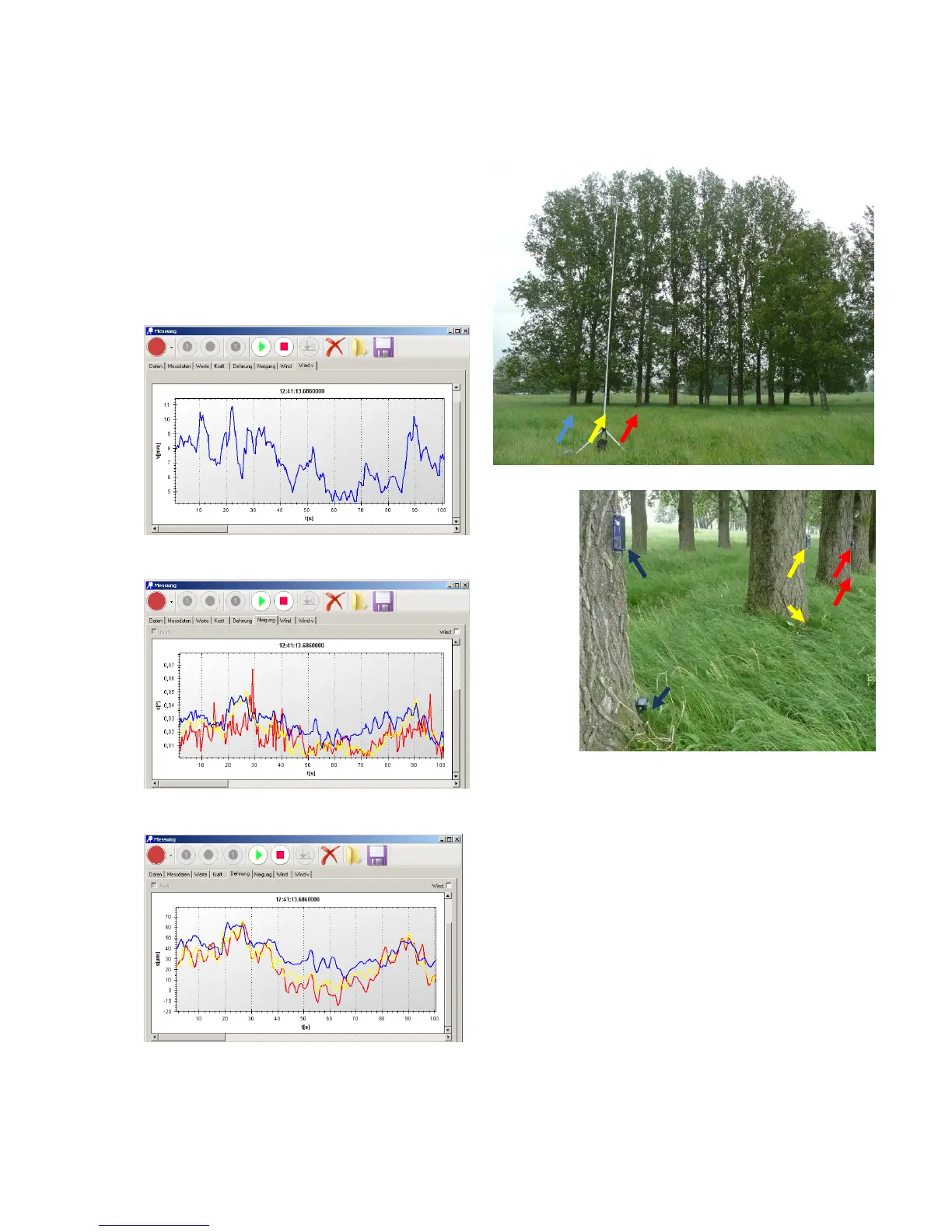

The following screen shots show the inclination
of the root plate and the deformation (strain,
compression) of the marginal fibres of three
poplar trees standing in a row.
The colour of the data-line correlates with the
colour of the arrow pointing to each of the trees.
Wind speed over time in [m/sec]
Inclination of three trees over time in grad [°] (offset vales not applied)
Compression/Strain of marginal fibres of three trees over time in [µm] (offset vales not applied)
