2.2. Elastometer
Resolution: 0,1 µm
Accuracy: 1 µm
measuring range: +/- 2 mm
Battery capacity: ~ 15 h at 20°C (radio on)
Distance between nails: 198 – 202 mm
Diameter of nails: 2 – 4 mm
Max. distance of wireless data transmission: 3 to 60 meter

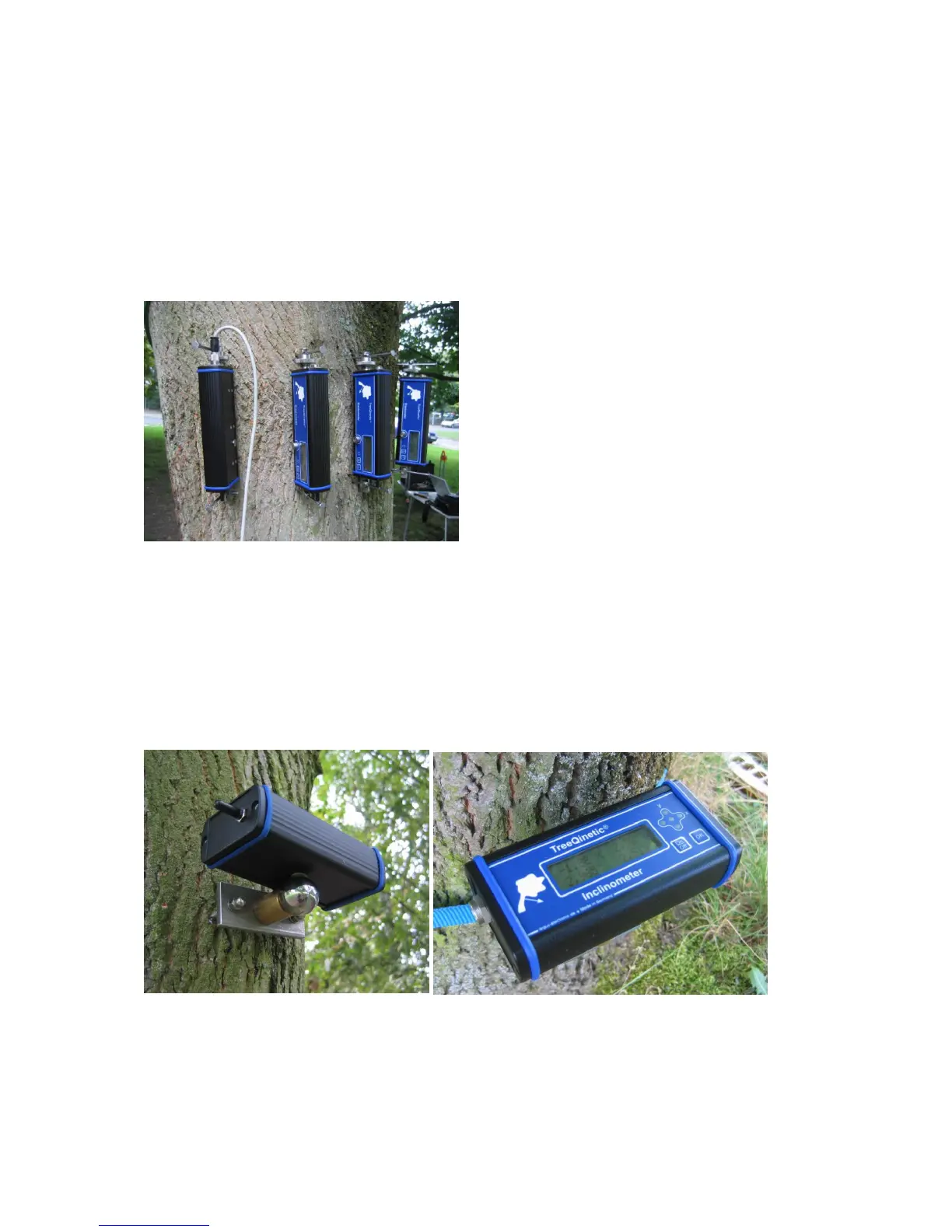

TreeQinetic Elastometer @ work.
2.3. Inclinometer
Resolution: 0,002°
Accuracy: 0,005°
measuring range: +/- 15°
Battery capacity: ~ 20 h at 20°C (radio on)
Max. distance of wireless data transmission: 3 to 60 meter
TreeQinetic Inclinometer @ work
The Inclinometers do have a temperature drift. For best results expose the inclinometers to the
ambient temperature as soon as you arrive on the site and protect it against direct sunlight. Use “set-
to-zero” function before every pull!
