8. Filling cylinder with refrigerant
Unit cylinder (12) may be filled with refrigerant by following procedures.

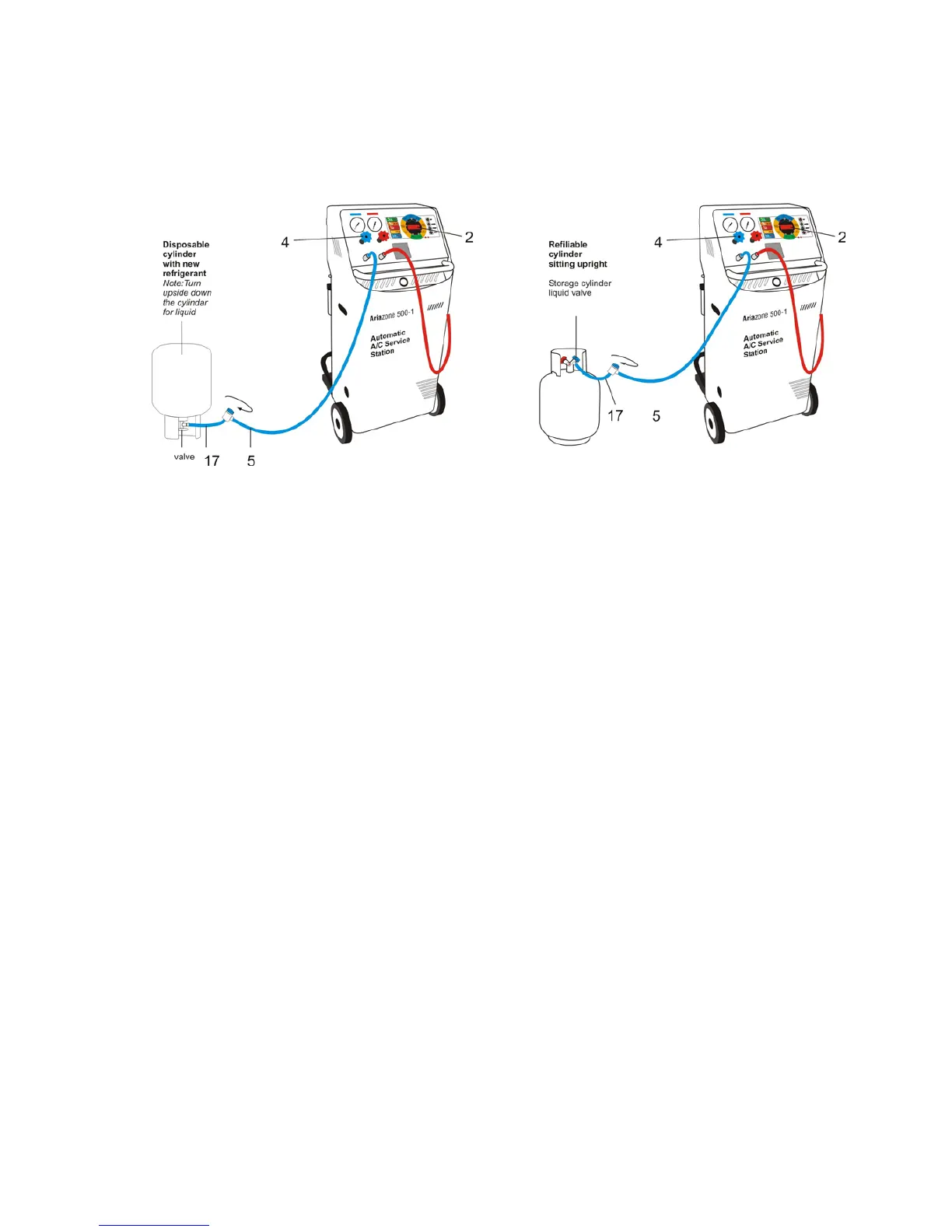

a. Using disposable cylinder
Connect the suction (blue) service hose (5) to a storage cylinder liquid valve by using the adapter
hose (17). Open liquid valve on the storage cylinder, open service hose quick coupling (5) and
hand manifold blue valve (4) .
With "UP & DOWN" keys, select the recovery function. By pressing "START" key, select amount
of refrigerant to be transferred, with the UP and DOWN key. The Ariazone unit will automatically
transfer the selected amount of refrigerant from the storage cylinder to the Ariazone cylinder (12).
When the selected amount of refrigerant is transferred, close the storage cylinder valve and allow
the Ariazone to recover the refrigerant in the service hose (5). Once the function is completed the
Ariazone will display the symbol "done" and the amount of refrigerant transferred will be displayed
in kg or lb on main display (2).
b. Using refillable cylinder
Have cylinder sitting upright, connect the suction (blue) service hose (5) to storage cylinder liquid
valve by using the refrigerant transfer hose (17) supplied, open liquid valve on storage cylinder,
open service hose quick coupling (5) and console blue hand valve (4)
Important:
a. Always keep a minimum of 2 - 3 kg in the 5001 cylinder (12).
b. Do not allow the cylinder to be filled above 80% capacity.
c. Never transport an overfilled cylinder. Refrigerant expands when heated and
may cause the pressure relief valve to open and exhaust refrigerant in to the
atmosphere or the cylinder may rupture.
