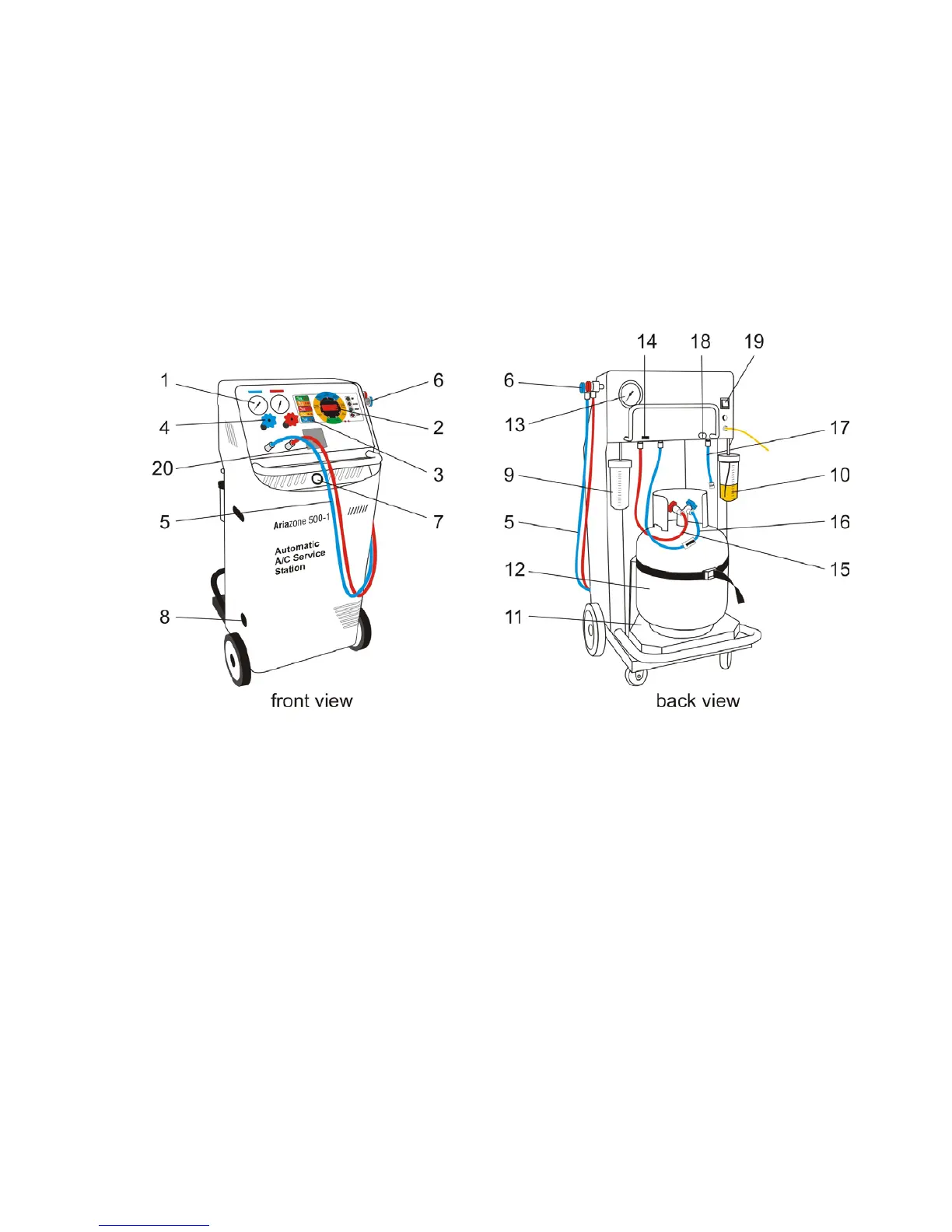

5. Ariazone 5001 FA Main Parts & Features
1. Analog gauges - Two large analogue gauges display suction and discharge pressures, which
are mounted on the front panel for easy viewing by the operator.
Pressures are displayed in Bar & PSI and temperatures in degrees Celsius.
2. Display - A three digit led display indicates refrigerant weight in kg. or lb., depending
upon the user selection. A heavy-duty load cell located under the cylinder platform is
used to perform these measurements.
Led enunciators above and below the numeric display inform the operator of the
units of display and whether the display is indicating the weight of refrigerant currently
within the cylinder, the amount of refrigerant being charged or the amount of
refrigerant recovered is indicated in increments of .02g (.007oz).
3. Mode Enunciator - Led group and membrane switches. Three pairs of leds indicate the mode
and status of the unit. These are used in conjunction with the adjacent membrane switches to
select the Ariazone functions. Further, once the mode is in operation the pattern in which the
Led’s flash, indicate the activity of the system. These can be viewed from several metres
away.
4. Hand valves - The console hand manifold valves allow the operator to control the flow of the
refrigerant (if desired).
5. Discharge & Suction Service Hoses - A pair of 1.8m (72") hoses are connected to the
