6. Preparing the machine for use
Perform the following steps to prepare the Ariazone System for use.
1. Remove the unit packaging.

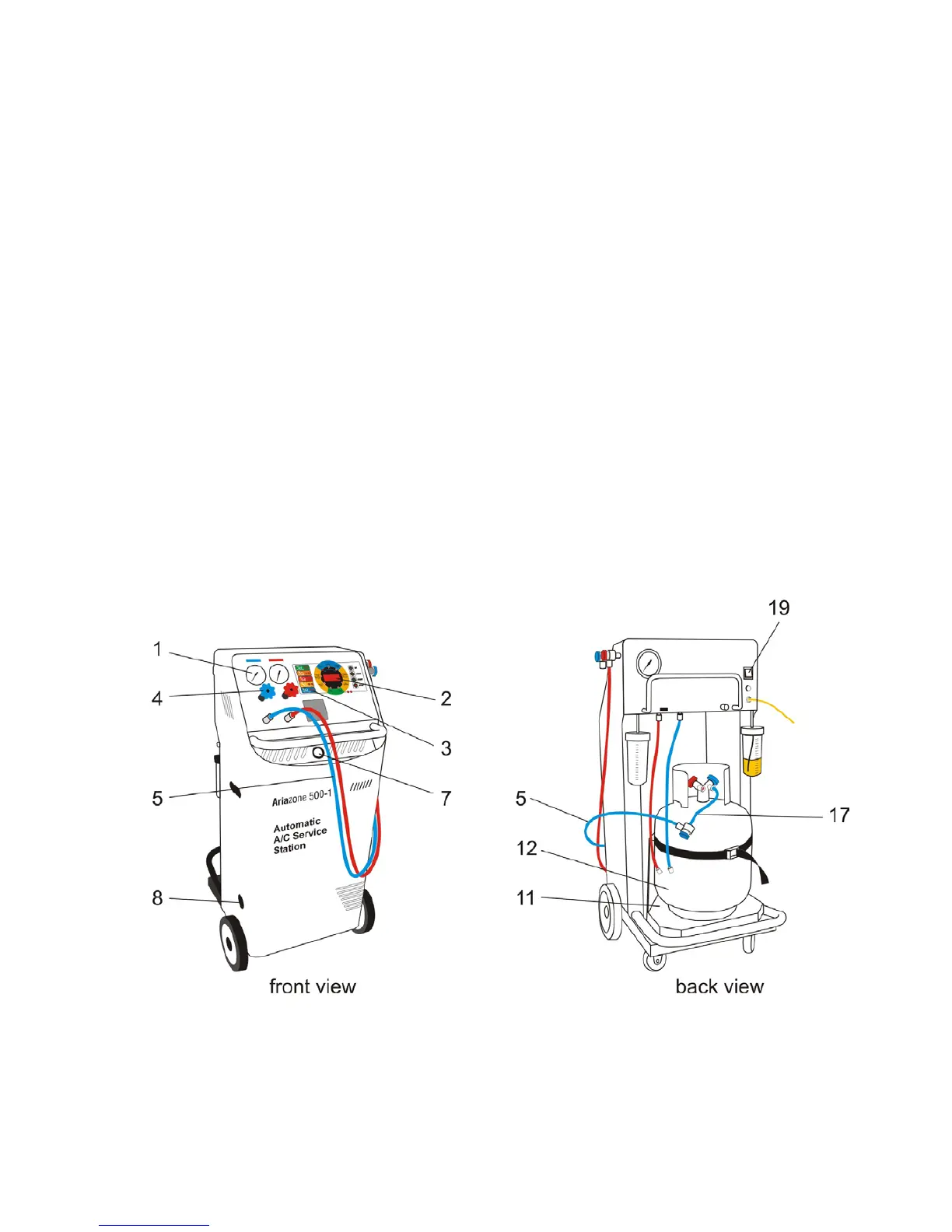

2. Check to ensure that all of the accessory components are present:
- Cylinder (12) (if ordered)
- Adapter hose (17)
- Cylinder hoses (15) and (16)
- Service hoses (5)
- User's manual
- Cylinder strap
3. Place the cylinder (12) on the Ariazone platform (11) and secure it with the strap provided.
4. Check the vacuum pump oil level (8). The oil level should be slightly above the line on the
sight glass when the pump is not running.
5. Power up (19) the unit. The unit will perform a lamp test, whereby all led displays are
