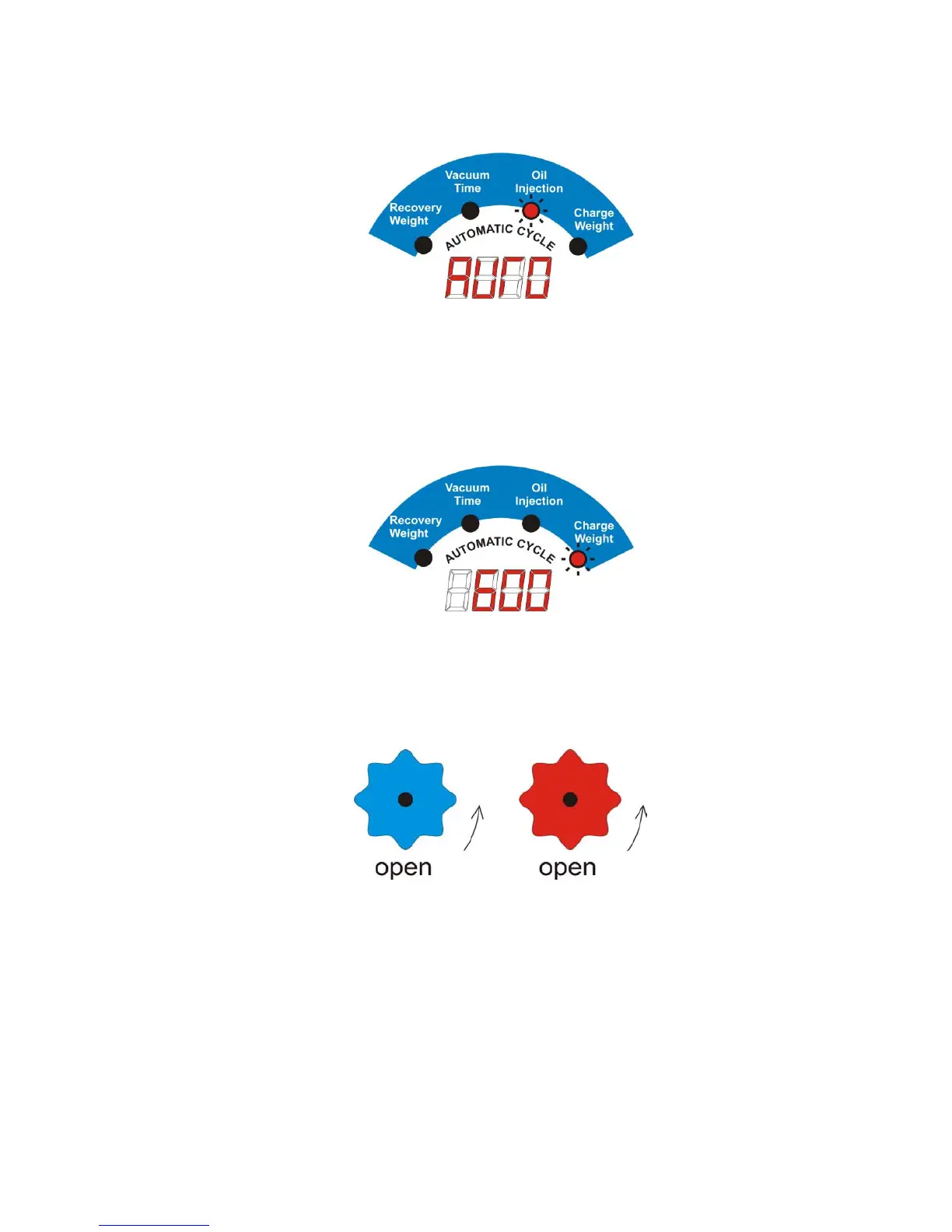

Fig3.
Fig 4, select the amount of refrigerant by 'UP' key to increase or 'DOWN' key to decrease the
value. Once the desired amount has been selected press the 'START' key.
Fig4.
Note: Open the hand manifold valves (4) on the console to allow the flow of the
refrigerant from the a/c system before making the above selection.
The unit will perform all tasks in one automatic cycle and will print reports at the end of each
single operation.
