ARICO Technology Co., Ltd. -13-

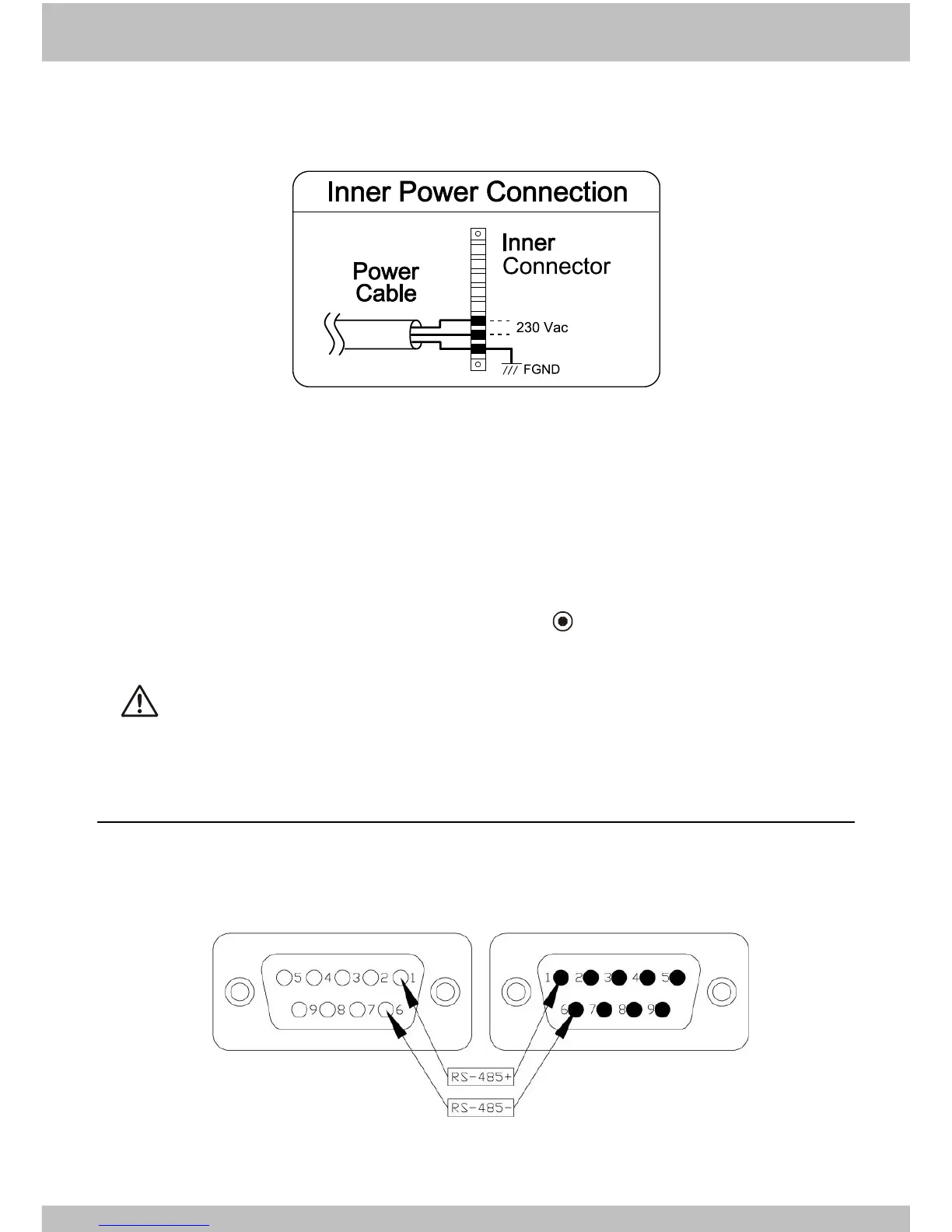

The following power wiring only for T5A01.
Caution
1. Before operating, check connection (“y” or “
△
”) and its voltage.
2. All instruments must be used in accordance with the specification to prevent
fire or damage to instrument and equipment.
3. Make sure the ac power input is switched off before maintenance.
Note: power type A and B differ with regard to “ ” connections.
The FGND must be connected with earth ground.
2-4-4 Communication port
