Ariens 921 Series User Manual

GB - 8
PACKAGE CONTENTS
ASSEMBLY
Tools Required:
•Pliers
• Open-End Wrenches: 3/8, 7/16, 1/2,
9/16 in. and/or Adjustable Wrench
• Tire Gauge
Unfold Handlebar
(Figure 5)
1. Remove the lower and loosen the upper
hardware on the handlebar assembly.
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the:
921013, 017, 018, 020, 023 - second
reverse position.
921019, 022 - fastest forward position.
4. Rotate the handlebars into operating
position.
IMPORTANT: Be careful not to damage cable
spring hooks when rotating handlebars
upward.
5. Install and tighten all hardware on the
handlebar assembly and shift rod.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Dropping or tipping
over boxed unit could result in
personal injury or damage to unit.

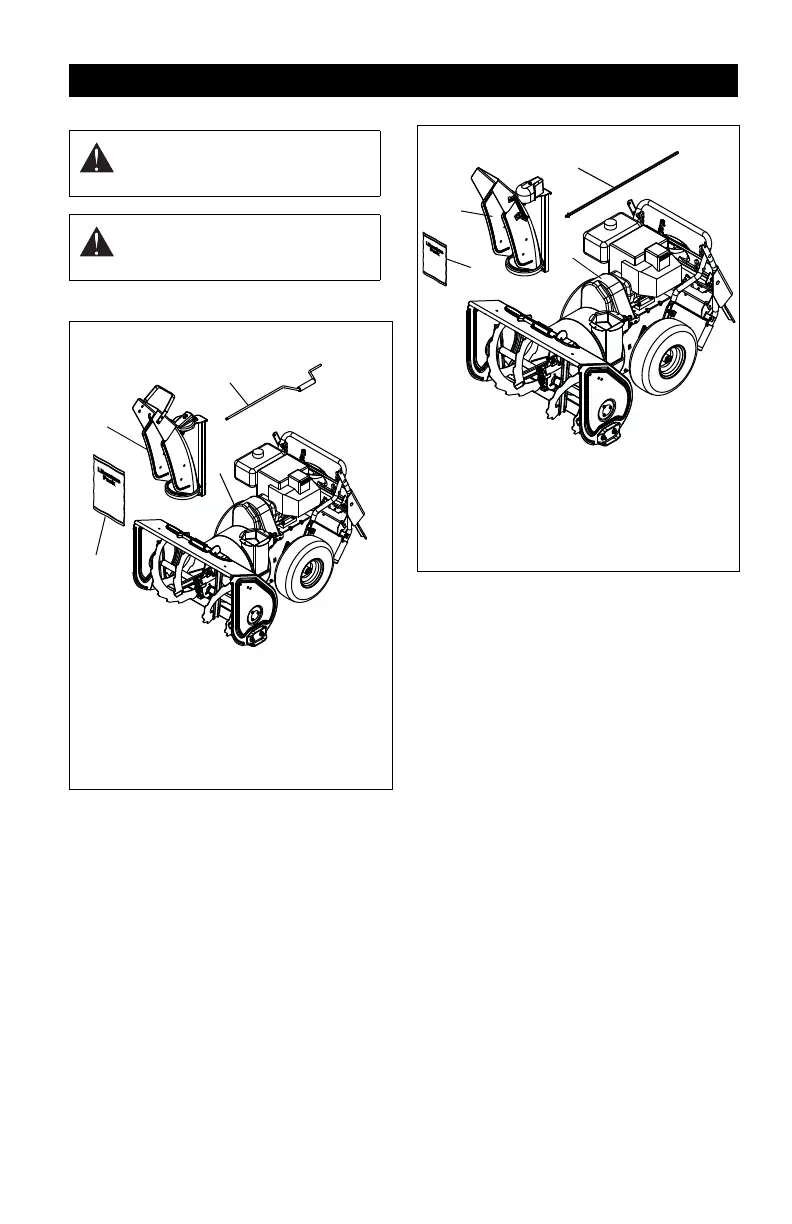

Figure 3
1. Sno-Thro
Unit
2. Discharge
Chute
3. Chute Crank
4. Literature
Pack with
Extra Shear
Bolts
5. Fuel Cap
(921020)
1
2
4, 5
3
OS7021
921013, 019, 020, 022, 023
Figure 4
1. Sno-Thro
Unit
2. Discharge
Chute
3. Chute Rod
4. Literature
Pack with
Extra Shear
Bolts
1
2
4
3
OS7019
921017, 018
