Ariens Edge 52 - Service Parts and Preparation

EN - 15
SERVICE PARTS
See your Ariens dealer to purchase service
parts for your unit.
SERVICE POSITION
Before starting any of the following
maintenance procedures:
1. Park unit on a flat, level surface.
2. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
3. Engage parking brake.
4. Chock wheels. Strap and clamp unit onto
lift, if used.
5. Disconnect spark plug wires.
6. Place steering levers in neutral position
and rotate outward.
7. Rotate seat forward. See Figure 14.
IMPORTANT: Reconnect spark plug wires
after maintenance.
Description Qty. Part No.
HA Raw Laminated Belt –
Hydraulic Drive
1 07200010
Front Wheel 2 07101127
Mower Blade – 34" 2 03971900
Mower Blade – 42" 2 04965000
Mower Blade – 52" 3 04771200
Mower Belt – 34" 1 07200116
Mower Belt – 42" 1 07226700
Mower Belt – 52" 1 07241600
Mulching Blade – 34" 2 03797300
Mulching Blade – 42" 2 05027400
Mulching Blade – 52" 3 04794400
Spindle Assembly – 34" 2 51519500
Spindle Assembly – 42" 2 51530700
Spindle Assembly – 52" 3 51528000
Fuel Filter (Models 915281,
915283)
1 00682500
Fuel Filter (Model 915285) 1 21538400
Engine Oil Filter
(Models 915281, 915283)
1 21573600
Engine Oil Filter
(Model 915285)
1 21548100
Air Filter
(Models 915281, 915283)
1 21557300
Air Filter (Model 915285) 1 21548000
Muffler Gasket
(Models 915281, 915283)
1 05600519
Muffler Gasket
(Model 915285)
1 M136651
Fuel Stabilizer – 118 ml
(4 oz.)
AR 04730400

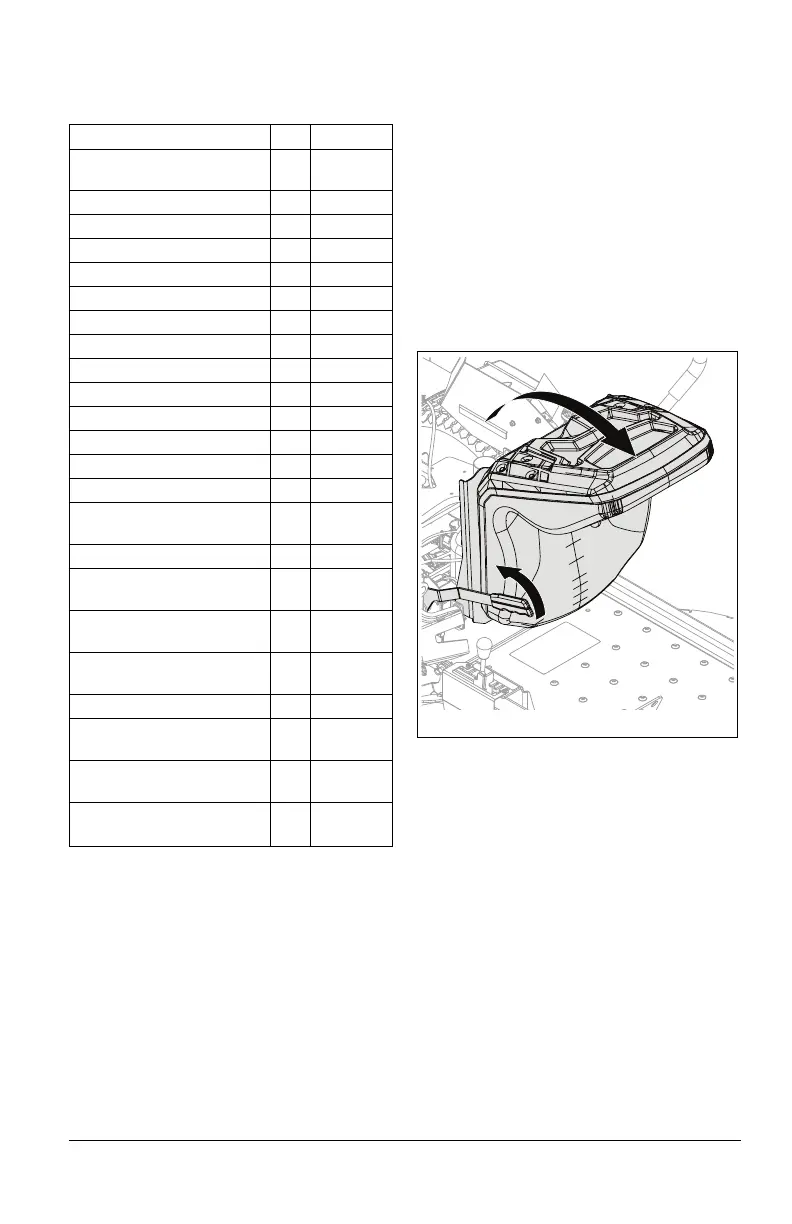

Figure 14
